[DAIWA] Genuine Spare Parts for 23 AIRITY LT3000-H Product code: 00061139 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.77 - US$101.64 [Regular Price: US$1.10 - US$145.20]
Prices vary according to options.
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.
- Genuine Spool Purchase
* If you just want the genuine spool (No.9 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/5905

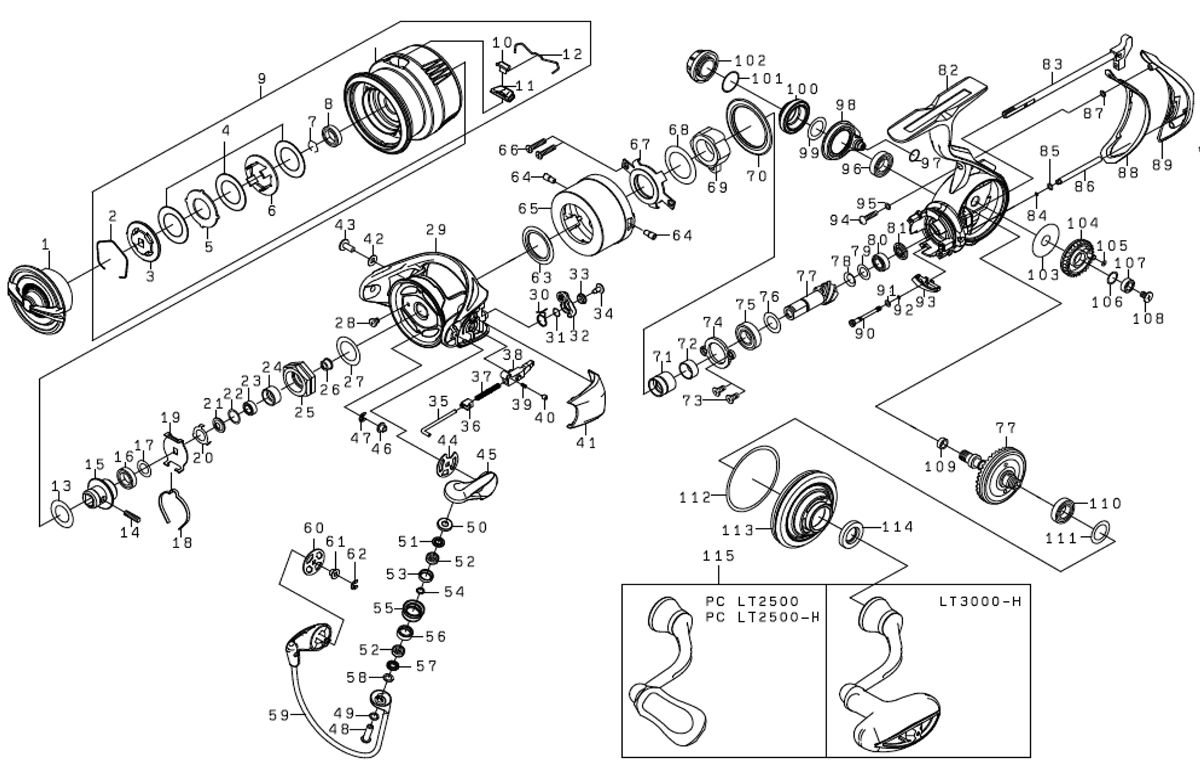

Reel Part's Schematic Diagram |
No. | Part Name | Part Code | Price (USD) |
1 | DRAG KNOBS | 139785 | 30.80 |
2 | DRAG RINGS | 185227 | 2.20 |
3 | DRAG METAL (A) | 142169 | 6.60 |
4 | DRAG W SET (3 piece) | 144274 | 19.80 |
5 | DRAG LIP W | 143090 | 1.10 |
6 | DRAG METAL (B) | 142164 | 2.20 |
7 | SPOOL BEARING RING | 185236 | 2.20 |
8 | SPOOL BALL BEARING | 10E367 | 15.40 |
9 | SPOOL (2-12) | 128F12 | 145.20 |
10 | LINE STOPPER | 177080 | 2.20 |
11 | LINE STOPPER PLATE | 160A54 | 2.20 |
12 | LINE STOPPER SPRING | 133996 | 2.20 |
13 | SPOOL METAL W | 190A35 | 1.10 |
14 | SPOOL METAL SC | 10AA03 | 2.20 |
15 | SPOOL METAL | 132133 | 9.90 |
16 | SPOOL METAL COLLAR | 110925 | 2.20 |
17 | SPOOL W | 190A34 | 1.10 |
18 | CLICKLEAF SP | 133857 | 2.20 |
19 | CLICK HOLDER | 116819 | 2.20 |
20 | ROTOR NUT PLATE | 160455 | 2.20 |
21 | ROTOR NUT PACKING | 185235 | 2.20 |
22 | ROTOR NUT BEARING W | 190429 | 1.10 |
23 | ROTOR NUT BALL BEARING LINK | 10E378 | 15.40 |
24 | ROTOR NUT BEARING COLLAR | 110A48 | 4.40 |
25 | ROTOR NUT | 140328 | 8.80 |
26 | ROTOR NUT COLLAR | 110A54 | 3.30 |
27 | ROTOR NUT W | 190625 | 1.10 |
28 | ROTOR NUT SC | 10A748 | 2.20 |
29 | ROTOR *Cannot be ordered | 188B65 | 72.60 |
30 | KICK LEVER SP | 133A91 | 2.20 |
31 | KICK LEVER W | 190C05 | 1.10 |
32 | KICK LEVER | 111196 | 8.80 |
33 | KICK LEVER COLLAR | 110B90 | 2.20 |
34 | KICK LEVER SC | 10A046 | 2.20 |
35 | ARM LEVER SHAFT | 122171 | 2.20 |
36 | ARM LEVER SHAFT COLLAR | 110B96 | 3.30 |
37 | ARM LEVER SP | 133A89 | 2.20 |
38 | ARM LEVER SHAFT HOLDER | 110B93 | 2.20 |
39 | ARM LEVER SHAFT HOLDER SP | 133A90 | 2.20 |
40 | ARM LEVER SHAFT HOLDER PIN | 156257 | 2.20 |
41 | ARM LEVER COVER | 108B05 | 7.70 |
42 | ARM LEVER COVER SC/W | 190644 | 1.10 |
43 | ARM LEVER COVER SC | 10AB66 | 2.20 |
44 | ARM LEVER PLATE | 160D10 | 2.20 |
45 | ARM LEVER *Cannot be ordered | 101479 | 15.40 |
46 | ARM LEVER COLLAR | 110B89 | 2.20 |
47 | ARM LEVER RETAINER | 10F014 | 2.20 |
48 | ARM LEVER SC | 10AB65 | 3.30 |
49 | ARM LEVER SC・W | 190C03 | 1.10 |
50 | ROLLER COLLAR (A) | 110A47 | 2.20 |
51 | ROLLER MAG COLLAR (A) *Cannot be ordered | 191072 | 12.10 |
52 | ROLLER BALL BEARING | 10E400 | 15.40 |
53 | ROLLER COLLAR (B) | 191069 | 3.30 |
54 | ROLLER COLLAR (C) | 110119 | 2.20 |
55 | LINE ROLLER *Cannot be ordered | 179169 | 8.80 |
56 | ROLLER COLLAR (D) | 191076 | 4.40 |
57 | ROLLER MAG COLLAR (B) *Cannot be ordered | 191071 | 12.10 |
58 | ROLLER W | 190109 | 1.10 |
59 | BAIL *Cannot be ordered | 164951 | 72.60 |
60 | BAIL HOLDER PLATE | 160D11 | 2.20 |
61 | BALE HOLDER COLLAR | 110B89 | 2.20 |
62 | BAIL HOLDER RETAINER | 10F014 | 2.20 |
63 | STOPPER LEVER PACKING (A) | 185234 | 2.20 |
64 | STOPPER LEVER SC | 10AA56 | 2.20 |
65 | STOPPER LEVER *Cannot be ordered | 196436 | 12.10 |
66 | MAGSHIELD PLATE SC | 10AB26 | 2.20 |
67 | MAG SHIELD PLATE *Cannot be ordered | 114125 | 23.10 |
68 | ONE-WAY CLUTCH W | 190945 | 1.10 |
69 | ONE-WAY CLUTCH *Cannot be ordered | 114124 | 26.40 |
70 | STOPPER LEVER PACKING (B) | 185232 | 2.20 |
71 | CLUTCH RING *Cannot be ordered | 110A38 | 8.80 |
72 | CLUTCH RING COLLAR | 110A45 | 2.20 |
73 | PINION BEARING PLATE SC | 10AB24 | 2.20 |
74 | PINION BEARING PLATE | 182278 | 2.20 |
75 | PINION BALL BEARING (A) | 10E327 | 15.40 |
76 | PINION BEARING (A) W | 190137 | 1.10 |
77 | PINION + DRIVE GEAR SET *Cannot be ordered | 138D30 | 77.00 |
78 | PINION BEARING (B) SP・W | 190A79 | 1.10 |
79 | PINION BEARING (B) W | 193014 | 1.10 |
80 | PINION BALL BEARING (B) | 10E356 | 15.40 |
81 | PINION COLLAR *Cannot be ordered | 110A43 | 3.30 |
82 | BODY *Cannot be ordered | 166C16 | 114.40 |
83 | MAIN SHAFT *Cannot be ordered | 171541 | 36.30 |
84 | OSCILLATING POST O-RING | 10J068 | 1.10 |
85 | OSCILLATING POST W | 190A41 | 1.10 |
86 | OSCILLATING POST | 155559 | 2.20 |
87 | REAR CAP W | 190A40 | 1.10 |
88 | REAR CAP PACKING | 185230 | 3.30 |
89 | REAR CAP *Cannot be ordered | 116888 | 15.40 |
90 | REAR CAP SC *Cannot be ordered | 10AB36 | 3.30 |
91 | SC W REAR CAP | 190A48 | 1.10 |
92 | SC LEAR CAP O-RING | 10J169 | 1.10 |
93 | BAIL KICK COLLAR | 110A44 | 2.20 |
94 | LAYER CAP SC | 10AB25 | 2.20 |
95 | SC WEAR CAP SC | 190669 | 1.10 |
96 | DRIVE BALL BEARING (A) | 10E326 | 15.40 |
97 | SET PLATE O-RING | 10J168 | 1.10 |
98 | SET PLATE *Cannot be ordered | 137343 | 30.80 |
99 | DRIVE BEARING (A) W | 190A46 | 1.10 |
100 | DRIVE BEARING (A) COVER *Cannot be ordered | 168C53 | 24.20 |
101 | HANDLE CAP O-RING | 10J076 | 1.10 |
102 | HANDLE CAP | 151236 | 6.60 |
103 | OSCILLATING GEAR W | 190A47 | 1.10 |
104 | OSCILLATING GEAR *Cannot be ordered | 106161 | 9.90 |
105 | OSCILLATING GEAR O-RING | 10J078 | 1.10 |
106 | OSCILLATING GEAR BEARING W | 190854 | 1.10 |
107 | OSCILLATING GEAR BALL BEARING | 10E401 | 15.40 |
108 | OSCILLATING GEAR SC | 10A876 | 2.20 |
109 | DRIVE GEAR BEARING | 185231 | 2.20 |
110 | DRIVE BALL BEARING (B) | 10E325 | 15.40 |
111 | DRIVE BALL BEARING (B) W | 190752 | 1.10 |
112 | ENGINE PLATE O-RING | 10J167 | 1.10 |
113 | ENGINE PLATE *Cannot be ordered | 168C50 | 48.40 |
114 | HANDLE PACKING | 185189 | 3.30 |
115 | HANDLE | 1H2C65 | 106.70 |
200 | HANDLE KNOB SP/W | 190983 | 1.10 |
201 | HANDLE KNOB W | 190196 | 1.10 |
202 | HANDLE KNOB BALL BEARING | 10E313 | 15.40 |
203 | HANDLE KNOB | 1H1704 | 24.20 |
204 | HANDLE KNOB SC | 10A333 | 2.20 |
205 | HANDLE KNOB CAP | 116746 | 6.60 |
