[DAIWA] Genuine Spare Parts for 15 EXIST 2003C Product code: 00055611 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 15 EXIST 2003C Product code: 00055611 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 - US$116.16 [Regular Price: US$1.10 - US$193.60]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

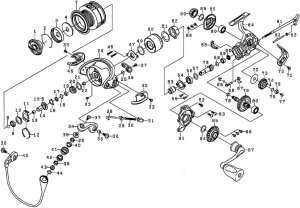

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOBS *Cannot be ordered 139684 27.50
2 DRAG RINGS 185061 2.20
3 DRAG RATCHET 180157 7.70
4 DRAG W (1 piece) 144189 6.60
7 SPOOL (2-7) 128884 193.60
8 SPOOL METAL RING 185116 2.20
9 SPOOL METAL BALL BEARING 10E326 15.40
10 SPOOL W 190976 1.10
11 CLICK HOLDER 116512 2.20
12 CLICK LEAF SP 133857 2.20
13 SPOOL METAL NUT 140312 3.30
14 SPOOL METAL 132088 6.60
15 SPOOL METAL PIN 156139 2.20
16 ROTOR NUT PLATE 160455 2.20
17 ROTOR NUT PACKING 185157 2.20
18 ROTOR NUT BEARING W 190913 1.10
19 ROTOR NUT BALL BEARING 10E351 15.40
20 ROTOR NUT 140271 4.40
21 ROTOR NUT W 190322 1.10
22 ROTOR NUT BEARING COLLAR 110966 3.30
23 ROTOR NUT SC 10A748 2.20
24 ROTOR *Cannot be ordered 188102 47.30
25 KICK LEVER SP 133858 2.20
26 KICK LEVER 111137 8.80
27 KICK LEVER SC 10A870 2.20
28 ARM LEVER SHAFT 122148 3.30
29 ARM LEVER SHAFT PLATE 160716 3.30
30 ARM LEVER SP 133859 2.20
31 ARM LEVER SP HOLDER 110871 2.20
32 ARM LEVER SP COVER (A) 108041 6.60
33 COVER SC 10A954 3.30
34 ARM LEVER 101382 18.70
35 ARM LEVER SC COLLAR 110958 2.20
36 ARM LEVER SC 10A935 2.20
37 ROLLER SC 187084 2.20
38 ROLLER MAG COLLAR (A) *Cannot be ordered 191053 12.10
39 ROLLER BALL BEARING 10E353 12.10
40 ROLLER COLLAR (A) 191054 3.30
41 LINE ROLLER *Cannot be ordered 179138 8.80
42 ROLLER COLLAR (B) 191055 4.40
43 ROLLER MAG COLLAR (B) *Cannot be ordered 191056 11.00
44 ROLLER W 190196 1.10
45 BAIL *Cannot be ordered 164804 70.40
46 BAIL HOLDER COVER 108042 6.60
47 MAG SHIELD PLATE *Cannot be ordered 114112 23.10
48 MAG SHIELD PLATE SC 10A955 2.20
49 MAGSHIELD PLATE O-RING 10J143 1.10
50 MAG SHIELD CAP *Cannot be ordered 108103 29.70
51 ONE-WAY CLUTCH W 190A28 1.10
52 ONE-WAY CLUTCH *Cannot be ordered 114124 26.40
53 CLUTCH RING *Cannot be ordered 110959 8.80
54 PINION BEARING PLATE 160784 2.20
55 PINION BEARING PLATE SC 10A778 2.20
56 PINION BALL BEARING (A) 10E325 15.40
57 PINION BEARING (A) W 190137 1.10
58 PINION BEARING (B) SP・W 190991 1.10
59 PINION BALL BEARING (B) 10E328 15.40
60 PINION COLLAR 110873 3.30
61 MAIN SHAFT *Cannot be ordered 171480 19.80
62 OSCILLATING POST 155316 2.20
63 OSCILLATING POST COLLAR 110960 3.30
64 BODY *Cannot be ordered 166222 56.10
65 BAIL KICK COLLAR 110956 2.20
66 STOPPER CAM 194181 11.00
67 STOPPER LEVER 196437 7.70
68 STOPPER CAM LEAF SP 133904 2.20
70 REAR CAP 116564 8.80
71 LEARNING CAP SC 10A953 2.20
72 OSCILLATING GEAR W 190977 1.10
73 OSCILLATING GEAR *Cannot be ordered 106098 9.90
74 OSCILLATING GEAR O-RING 10J079 1.10
75 OSCILLATING GEAR BEARING W 190854 1.10
76 OSCILLATING GEAR BALL BEARINGS 10E313 15.40
77 OSCILLATING GEAR SC 10A779 2.20
78 DRIVE GEAR RING 10J069 1.10
79 PINION + DRIVE GEAR SET *Cannot be ordered 138796 111.10
80 DRIVE BALL BEARING *Cannot be ordered 10E383 45.10
81 BODY COVER *Cannot be ordered 168290 28.60
82 BODY COVER SC (A) 10A957 2.20
83 BODY COVER SC (B) 10A780 2.20
84 DRIVE W 190752 1.10
85 DRIVE BEARING COVER *Cannot be ordered 168286 48.40
86 DRIVE BEARING COVER SC (L) 10A958 2.20
87 HANDLE 1H2088 157.30
88 DRIVE BEARING COVER SC (R) 10A979 2.20
89 HANDLE CAP O-RING 10J076 1.10
90 HANDLE CAP 151177 6.60
201 HANDLE SP-W (0.05) 190983 1.10
202 HANDLE KNOB BALL BEARING 10E313 15.40
203 HANDLE KNOB 1H1477 15.40
204 HANDLE KNOB SC 10A333 2.20
205 HANDLE KNOB CAP 116262 2.20
300 WASHER (REAL FOUR/RCS) 190922 2.20
