[Avail] SHIMANO Star Drag for 23 CALCUTTA CONQUEST BFS, 21 CALCUTTA CONQUEST 100 Series [SD-23CNQ]

Star Drag for 23 CALCUTTA CONQUEST BFS/21 CALCUTTA CONQUEST

Model

SD-23CNQ


Product Description

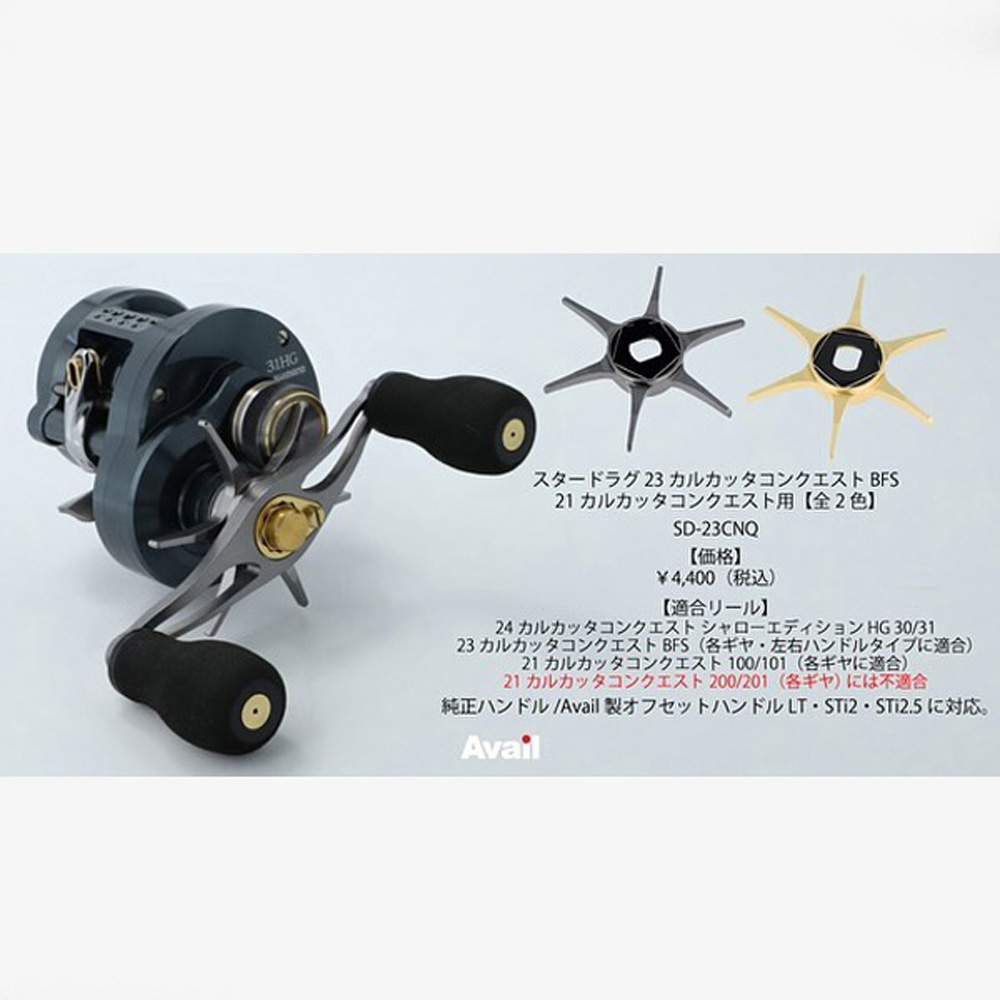

Avail original star drag for 21 CALCUTTA CONQUEST 100/23 CALCUTTA CONQUEST BFS.
This shape is compatible with the genuine handle, Avail Offset Handle LT, STi2, and STi2.5.



The number of arms is increased by one and designed to be longer than genuine parts.
The arm is designed to be longer than the genuine part, making it easier to wind up dandruff with the middle finger or the like while palming.
The use of duralumin minimizes the weight increase.





The appearance is sharper than that of the genuine parts.


Color Variation


SD-23CNQ Gunmetal


SD-23CNQ Champagne Gold


Installation Method

Replace the drag by referring to the following procedure.
*Please be careful not to lose or damage any parts.



1. [Tools used]
- Phillips screwdriver
- Avail original offset wrench 10/11 mm
- Star Drag for 23 CALCUTTA CONQUEST BFS




2. Remove the screw securing the retainer.




3. Use the wrench to remove the nut.




4. Remove the loosened nut between fingers.




5. Remove the handle while holding the drag.




6. Remove the drag.




7. Install the SD-23CNQ.




8. Install the handle while holding down the drag.




9. While holding down the handle, install the nut and tighten it with a wrench.




10. Install the retainer.




11. Install the screws to secure the retainer.




12. The replacement of the drag is now complete.




Points to keep in mind when replacing the star drag

When installing the star drag, make sure that A and B on the main unit side and the drag side are parallel before installing the star drag so that they are aligned.
*The star drag spring is not included in the image. Please be careful to remember to install it when attaching.


Specifications

Basic Specifications

Material
Aluminum alloy

Weight
SD-23CNQ: 5.8 g (Genuine: 5.25 g)

Compatible Reels
- 24 CALCUTTA CONQUEST SHALLOW EDITION HG30/31
- 23 CALCUTTA CONQUEST BFS (Compatible with each gear and left/right handle type)
- 21 CALCUTTA CONQUEST 100/101 (Compatible with all gears)
Not compatible with 21 CALCUTTA CONQUEST 200/201
Not compatible with 21 CALCUTTA CONQUEST 200/201 HG
Not compatible with 22 CALCUTTA CONQUEST 200/201 XG
Compatible with Genuine handle/Avail offset handle LT, STi2, STi2.5.


Installation Example





You can coordinate colors with separately sold handles, mechanical brake knobs, retainers, and more.
