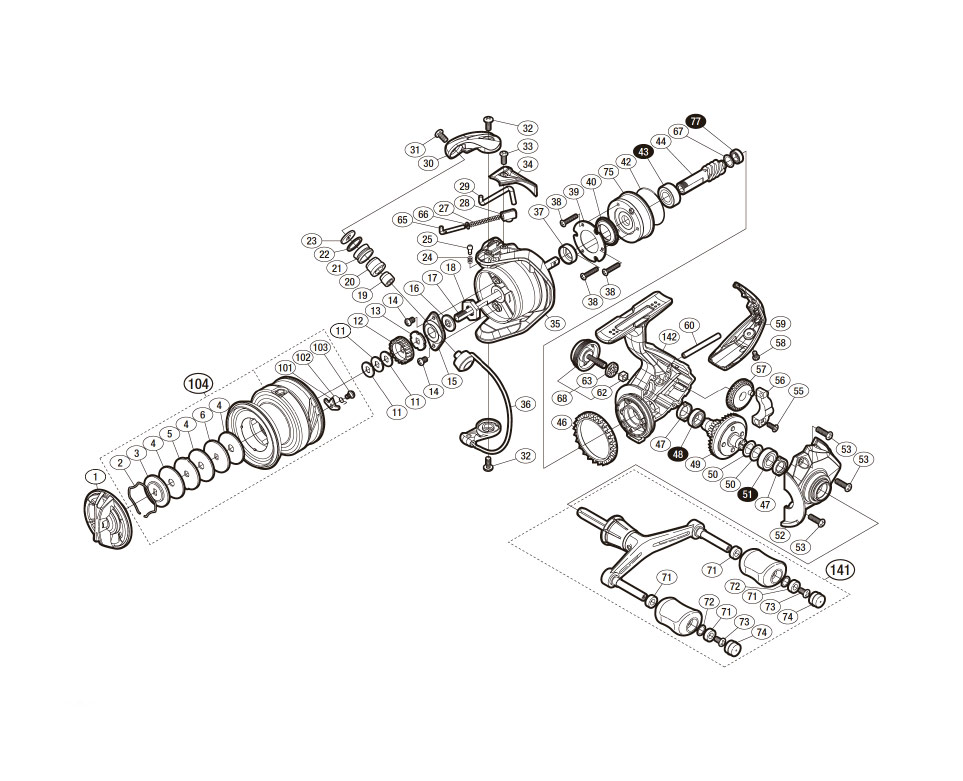

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10DLX DRAG KNOBS 17.05
2 10MZX STOPPER SPRING 1.65
3 10BCE OVAL WASHERS 1.65
4 102ZG DRAG WASHERS 1.65
5 102ZD EAR WASHERS 1.65
6 10QBT OVAL WASHERS 1.65
11 10BXN SPOOL WASHER SET 1.10
12 103MU SPOOL HOLDER (A) 1.65
13 10J04 SPOOL HOLDER (B) 1.65
14 10PMC FIXING BOLT 2.75
15 10TRH RETAINER 2.75
16 107L4 ROTOR BEARING SEAL 2.75
17 10DMK MAIN SHAFT 6.05
18 1067Y ROTOR NUT 3.85
19 1020X LINE ROLLER COLLAR 1.65
20 10PFH ARM ROLLER BUSHING 1.10
21 10JLE ARM ROLLER 4.95
22 10KFD ARM ROLLER SPACER 1.65
23 10PFP ARM ROLLER WASHER 1.10
24 10CH0 BAIL TRIP LEVER CLICK SPRING 1.65
25 106ZC CLICK PIN 1.65
27 105R6 ARM CAM SPRING 1.65
28 107AB ARM CAM SPRING SEAT 2.75
29 106P2 INTERNAL GERI LEVER 2.75
30 10DNW ARM CAM 3.85
31 10K90 FIXING BOLT 1.10
32 10LFH FIXING BOLT 1.10
33 10LFK FIXING BOLT 1.10
34 10DNX ARM CAM SPRING COVER 6.05
35 101ZW ROTOR 10.45
36 1020H BALE ASSEMBLY 9.35
37 10JHG ROTOR COLLAR 3.85
38 103C6 FIXING BOLT 1.10
39 10L62 ROLLER CLUTCH COVER PLATE 1.65
40 10MH6 ROLLER CLUTCH SEAL 3.85
42 10MLU O-RING 3.85
43 107FE BALL BEARING (7 X 14 X 5) 7.15
44 10DMG PINION GEAR 10.45
46 104FV FRICTION RING 2.75
47 10DMT BEARING SEAL 1.65
48 107FA BALL BEARING (7X11X3) 7.15
49 10DQ8 DRIVE GEAR SET 10.45
50 10JDC ADJUSTMENT WASHER SET 1.10
51 107AT BALL BEARING (7X13X4) 7.15
52 10DMS LID 9.35
53 10L6J FIXING BOLT 1.10
55 10R1P FIXING BOLT 1.65
56 10G7D SLIDER 8.25
57 10DMJ SLIDER GEAR 1.65
58 10LCS FIXING BOLT 1.10
59 10DM5 BODY GUARD 6.05
60 1035A SLIDER GUIDE 1.65
62 104NX WATERPROOF CAP YURUMI STOPPER 1.10
63 10J6B HANDLE SCREW CAP SPACER 1.65
65 1061L ARM SPRING GUIDE (A) 3.85
66 10TYE SPRING GUIDE (A) COLLAR 1.65
67 10HEP WASHER 1.10
68 10283 HANDLE SCREW CAP 6.05
71 10PXZ HANDLE KNOB BUSH 1.65
72 104FH WASHER 2.20
73 10LFA FIXING BOLT 1.10
74 10BFN HANDLE CAP 3.85
75 10QPN ROLLER CLUTCH ASSEMBLY 11.55
77 10RKR BALL BEARING (5 X 8 X 2.5) 7.15
101 1038H SPOOL PIN 1.65
102 10PH3 SPOOL PIN SPRING 1.65
103 10PH4 FIXING BOLT 1.65
104 10DPL SPOOL ASSEMBLY 28.05
141 10DLM HANDLE ASSEMBLY 28.05
142 101YG BODY 11.55
MH01 13NFW NAMEPLATE ON THE BACK OF THE LEG 2.75
PUNT 13FLQ INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY) 2.75
