[SHIMANO] Genuine Spare Parts for 13-16 BIOMASTER SW 4000XG Product Code: 031587 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 13-16 BIOMASTER SW 4000XG Product Code: 031587 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$47.36 [Regular Price: US$1.10 - US$67.65]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

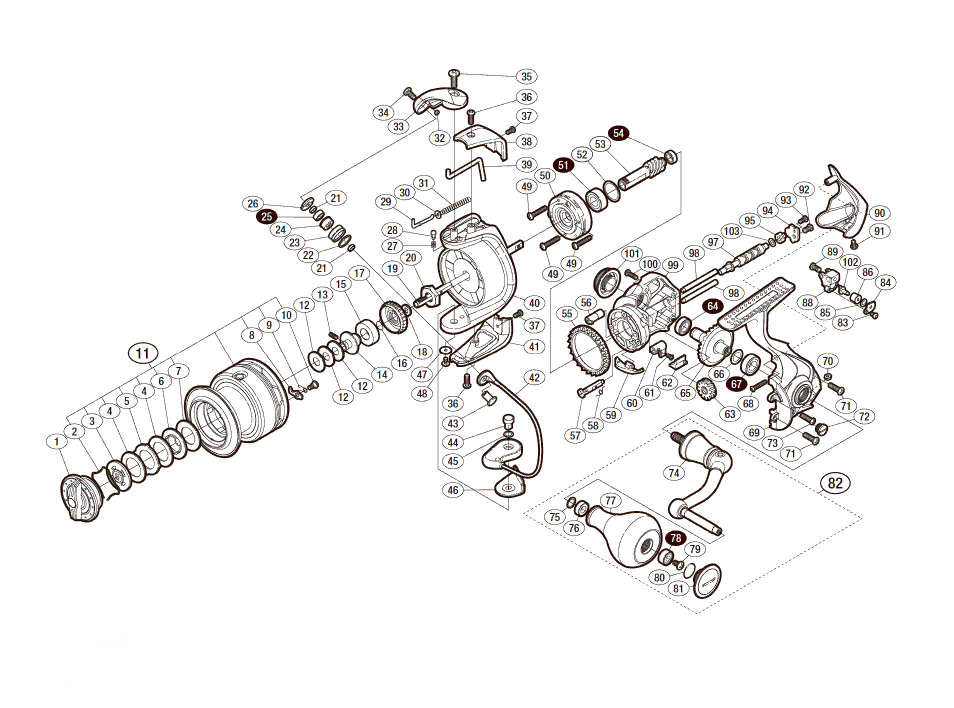

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13QN3 REEL BAG 4.95
1 102AF DRAG KNOB ASSEMBLY 11.55
2 10B8L STOPPER SPRING 1.65
3 10QBU OVAL WASHER 6.05
4 10345 DRAG WASHER 6.05
5 102XU EAR WASHERS 1.65
6 10BC6 OVAL WASHERS 1.65
7 10C1A DRAG WASHERS 6.05
8 10388 SPOOL PINS 1.65
9 10BQB SPOOL PIN SPRING 1.65
10 10A6F FIXING BOLT 1.65
11 10HRY SPOOL ASSEMBLY 56.10
12 10BSJ SPOOL WASHER SET 1.10
13 10PN2 SET SCREW 1.65
14 10LTV MAIN SHAFT BEARING GUIDE 3.85
15 10J3G SPOOL BUSHING 1.65
16 107V2 RATCHET SPRING 1.65
17 107PS DRAG CLICK RATCHET 2.75
18 103PE SPOOL RECEIVER 1.65
19 10L48 MAIN SHAFT 9.35
20 107VT ROTATING FRAME NUT 3.85
21 10G8N ARM ROLLER BEARING COLLAR 1.65
22 10KFD ARM ROLLER SPACER 1.65
23 10KM5 ARM ROLLER 6.05
24 10PFH ARM ROLLER BUSHING 1.10
25 104VX BALL BEARING (4X7X2.5) 13.75
26 1079U ARM ROLLER SPACER 1.65
27 10CH0 BAIL TRIP LEVER CLICK SPRING 1.65
28 106UX CLICK PIN 1.65
29 105LU ARM SPRING GUIDE (A) 1.65
30 10TYE SPRING GUIDE (A) COLLAR 1.65
31 10FVD ARM CAM SPRING 1.65
32 107X8 ARM ROLLER LUBRICATION HOLE CAP 1.65
33 1075W ARM CAM 6.05
34 10PMJ FIXING BOLT 1.10
35 103J1 FIXING BOLT 1.10
36 103KL FIXING BOLT 1.10
37 103N8 FIXING BOLT 1.10
38 1092F ARM CAM SPRING COVER 6.05
39 10829 INTERNAL GERI LEVER 2.75
40 102M8 ROTOR 17.05
41 10MES MOUNTING CAM COVER 6.05
42 106GK BAIL ASSEMBLY 22.55
43 10Q37 ARM FIXED SHAFT 6.05
44 10K4Y FIXING SHAFT FOR MOUNTING CAMS 3.85
45 10HZ1 WASHER 1.10
46 10D1S BALE MOUNTING KECAM SEAT 1.65
47 107LD WASHER 1.10
48 103BX FIXING BOLT 1.65
49 103C5 FIXING BOLT 1.10
50 10QPB ROLLER CLUTCH ASSEMBLY 11.55
51 104Q5 BALL BEARING (7 X 14 X 5) 13.75
52 107JT FRONT FLANGE BEARING ADJUSTMENT WASHER 1.10
53 10BUU PINION GEAR 11.55
54 104JZ BALL BEARING (5X8X2.5) 13.75
55 104FU FRICTION RING 3.85
56 106H7 CROSS GEAR BUSH (FRONT) 1.65
57 10535 STOPPER CAM 2.75
58 10DCN CLICK SPRING 1.65
59 107E1 INNER GERI HITARI 1.65
60 10ANP STOPPER LEVER 2.75
61 10PRU FIXING BOLT 1.65
62 10J0K STOPPER KNOB COVER 2.75
63 10HBE WORM SHAFT GEAR 3.85
64 104PP BALL BEARING (7X11X3) 13.75
65 10A5U DRIVE GEAR ASSEMBLY 22.55
66 10JDB WASHER (7X10) 1.10
67 104JD BALL BEARING (7X13X4) 13.75
68 10LSE FIXING BOLT 1.10
69 102V1 KIFTER WITH LEGS 34.10
70 105N8 FIXING NUT 1.65
71 10M2R FIXING BOLT 1.10
72 104KN LUBRICATION HOLE CAP 3.85
73 10LHY FIXING BOLT 1.65
74 106SL HANDLE 22.55
75 104FH WASHER 2.20
76 104UJ HANDLE GRIP BUSH (B) 1.65
77 10442 HANDLE KNOB 39.60
78 10KX2 BALL BEARING (4X9X4) 13.75
79 103E9 FIXING BOLT 1.10
80 10LAA O-RING 1.10
81 10BFE HANDLE KNOB CAP 9.35
82 10HNQ HANDLE ASSEMBLY 67.65
83 10LV7 FIXING BOLT 1.10
84 10HAA CROSS GEAR PIN PUSH PLATE 1.65
85 10RKQ WASHER 2.20
86 10JXK CROSS GEAR PIN COLLAR 1.65
88 10G5N SLIDER 8.25
89 103GP FIXING BOLT 1.10
90 10NEA BODY GUARD 6.05
91 10MHE FIXING BOLT 1.10
92 103L8 FIXING BOLT 1.10
93 103N4 FIXING BOLT 1.10
94 10AT3 CROSS GEAR SHAFT COVER 1.65
95 106GS CROSS GEAR BUSH (REAR) 1.65
97 1081K WORM SHAFT 6.05
98 1033D SLIDER GUIDE 1.65
99 10B0J CIBODY WITHOUT LEGS 22.55
100 10LV0 FIXING BOLT 1.10
101 10N18 HANDLE SCREW CAP 11.55
102 106VH WORM SHAFT PIN 3.85
103 10ECK WASHER 1.10
BNKI 13QZS EXPLODED VIEW (ACCESSORIES) 2.75
ITOS 13QPZ THREAD STOPPER SEAL 1.65
MH01 13NAQ NAMEPLATE ON THE BACK OF THE LEG 2.75
TRST 13PMG INSTRUCTION MANUAL (ACCESSORY) 1.65
