[SHIMANO] Genuine Spare Parts for 22 MIRAVEL 4000 Product Code: 045195 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 22 MIRAVEL 4000 Product Code: 045195 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$35.42 [Regular Price: US$1.10 - US$50.60]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.102 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/5652

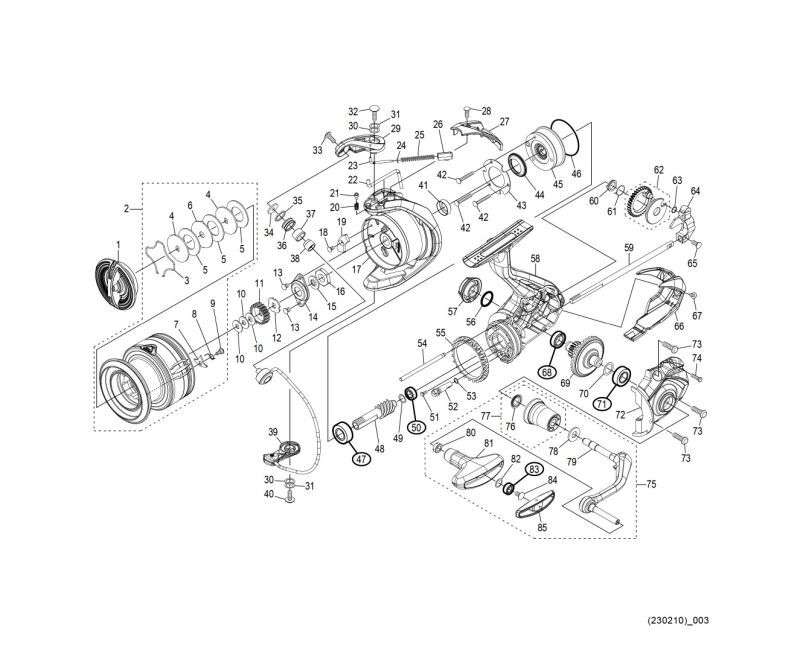

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 101UA DRAG KNOB ASSEMBLY 17.05
2 13ANK SPOOL ASSEMBLY 50.60
3 10B8N STOPPER SPRING 1.65
4 10BCE OVAL WASHER 1.65
5 102ZG DRAG WASHER 1.65
6 102XX EAR WASHER 1.65
7 1038D SPOOL PIN 1.65
8 10JM5 CLICK SPRING 1.65
9 10PH5 FIXING BOLT 1.65
10 10BXN SPOOL WASHER SET 1.10
11 103MU SPOOL HOLDER (A) 1.65
12 10J04 SPOOL HOLDER (B) 1.65
13 10PMC FIXING BOLT 2.75
14 10TRH RETAINER 2.75
15 107L4 ROTOR BEARING SEAL 2.75
16 10TPL ROTOR NUT 3.85
17 13YW6 ROTOR ASSEMBLY 11.00
18 10LA3 FIXING BOLT 1.65
19 106GA BALANCER A 1.65
20 10CH0 BAIL TRIP LEVER CLICK SPRING 1.65
21 106ZC CLICK PIN 1.65
22 106P4 INTERNAL GERI LEVER 2.75
23 1061L ARM SPRING GUIDE (A) 3.85
24 10TYE SPRING GUIDE (A) COLLAR 1.65
25 105R6 ARM CAM SPRING 1.65
26 107AB ARM CAM SPRING SEAT 2.75
27 101T5 ARM CAM SPRING COVER 6.05
28 10LFK FIXING BOLT 1.10
29 13ANM ARM CAM 3.85
30 10K96 ADJUSTMENT WASHER 1.65
31 10KFA ADJUSTMENT WASHER 1.10
32 103LT FIXING BOLT 1.65
33 10PMH FIXING BOLT 1.65
34 10PFP ARM ROLLER WASHER 1.10
35 10KFD ARM ROLLER SPACER 1.65
36 10JLF ARM ROLLER 1.65
37 10PFH ARM ROLLER BUSHING 1.10
38 1020X LINE ROLLER COLLARS 1.65
39 13ANN BAIL ASSEMBLY 9.90
40 103DA FIXING BOLT 1.65
41 10JHG ROTOR COLLAR 3.85
42 103C6 FIXING BOLT 1.10
43 10L62 ROLLER CLUTCH COVER PLATE 1.65
44 10MH6 ROLLER CLUTCH SEAL 3.85
45 10QPN ROLLER CLUTCH ASSEMBLY 11.55
46 10MLU O-RING 3.85
47 107FE BALL BEARING (7X14X5) 7.15
48 101ST PINION GEAR 10.45
49 10SYU WASHER 1.65
50 10RKR BALL BEARING (5X8X2.5) 7.15
51 10L1N FIXING BOLT 1.10
52 10TB2 STOPPER CAM 1.10
53 108WU O-RING 1.65
54 101HU SLIDER GUIDE 1.65
55 104FV FRICTION RING 2.75
56 108WH O-RING 1.65
57 10RSK HANDLE SCREW CAP 3.85
58 13ANP BODY ASSEMBLY 19.80
59 101SZ MAIN SHAFT 6.05
60 10TBH BUSH 1.10
61 10RPB BUSH SPRING 1.10
62 10U1D SLIDER GEAR 3.30
63 10241 O-RING 1.65
64 101UC SLIDER GEAR 8.25
65 10ML7 FIXING BOLT 1.65
66 10R94 BODY GUARD 6.05
67 10LCS FIXING BOLT 1.10
68 107FA BALL BEARING (7X11X3) 7.15
69 101UB DRIVE GEAR 17.60
70 10EEZ WASHER 2.75
71 107AT BALL BEARING (7X13X4) 7.15
72 13ANQ LID 18.70
73 101EH FIXING BOLT 1.10
74 10R7G FIXING BOLT 1.10
75 13ANR HANDLE ASSEMBLY 49.50
76 10PXV HANDLE SHAFT SEAL 2.75
77 13ANS HANDLE SHAFT FLANGE ASSEMBLY 8.80
78 10E5X HANDLE WASHER 1.65
79 101G1 HANDLE SHANK ASSEMBLY 22.00
80 10PXZ HANDLE KNOB BUSH 1.65
81 10RHC HANDLE KNOB 17.05
82 104FH HANDLE WASHER 2.20
83 10K64 BALL BEARING (4X7X2.5) 7.15
84 10LFA FIXING BOLT 1.10
85 10S3U HANDLE CAP 3.85
MH01 13Y1Y NAMEPLATE ON BACK OF LEG 1.10
PUNT 13XM9 INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY) 1.65
