[SHIMANO] Genuine Spare Parts for 17-18 SEDONA C5000XG Product Code: 036896 **Back-order (Shipping in 3-4 weeks after receiving order)
[SHIMANO] Genuine Spare Parts for 17-18 SEDONA C5000XG Product Code: 036896 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.77 - US$23.87 [Regular Price: US$1.10 - US$34.10]
Prices vary according to options.
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.

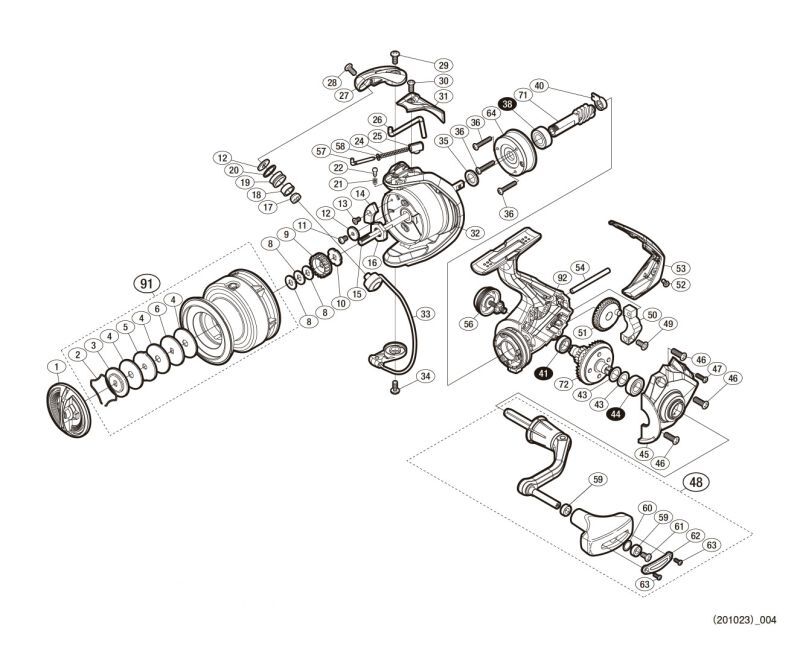

Reel Part's Schematic Diagram |
* Circled figures indicate bearings.
* Please note disassembly is at your own risk.
No. | S Part No. | Description | Price (USD) |
1 | 10SCH | DRAG KNOBS | 11.55 |
2 | 10B8N | STOPPER SPRING | 1.65 |
3 | 10QBT | OVAL WASHERS | 1.65 |
4 | 102ZG | DRAG WASHERS | 1.65 |
5 | 102ZD | EAR WASHERS | 1.65 |
6 | 10BCE | OVAL WASHERS | 1.65 |
8 | 10BXN | SPOOL WASHER SET | 1.10 |
9 | 103MU | SPOOL HOLDER (A) | 1.65 |
10 | 10J04 | SPOOL HOLDER (B) | 1.65 |
11 | 10PMC | FIXING BOLT | 2.75 |
12 | 10PFP | ARM ROLLER WASHER | 1.10 |
13 | 10LA3 | FIXING BOLT | 1.65 |
14 | 106GA | BALANCER A | 1.65 |
15 | 101SZ | MAIN SHAFT | 6.05 |
16 | 1067Y | ROTOR NUT | 3.85 |
17 | 1020X | LINE ROLLER COLLAR | 1.65 |
18 | 10PFH | ARM ROLLER BUSHING | 1.10 |
19 | 10JLF | ARM ROLLER | 1.65 |
20 | 10KFD | ARM ROLLER SPACER | 1.65 |
21 | 10CH0 | BAIL TRIP LEVER CLICK SPRING | 1.65 |
22 | 106ZC | CLICK PIN | 1.65 |
24 | 105R6 | ARM CAM SPRING | 1.65 |
25 | 107AB | ARM CAM SPRING SEAT | 2.75 |
26 | 106P4 | INTERNAL GERI LEVER | 2.75 |
27 | 101ZF | ARM CAM | 3.85 |
28 | 10K90 | FIXING BOLT | 1.10 |
29 | 10LHX | FIXING BOLT FOR ARM CAM | 1.10 |
30 | 10LFK | FIXING BOLT | 1.10 |
31 | 101T5 | ARM CAM SPRING COVER | 6.05 |
32 | 10U0C | ROTOR | 9.35 |
33 | 10TVP | BAIL ASSEMBLY | 9.35 |
34 | 10LFH | FIXING BOLT | 1.10 |
35 | 10JVH | WASHER | 1.10 |
36 | 103C6 | FIXING BOLT | 1.10 |
38 | 107FE | BALL BEARING (7 X 14 X 5) | 7.15 |
40 | 1074K | BUSH FOR PINION GEAR | 1.65 |
41 | 107FA | BALL BEARING (7X11X3) | 7.15 |
43 | 10JDC | ADJUSTMENT WASHER SET | 1.10 |
44 | 107AT | BALL BEARING (7X13X4) | 7.15 |
45 | 10SSW | LID | 11.55 |
46 | 10M73 | FIXING BOLT | 1.10 |
47 | 10LPL | FIXING BOLT | 1.65 |
48 | 10SSY | HANDLE SET | 25.85 |
49 | 10ML7 | FIXING BOLT | 1.65 |
50 | 10G7E | SLIDER | 8.25 |
51 | 101SX | SLIDER GEAR | 1.65 |
52 | 10LCS | FIXING BOLT | 1.10 |
53 | 101SM | BODY GUARD | 6.05 |
54 | 1035B | SLIDER GUIDE | 1.65 |
56 | 101WG | HANDLE SCREW CAP | 6.05 |
57 | 1061L | ARM SPRING GUIDE (A) | 3.85 |
58 | 10TYE | SPRING GUIDE (A) COLLAR | 1.65 |
59 | 10PXZ | HANDLE KNOB BUSH | 1.65 |
60 | 104FH | WASHER | 2.20 |
61 | 10LFA | FIXING BOLT | 1.10 |
62 | 1019J | HANDLE KNOB NAMEPLATE | 2.75 |
63 | 10L1T | FIXING BOLT | 1.10 |
64 | 10QPN | ROLLER CLUTCH ASSEMBLY | 11.55 |
71 | 101SV | PINION GEAR | 10.45 |
72 | 101RK | DRIVE GEAR ASSEMBLY | 10.45 |
91 | 10TV6 | SPOOL ASSEMBLY | 34.10 |
92 | 101ME | BODY | 9.35 |
MH01 | 13B0H | NAMEPLATE ON THE BACK OF THE LEG | 2.75 |
PUNT | 13FLJ | INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY) | 2.75 |
