[SHIMANO] Genuine Spare Parts for 17 SAHARA C3000HG Product Code: 036292 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 17 SAHARA C3000HG Product Code: 036292 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$19.64 [Regular Price: US$1.10 - US$28.05]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

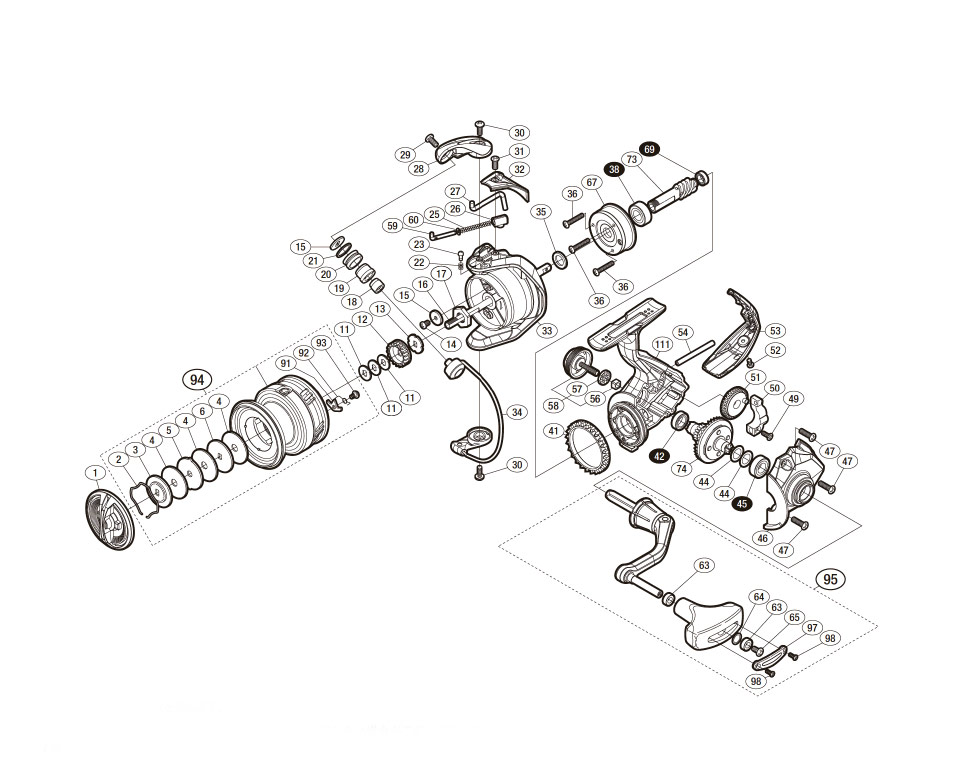

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 101XD DRAG KNOBS 13.75
2 10MZX STOPPER SPRING 1.65
3 10BCE OVAL WASHERS 1.65
4 102ZG DRAG WASHERS 1.65
5 102ZD EAR WASHERS 1.65
6 10QBT OVAL WASHERS 1.65
11 10BXN SPOOL WASHER SET 1.10
12 103MU SPOOL HOLDER (A) 1.65
13 10J04 SPOOL HOLDER (B) 1.65
14 10PMC FIXING BOLT 2.75
15 10PFP ARM ROLLER WASHER 1.10
16 10DMK MAIN SHAFT 6.05
17 1067Y ROTOR NUT 3.85
18 1020X LINE ROLLER COLLAR 1.65
19 10PFH ARM ROLLER BUSHING 1.10
20 10JLE ARM ROLLER 4.95
21 10KFD ARM ROLLER SPACER 1.65
22 10CH0 BAIL TRIP LEVER CLICK SPRING 1.65
23 106ZC CLICK PIN 1.65
25 105R6 ARM CAM SPRING 1.65
26 107AB ARM CAM SPRING SEAT 2.75
27 106P2 INTERNAL GERI LEVER 2.75
28 101ZD ARM CAM 3.85
29 10K90 FIXING BOLT 1.10
30 10LFH FIXING BOLT 1.10
31 10LFK FIXING BOLT 1.10
32 101ZG ARM CAM SPRING COVER 6.05
33 101ZB ROTOR 9.35
34 10RUM BAIL ASSEMBLY 9.35
35 10JVH WASHER 1.10
36 103C6 FIXING BOLT 1.10
38 107FE BALL BEARING (7 X 14 X 5) 7.15
41 104FV FRICTION RING 2.75
42 107FA BALL BEARING (7X11X3) 7.15
44 10JDC ADJUSTMENT WASHER SET 1.10
45 107AT BALL BEARING (7X13X4) 7.15
46 1028W LID 9.35
47 10L6J FIXING BOLT 1.10
49 10R1P FIXING BOLT 1.65
50 10G7D SLIDER 8.25
51 10DMJ SLIDER GEAR 1.65
52 10LCS FIXING BOLT 1.10
53 1020S BODY GUARD 6.05
54 1035A SLIDER GUIDE 1.65
56 104NX WATERPROOF CAP YURUMI STOPPER 1.10
57 10J6B HANDLE SCREW CAP SPACER 1.65
58 10283 HANDLE SCREW CAP 6.05
59 1061L ARM SPRING GUIDE (A) 3.85
60 10TYE SPRING GUIDE (A) COLLAR 1.65
63 10PXZ HANDLE KNOB BUSH 1.65
64 104FH WASHER 2.20
65 10LFA FIXING BOLT 1.10
67 10QPN ROLLER CLUTCH ASSEMBLY 11.55
69 10RKR BALL BEARING (5 X 8 X 2.5) 7.15
73 10DMH PINION GEAR 10.45
74 10DQ9 DRIVE GEAR ASSEMBLY 10.45
91 1038H SPOOL PIN 1.65
92 10PH3 SPOOL PIN SPRING 1.65
93 10PH4 FIXING BOLT 1.65
94 101XH SPOOL ASSEMBLY 28.05
95 10201 HANDLE ASSEMBLY 22.55
97 10TY1 HANDLE KNOB NAMEPLATE 2.75
98 10L1T FIXING BOLT 1.10
111 10SXF BODY 11.55
MH01 13NG9 NAMEPLATE ON THE BACK OF THE LEG 2.75
PUNT 13FLE INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY) 2.75
