[SHIMANO] Genuine Spare Parts for 22 SAHARA C2000S Product Code: 044518 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 22 SAHARA C2000S Product Code: 044518 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$25.80 [Regular Price: US$1.10 - US$36.85]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.102 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/5341

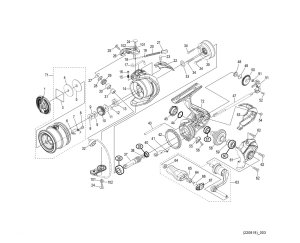

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 100FH DRAG KNOB ASSEMBLY 17.05
3 10B87 STOPPER SPRING 1.65
4 10N24 OVAL WASHER 1.65
5 10N5A DRAG WASHER 1.10
6 10DS4 SPOOL PIN 1.65
7 10DS6 SPOOL PIN SPRING 1.65
8 10TRB FIXING BOLT 1.65
9 10BXN SPOOL WASHER SET 1.10
10 103MU SPOOL HOLDER (A) 1.65
11 10J04 SPOOL HOLDER (B) 1.65
12 10LCE FIXING BOLT 1.10
13 1067Y ROTOR NUT 3.85
14 100FP ROTOR 10.45
15 10CH0 BAIL TRIP LEVER CLICK SPRING 1.65
16 106ZC CLICK PIN 1.65
17 106L0 INTERNAL GERI LEVER 2.75
18 1061L ARM SPRING GUIDE (A) 3.85
19 10TYE SPRING GUIDE (A) COLLAR 1.65
20 10R2N ARM CAM SPRING 1.65
21 107AB ARM CAM SPRING SEAT 2.75
22 101T4 ARM CAM SPRING COVER 6.05
23 10LFK FIXING BOLT 1.10
24 103DA FIXING BOLT 1.65
25 10PMH FIXING BOLT 1.65
26 100FM ARM CAM 3.85
27 10PFP ARM ROLLER WASHER 1.10
28 10KFD ARM ROLLER SPACER 1.65
29 10JLF ARM ROLLER 1.65
30 10PFH ARM ROLLER BUSHING 1.10
31 1020X LINE ROLLER COLLARS 1.65
32 100T3 BAIL ASSEMBLY 9.35
33 10JVH WASHER 1.10
34 103C6 FIXING BOLT 1.10
35 10QPN ROLLER CLUTCH ASSEMBLY 11.55
36 10E7A BALL BEARING (7 X 14 X 5) 7.15
37 101SU PINION GEAR 10.45
38 10SYU WASHER 1.65
39 10RKR BALL BEARING (5X8X2.5) 7.15
40 10TB2 STOPPER CAM 1.10
41 105B4 CLICK SPRING 1.65
42 104FV FRICTION RING 2.75
43 101BN SLIDER GUIDE 1.65
44 10E3K O-RING 1.65
45 10RSE HANDLE SCREW CAP 3.85
47 101SY MAIN SHAFT 6.05
48 10TBH BUSH 1.10
49 10RPB BUSH SPRING 1.10
50 101BV SLIDER GEAR 1.65
51 101BP SLIDER GEAR 8.25
52 10R1P FIXING BOLT 1.65
53 10TAR BODY GUARD 5.50
54 10LCS FIXING BOLT 1.10
55 100HA STOPPER LEVER 1.10
56 103NA FIXING BOLT 1.65
57 107FA BALL BEARING (7X11X3) 7.15
58 101BZ DRIVE GEAR 16.50
59 10EEZ WASHER 2.75
60 10DZB BALL BEARING (7X13X4) 7.15
61 10T6X LID 9.35
62 10L6K FIXING BOLT 1.10
63 10T6R HANDLE ASSEMBLY 36.85
64 10PXZ HANDLE KNOB BUSHING 1.65
65 104FH WASHER 2.20
66 10LFA FIXING BOLT 1.10
67 10TNJ HANDLE CAP 3.85
71 10T71 SPOOL ASSEMBLY 24.75
72 10TE3 BODY ASSEMBLY 11.55
91 101BW O-RING 1.65
101 10K96 WASHER 1.65
102 10KFA ADJUSTMENT WASHER 1.10
MH01 13NCZ NAMEPLATE ON THE BACK OF THE LEG 1.10
PUNT 13FMT INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY) 2.75
