[SHIMANO] Genuine Spare Parts for 21 EXSENCE C3000MHG Product Code: 043412 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.102 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/4987

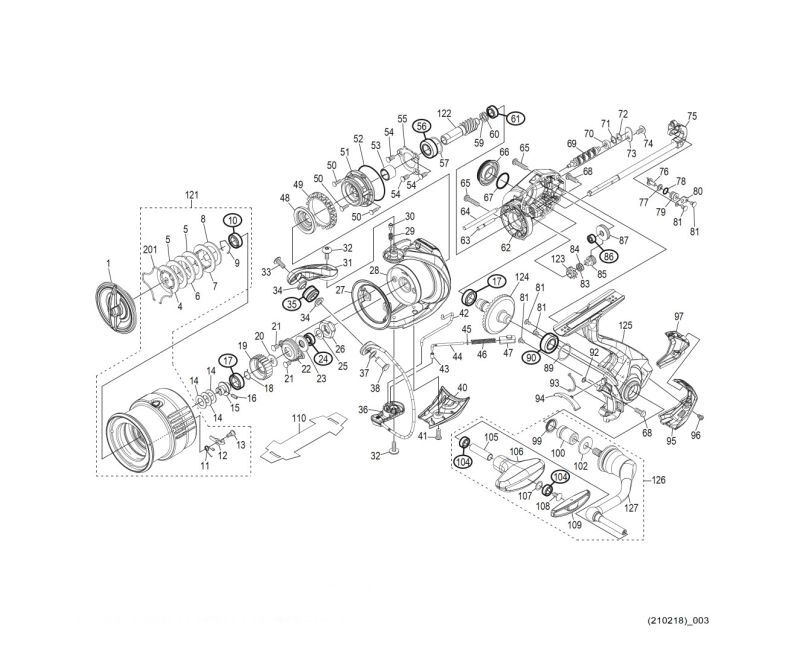

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "51 / Roller Clutch", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
*F01	13QQ7	REEL BAG (ACCESSORY)	11.55
1	10DV4	DRAG KNOB ASSEMBLY	27.50
4	10TJV	SMALL SIZE WASHER	9.35
5	102ZP	DRAG WASHER (A)	1.65
6	102XW	EAR WASHERS	1.65
7	10BBQ	OVAL WASHER	2.75
8	10C1D	DRAG WASHER	1.65
9	10GEW	BEARING PULL-OUT STOPPER	1.10
10	104JT	BALL BEARING (6X10X3)	13.75
11	10BQE	SPOOL PIN SPRING	1.65
12	10TJX	SPOOL PIN	1.65
13	10A6F	FIXING BOLT	1.65
14	10DHG	SPOOL WASHER	2.20
15	10DKF	MAIN SHAFT BEARING GUIDE	6.05
16	10PN2	SET SCREW	1.65
17	104PP	BALL BEARING (7 X 11 X 3)	13.75
18	107V2	RATCHET SPRING	1.65
19	10SYS	DRAG CLICKING RATCHET	2.75
20	103PE	SPOOL RETAINER	1.65
21	10T1G	RETAINER FIXING BOLT	1.10
22	1076N	RETAINER	2.75
23	107L2	ROTOR BEARING SEAL	3.85
24	10TD2	ROTOR BEARING COLLAR ASSEMBLY (WITH BEARING)	17.05
25	1026J	WASHER	1.10
26	101CY	ROTOR NUT	9.35
27	100Z5	ROTOR FLANGE	6.05
28	10TKZ	ROTOR ASSEMBLY	56.10
29	10CGZ	CLICK SPRING	1.65
30	106UX	CLICK PIN	1.65
31	10S7G	ARM CAM	7.15
32	10SN9	FIXING BOLT	1.65
33	10TLJ	FIXING BOLT	2.75
34	1020L	LINE ROLLER BEARING COLLAR	2.75
35	101KE	LINE ROLLER (WITH BEARING) ASSEMBLY	34.10
36	10TKJ	BAIL ASSEMBLY	45.10
37	1002S	ARM FIXING SHAFT WASHER	1.10
38	10EAP	ARM FIXING SHAFT	2.75
40	100AA	BAIL MOUNTING COVER	7.15
41	10DT7	FIXING BOLT	1.65
42	101VW	INNER GERI LEVER	2.75
43	10DKC	ARM SPRING GUIDE (A) COLLAR BUSH	1.65
44	10SAN	ARM SPRING GUIDE (A)	3.85
45	101D9	ARM SPRING GUIDE (A) COLLAR	1.65
46	10R2P	ARM CAM SPRING	1.65
47	10R2E	ARM CAM SPRING GUIDE (B)	2.75
48	101D5	ROTOR COLLAR	9.35
49	10DK7	FRICTION RING	3.85
50	101LH	FIXING BOLT	1.10
51	10S2L	ROLLER CLUTCH ASSEMBLY *Cannot be ordered	12.65
52	10DKD	ROLLER CLUTCH GUIDE SEAL	1.65
53	10DJY	ROLLER CLUTCH INNER	3.85
54	10TGX	FIXING BOLT	1.10
55	10DJZ	BEARING PUSH PLATE	2.75
56	1022A	BALL BEARING (7X13X4)	13.75
57	10RYR	WASHER	1.10
59	10DJ1	WASHER	1.65
60	10HV4	ADJUSTMENT WASHER	1.10
61	10RKR	BALL BEARING (5X8X2.5)	7.15
62	100A3	BODY	27.50
63	10R3L	INTERMEDIATE GEAR SHAFT	3.85
64	101CZ	SLIDER GUIDE (A)	3.85
65	100YN	FIXING BOLT	1.65
66	100AB	HANDLE SCREW CAP	20.90
67	108WA	O-RING	1.65
68	10M2C	FIXING BOLT	1.10
69	101CR	WORM SHAFT	11.55
70	1009C	WORM SHAFT BUSHING	1.65
71	100XZ	WASHER	2.20
72	10TK0	WORM SHAFT WASHER	1.65
73	10ATC	WORM SHAFT COVER	1.65
74	10QG5	FIXING BOLT	1.10
75	10E9E	MAIN SHAFT ASSEMBLY	30.80
76	106VL	WORM SHAFT PIN	4.95
77	100CW	WASHER	2.20
78	108W9	O-RING (3X5)	1.65
79	101BY	WORM SHAFT PIN COLLAR	2.75
80	10HAG	WORM SHAFT PIN PUSH PLATE	1.65
81	1055G	FIXING BOLT	1.65
83	10DHM	WASHER	1.10
84	10TJT	WASHER	1.65
85	10DK2	INTERMEDIATE GEAR (S)	8.25
86	10PC0	BALL BEARING (2X5X2.5)	13.75
87	10DK0	WORM SHAFT GEAR	9.35
89	101AY	WASHER	2.20
90	104JD	BALL BEARING (7X13X4)	13.75
92	10GA7	WASHER	1.10
93	10DKA	COVER FLANGE SEAL	2.75
94	10DJK	INNER GERI HITARI	1.65
95	100ZB	BODY GUARD	11.55
96	10EF0	FIXING BOLT	1.65
97	10S7M	BODY COVER	9.35
99	10PXU	HANDLE SHAFT SEAL	2.75
100	10070	HANDLE SHAFT FLANGE (B)	9.35
102	10FJ6	HANDLE WASHER	1.65
104	104VX	BALL BEARING (4X7X2.5)	13.75
105	1022F	KNOB FIXED SHAFT PIPE	3.85
106	10R38	HANDLE KNOB	17.05
107	104FH	WASHER	2.20
108	103E9	FIXING BOLT	1.10
109	10R3A	HANDLE CAP	3.85
110	10PBS	LEG PROTECTION SHEET (ACCESSORY)	2.75
121	101JD	SPOOL ASSEMBLY	121.00
122	100QV	PINION GEAR	20.35
123	10S9M	INTERMEDIATE GEAR (L)	9.35
124	10TBN	DRIVE GEAR	28.05
125	10SJS	COVER ASSEMBLY	78.65
126	1025K	HANDLE ASSEMBLY	101.20
127	10SJZ	HANDLE SHANK ASSEMBLY	38.50
201	10T58	STOPPER SPRING	1.10
BNKI	13QZ9	EXPLODED VIEW (ACCESSORIES)	1.65
ITOS	13QPZ	STOPPER SEAL	1.65
MH01	13NBH	NAMEPLATE ON THE BACK OF THE LEG	1.65
TRST	13PMG	INSTRUCTION MANUAL (ACCESSORY)	1.65
