[SHIMANO] Genuine Spare Parts for 21 SPHEROS SW 5000HG Product Code: 043610 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.77 - US$42.35 [Regular Price: US$1.10 - US$60.50]
Prices vary according to options.
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.
- Genuine Spool Purchase
* If you just want the genuine spool (No.102 / Spool Unit), you can purchase
it from the following link without waiting for weeks if it's in our stock
now.
https://www.hedgehog-studio.co.jp/product/5181

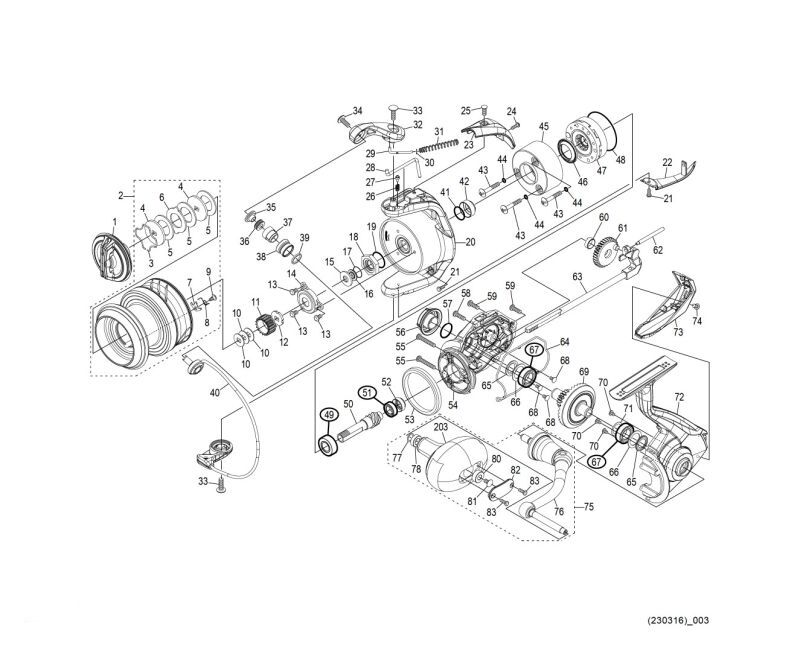

Reel Part's Schematic Diagram |
* Circled figures indicate bearings.
* Please note disassembly is at your own risk.
No. | S Part No. | Description | Price (USD) |
1 | 10SKN | DRAG KNOB ASSEMBLY | 9.90 |
2 | 10SKF | SPOOL ASSEMBLY | 60.50 |
3 | 10B8P | STOPPER SPRING | 1.65 |
4 | 10BC8 | OVAL WASHER | 1.65 |
5 | 10347 | DRAG WASHER | 6.05 |
6 | 102ZB | EAR WASHER | 1.10 |
7 | 1038E | SPOOL PIN | 1.10 |
8 | 100QY | CLICK SPRING | 1.10 |
9 | 10A6G | FIXING BOLT | 1.65 |
10 | 10PH7 | SPOOL WASHER | 1.10 |
11 | 10Q03 | SPOOL HOLDER (A) | 1.65 |
12 | 10J03 | SPOOL HOLDER (B) | 1.65 |
13 | 10LSM | FIXING BOLT | 1.10 |
14 | 10TGE | RETAINER | 1.65 |
15 | 107F7 | ROTOR BEARING SEAL | 1.65 |
16 | 10TG8 | ROTOR BEARING COLLAR | 1.65 |
17 | 100G6 | O-RING | 1.65 |
18 | 100X4 | ROTOR NUT | 3.85 |
19 | 10EZB | O-RING | 1.65 |
20 | 10SK6 | ROTOR | 12.65 |
21 | 10L1R | FIXING BOLT | 1.10 |
22 | 10MNB | BAIL MOUNTING BRACKET COVER | 6.05 |
23 | 1087Y | ARM CAM SPRING COVER | 6.05 |
24 | 10L1T | FIXING BOLT | 1.10 |
25 | 10LFK | FIXING BOLT | 1.10 |
26 | 10HEL | CLICK SPRING | 1.10 |
27 | 10HEA | BAIL TRIP LEVER CLICK PIN | 1.65 |
28 | 106KM | INTERNAL GERI LEVER | 2.75 |
29 | 105LU | ARM SPRING GUIDE (A) | 1.65 |
30 | 10TYE | SPRING GUIDE (A) COLLAR | 1.65 |
31 | 10FVD | ARM CAM SPRING | 1.65 |
32 | 10SWN | ARM CAM | 2.75 |
33 | 10LLK | FIXING BOLT | 1.65 |
34 | 1008N | FIXING BOLT | 1.10 |
35 | 107X4 | LINE ROLLER WASHER | 1.65 |
36 | 10TN7 | LINE ROLLER COLLAR | 2.75 |
37 | 107RN | LINE ROLLER BUSHING | 1.65 |
38 | 10KY0 | LINE ROLLER | 6.05 |
39 | 10KFE | ARM ROLLER SPACER | 1.65 |
40 | 10TKL | BAIL ASSEMBLY | 4.95 |
41 | 108WA | O-RING | 1.65 |
42 | 10K7R | ROTOR RING | 3.85 |
43 | 10A6S | FIXING BOLT | 1.65 |
44 | 108WW | O-RING | 1.65 |
45 | 10MH9 | ROLLER CLUTCH SEAL COVER | 1.65 |
46 | 10MH1 | ROLLER CLUTCH SEAL | 1.65 |
47 | 10QPE | ROLLER CLUTCH ASSEMBLY | 11.55 |
48 | 10H4F | ROLLER CLUTCH COVER SEAL | 1.65 |
49 | 10E7A | BALL BEARING (7 X 14 X 5) | 7.15 |
50 | 10TGR | PINION GEAR | 11.55 |
51 | 10K5Y | BALL BEARING (6X10X3) | 8.25 |
52 | 100XM | PINION GEAR BUSHING (REAR) | 1.65 |
53 | 104G7 | FRICTION RING | 1.65 |
54 | 10TL7 | BODY ASSEMBLY | 22.00 |
55 | 10LZ7 | FIXING BOLT | 1.10 |
56 | 101HW | HANDLE SCREW CAP | 3.85 |
57 | 108WH | O-RING | 1.65 |
58 | 1011G | FIXING BOLT | 1.65 |
59 | 10L6D | FIXING BOLT | 1.10 |
60 | 10JYG | SLIDER GEAR COLLAR | 1.65 |
61 | 10TG7 | SLIDER GEAR | 3.85 |
62 | 10TG9 | SLIDER GUIDE | 1.65 |
63 | 10SYY | MAIN SHAFT ASSEMBLY | 8.25 |
64 | 10TGH | BODY SEAL | 6.05 |
65 | 10TGJ | BEARING SEAL | 1.65 |
66 | 10BGF | WASHER | 1.65 |
67 | 104PR | BALL BEARING (8 X 14 X 4) | 9.35 |
68 | 10LCS | FIXING BOLT | 1.10 |
69 | 100XS | DRIVE GEAR ASSEMBLY | 22.55 |
70 | 1055H | FIXING BOLT | 1.65 |
71 | 10DKJ | WASHER | 2.20 |
72 | 10TL4 | COVER ASSEMBLY | 22.55 |
73 | 10244 | BODY GUARD | 6.05 |
74 | 10LHR | FIXING BOLT | 1.10 |
75 | 10SWU | HANDLE ASSEMBLY | 44.00 |
76 | 10TL5 | HANDLE SHANK ASSEMBLY | 33.00 |
77 | 104FH | WASHER | 2.20 |
78 | 104UJ | HANDLE GRIP BUSH (B) | 1.65 |
80 | 10EU0 | HANDLE GRIP BUSH (A) | 1.65 |
81 | 10LFA | FIXING BOLT | 1.10 |
82 | 10SVU | HANDLE KNOB NAMEPLATE | 1.10 |
83 | 103NJ | FIXING BOLT | 1.10 |
203 | 10R8C | HANDLE KNOB ASSEMBLY | 13.20 |
MH01 | 10SW3 | NAMEPLATE ON BACK OF LEG | 1.10 |
PUNT | 13FMP | INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY) | 1.65 |
