[SHIMANO] Genuine Spare Parts for 19 STRADIC C3000 Product Code: 040183 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 19 STRADIC C3000 Product Code: 040183 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 - US$37.29 [Regular Price: US$1.10 - US$62.15]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.102 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/4580

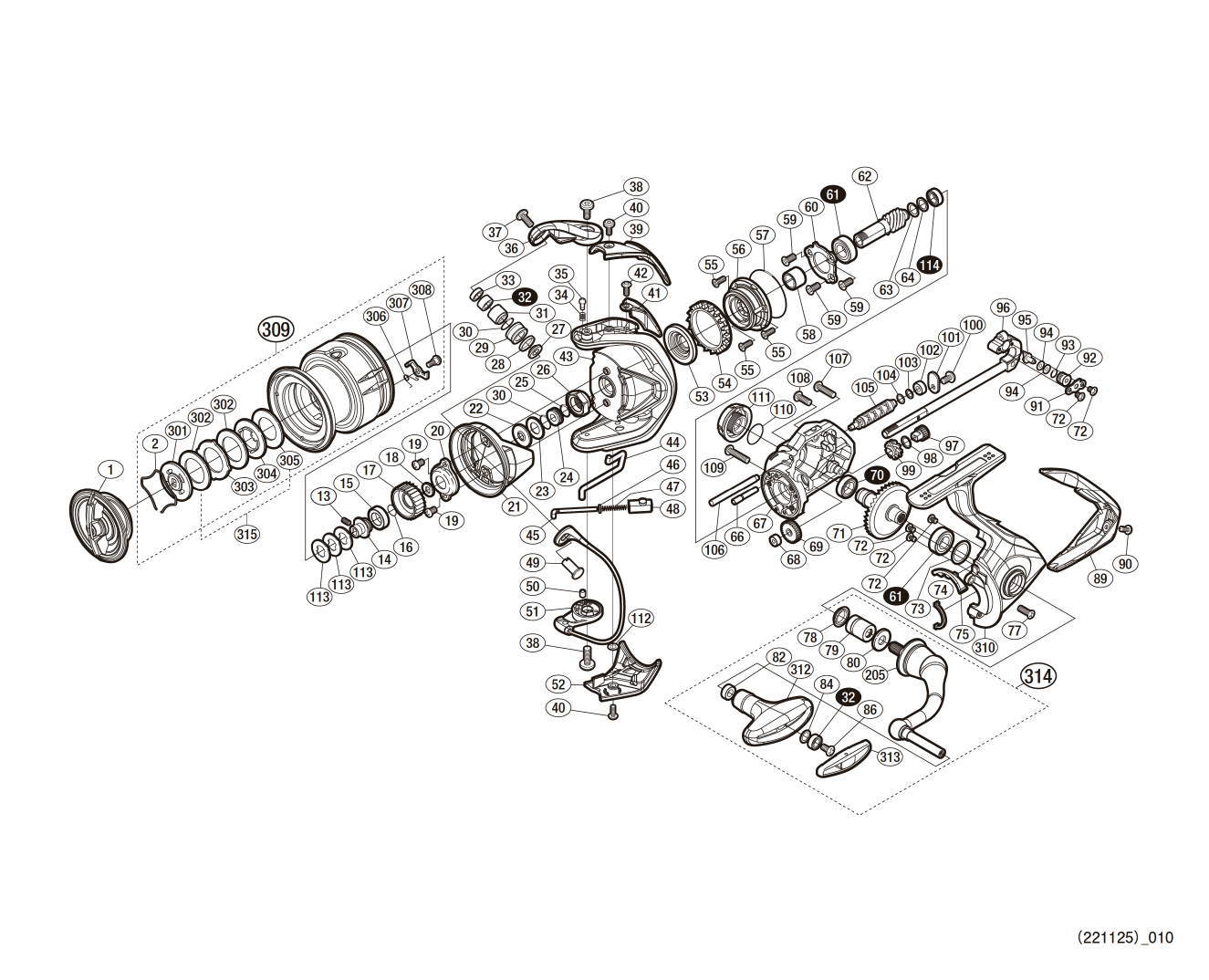

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10180 DRAG KNOB ASSEMBLY 11.55
2 10B8N STOPPER SPRING 1.65
13 10PN3 SET SCREW (M2 X 5) 1.65
14 10THY SPOOL SHAFT BEARING GUIDE 3.85
15 10J3F SPOOL BUSH 1.65
16 107V2 RATCHET SPRING 1.65
17 10SYS DRAG CLICK EMITTING RATCHET 2.75
18 103PE SPOOL BEARING 1.65
19 103GW FIXING BOLT 1.65
20 1076N RETAINER 2.75
21 10RSC ROTOR FLANGE 6.05
22 1017W ROTOR BEARING SEAL 1.65
23 10DXD WASHER 1.10
24 10RDL MAIN SHAFT COLLAR 3.85
25 10DXE O-RING 1.65
26 1018F ROTOR NUT 6.05
27 10TJM LINE ROLLER BEARING COLLAR 2.75
28 10RFZ LINE ROLLER SPACER 1.65
29 1009A LINE ROLLER 6.05
30 1009E O-RING 1.65
31 1009K LINE ROLLER BUSHING 1.65
32 104VX BALL BEARING (4 X 7 X 2.5) 13.75
33 10187 LINE ROLLER COLLAR 2.75
34 10HE7 CLICK SPRING 1.65
35 106ZC CLICK PIN 1.65
36 10RSF ARM CAM 3.85
37 10K90 FIXING BOLT 1.10
38 10PS5 FIXING BOLT 1.65
39 10RS1 ARM CAM SPRING COVER 3.85
40 10PS2 FIXING BOLT 1.65
41 10RRW BALANCER 2.75
42 103KS FIXING BOLT 1.10
43 10RRR ROTOR 28.05
44 1018H INTERNAL GERI LEVER 2.75
45 10SAN ARM SPRING GUIDE (A) 3.85
46 101D9 ARM SPRING GUIDE (A) COLLAR 1.65
47 105R6 ARM CAM SPRING 1.65
48 107AB ARM CAM SPRING SEAT 2.75
49 10TPC ARM FIXED SHAFT 6.05
50 1009B ARM SPRING GUIDE (A) COLLAR BUSH 1.65
51 10DZC BAIL ASSEMBLY 45.10
52 10RSA BAIL MOUNTING CASE COVER 3.85
53 101D5 ROTOR COLLAR 9.35
54 10QXQ FRICTION RING 2.75
55 100WT FIXING BOLT 1.65
56 10S2L ROLLER CLUTCH ASSEMBLY 12.65
57 1009Z O-RING 1.65
58 1009Y ROLLER CLUTCH INNER 3.85
59 100WY FIXING BOLT 1.65
60 10DWD BEARING PUSH PLATE 1.65
61 10DZB BALL BEARING (7X13X4) 7.15
62 10DWY PINION GEAR 11.55
63 10SYU WASHER 1.65
64 10HE5 WASHER 1.65
66 10DVW INTERMEDIATE GEAR SHAFT 3.85
67 10RSG BODY 22.55
68 1009G WORM SHAFT BUSHING 1.65
69 10DK0 WORM SHAFT GEAR 9.35
70 107FA BALL BEARING (7 X 11 X 3) 7.15
71 10293 DRIVE GEAR 17.05
72 1055H FIXING BOLT 1.65
73 10DZ3 WASHER 2.20
74 1009W COVER FLANGE SEAL 2.75
75 1017Y INNER GERI HITARI 1.65
77 10M2G FIXING BOLT 1.10
78 10PXV HANDLE SHAFT SEAL 2.75
79 100A0 HANDLE SHAFT FLANGE (B) 6.05
80 10H9N HANDLE WASHER 1.65
82 10PXZ HANDLE KNOB BUSH 1.65
84 101BD HANDLE KNOB BUSHING 2.75
86 10LFA FIXING BOLT 1.10
89 10RS0 BODY GUARD 6.05
90 10PRZ FIXING BOLT 1.65
91 10182 WORM SHAFT PIN PUSH PLATE 1.65
92 1009L WORM SHAFT PIN COLLAR 1.65
93 100WX O-RING 1.65
94 10RKQ WASHER 2.20
95 1018D WORM SHAFT PIN 6.05
96 10DYR MAIN SHAFT ASSEMBLY 20.35
97 10DK2 INTERMEDIATE GEAR (S) 8.25
98 10TBA WASHER 1.65
99 10DJM INTERMEDIATE GEAR (L) 9.35
100 10QG5 FIXING BOLT 1.10
101 10S7C WORM SHAFT COVER 1.65
102 1009C WORM SHAFT BUSHING 1.65
103 10ECK WASHER 1.10
104 101BS WASHER 2.75
105 10DVY WORM SHAFT 6.05
106 10DVX SLIDER GUIDE (A) 1.65
107 100WP FIXING BOLT 1.65
108 10L6D FIXING BOLT 1.10
109 10L6N FIXING BOLT 1.65
110 108WH O-RING 1.65
111 10RSK HANDLE SCREW CAP 3.85
112 10RTV SPOOL WASHER 2.75
113 101TA SPOOL WASHER 2.20
114 104JZ BALL BEARING (5 X 8 X 2.5) 13.75
205 10DZJ HANDLE 28.05
301 10QBU SMALL SIZE WASHER 6.05
302 10345 DRAG WASHERS 6.05
303 102XW EAR WASHERS 1.65
304 10BCG OVAL WASHERS 2.75
305 10C1A DRAG WASHERS 6.05
306 10BQF SPOOL PIN SPRING 1.65
307 102H5 SPOOL PIN 1.65
308 10A6F FIXING BOLT 1.65
309 10E1N SPOOL ASSEMBLY 62.15
310 10DZF COVER ASSEMBLY 22.55
312 10R38 HANDLE KNOB 17.05
313 10R3A HANDLE CAP 3.85
314 10E1L HANDLE ASSEMBLY 56.10
315 10SAD WASHER 17.05
MH01 13NNB NAMEPLATE ON THE BACK OF THE LEG 2.75
PUNT 13FM2 INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORIES) 3.85
