[SHIMANO] Genuine Spare Parts for 16 STRADIC CI4+ 2500HGS Product Code: 034915 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.77 - US$47.36 [Regular Price: US$1.10 - US$67.65]
Prices vary according to options.
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.
- Genuine Spool Purchase
* If you just want the genuine spool (No.102 / Spool Unit), you can purchase
it from the following link without waiting for weeks if it's in our stock
now.
https://www.hedgehog-studio.co.jp/product/3104

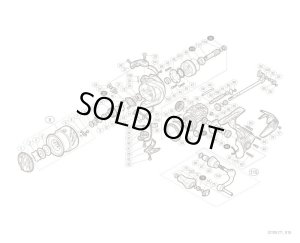

Reel Part's Schematic Diagram |
* Circled figures indicate bearings.
* Please note disassembly is at your own risk.
No. | S Part No. | Description | Price (USD) |
1 | 10DLV | DRAG KNOBS | 17.05 |
2 | 10MZX | STOPPER SPRING | 1.65 |
3 | 10BBM | OVAL WASHERS | 1.65 |
4 | 102ZQ | DRAG WASHER | 1.65 |
5 | 10TNY | SPOOL PIN SPRING | 1.65 |
6 | 10TNW | SPOOL PIN | 1.65 |
7 | 10TRB | FIXING BOLT | 1.65 |
8 | 13AQV | SPOOL ASSEMBLY | 67.65 |
9 | 10BU7 | SPOOL WASHER SET | 1.10 |
10 | 10PN3 | SET SCREW (M2 X 5) | 1.65 |
11 | 10LWF | MAIN SHAFT BEARING GUIDE | 3.85 |
12 | 10J3F | SPOOL BUSH | 1.65 |
13 | 10G6S | WASHER | 1.65 |
14 | 107V1 | DRAG SOUNDING SILATCHET | 2.75 |
15 | 103PD | SPOOL RECEIVER | 1.65 |
16 | 107V3 | RATCHET SPRING | 1.65 |
17 | 10PME | FIXING BOLT | 1.10 |
18 | 10TRH | RETAINER | 2.75 |
19 | 107L4 | ROTOR BEARING SEAL | 2.75 |
20 | 1067Y | ROTOR NUT | 3.85 |
21 | 10GAS | LINE ROLLER BEARING COLLAR | 2.75 |
22 | 10DPT | LINE ROLLER ASSEMBLY | 22.55 |
23 | 10TRL | LINE ROLLER BEARING COLLAR | 2.75 |
24 | 1079V | LINE ROLLER BEARING COLLARS | 1.65 |
25 | 10CH0 | BAIL TRIP LEVER CLICK SPRING | 1.65 |
27 | 10DNU | ARM CAM | 6.05 |
28 | 10K40 | FIXING BOLT | 2.75 |
29 | 10PS5 | FIXING BOLT | 1.65 |
33 | 10TRE | INSIDE GERI LEVER | 2.75 |
34 | 1018Z | WAGON | 1.65 |
35 | 10TPC | ARM FIXING SHAFT | 6.05 |
36 | 1061L | ARM SPRING GUIDE (A) | 3.85 |
37 | 10TYE | SPRING GUIDE (A) COLLAR | 1.65 |
39 | 107AB | ARM CAM SPRING SEAT | 2.75 |
40 | 10TRC | ARM SPRING GUIDE (A) COLLAR BUSH | 1.65 |
41 | 10DPV | BAIL ASSEMBLY | 45.10 |
42 | 10TPJ | BAIL MOUNTING BRACKET COVER | 9.35 |
43 | 10PS7 | FIXING BOLT | 1.10 |
44 | 10JHG | ROTOR COLLAR | 3.85 |
45 | 103C6 | FIXING BOLT | 1.10 |
46 | 10L62 | ROLLER CLUTCH COVER PLATE | 1.65 |
47 | 10MH6 | ROLLER CLUTCH SEAL | 3.85 |
49 | 10MLU | O-RING | 3.85 |
52 | 104JZ | BALL BEARING (5 X 8 X 2.5) | 13.75 |
53 | 104FV | FRICTION RING | 2.75 |
54 | 10TQF | INNER GERI HITARI | 1.65 |
55 | 10CLD | INTERMEDIATE GEAR (B) SHAFT | 3.85 |
56 | 10HBH | WORM SHAFT GEAR | 3.85 |
57 | 104PP | BALL BEARING (7X11X3) | 13.75 |
59 | 10JDC | ADJUSTMENT WASHER SET | 1.10 |
60 | 104JD | BALL BEARING (7X13X4) | 13.75 |
61 | 10CBD | LID FLANGE SEAL | 2.75 |
63 | 10TND | FIXING BOLT | 1.65 |
64 | 10TP1 | FIXING BOLT | 1.10 |
65 | 10M2L | FIXING BOLT | 1.10 |
66 | 10PXV | HANDLE SHAFT SEAL | 2.75 |
67 | 10C82 | HANDLE SHAFT FLANGE (B) | 3.85 |
68 | 10TNN | HANDLE SHAFT FLANGE | 12.65 |
70 | 10PXZ | HANDLE KNOB BUSH | 1.65 |
72 | 104FH | WASHER | 2.20 |
73 | 104VX | BALL BEARING (4X7X2.5) | 13.75 |
74 | 10LFA | FIXING BOLT | 1.10 |
75 | 10TNJ | HANDLE CAP | 3.85 |
77 | 10PRZ | FIXING BOLT | 1.65 |
78 | 10TN4 | BODY GUARD | 11.55 |
79 | 10LCD | FIXING BOLT | 1.65 |
80 | 10HAK | WORM SHAFT PIN PUSH PLATE | 1.65 |
81 | 10JXM | WORM SHAFT PIN COLLAR | 1.65 |
82 | 10RKQ | WASHER | 2.20 |
84 | 10DMX | MAIN SHAFT ASSEMBLY | 20.35 |
85 | 106RH | INTERMEDIATE GEAR (SMALL) | 2.75 |
86 | 10B7U | WASHER | 1.65 |
88 | 106MA | WORM SHAFT BUSHING | 1.65 |
89 | 10LHQ | FIXING BOLT | 1.10 |
90 | 10ATJ | WORM SHAFT COVER | 1.65 |
91 | 106CN | WORM SHAFT BUSHING | 1.65 |
93 | 1068G | WORM SHAFT | 6.05 |
94 | 10JAC | O-RING | 1.65 |
95 | 10H17 | SLIDER GUIDE (A) | 1.65 |
96 | 10TRN | BODY | 22.55 |
98 | 10N4J | HANDLE SCREW CAP | 11.55 |
99 | 10DN8 | FIXING BOLT | 1.10 |
101 | 101Z0 | BALANCER GUARD ASSEMBLY | 9.35 |
102 | 10TP6 | ROTOR | 28.05 |
104 | 10HEP | WASHER | 1.10 |
105 | 104Q5 | BALL BEARING (7X14X5) | 13.75 |
106 | 10CHA | BAIL TRIP LEVER CLICK PIN | 1.65 |
107 | 108WH | O-RING | 1.65 |
108 | 10ECK | WASHER | 1.10 |
109 | 106UZ | WORM SHAFT PIN | 3.85 |
110 | 105R6 | ARM CAM SPRING | 1.65 |
113 | 13DUG | KIFTER WITH LEG | 22.55 |
114 | 10DLF | HANDLE | 28.05 |
115 | 10DG3 | HANDLE ASSEMBLY | 50.60 |
117 | 101SS | PINION GEAR | 12.65 |
118 | 101WY | DRIVE GEAR ASSEMBLY | 22.55 |
119 | 10R3M | INTERMEDIATE GEAR (LARGE) | 6.05 |
221 | 10QPN | ROLLER CLUTCH ASSEMBLY | 11.55 |
222 | 10328 | HANDLE KNOB | 11.55 |
BNKI | 13B42 | EXPLODED VIEW (ACCESSORY) | 1.65 |
ITOS | 10G4L | SPOOL THREAD STOPPER SEAL (ACCESSORY) | 1.65 |
MH01 | 13B00 | NAMEPLATE ON THE BACK OF THE LEG | 2.75 |
TRST | 13PMK | INSTRUCTION MANUAL (ACCESSORY) | 1.65 |
