[SHIMANO] Genuine Spare Parts for 16 STRADIC CI4+ 2500S Product Code: 034908 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 16 STRADIC CI4+ 2500S Product Code: 034908 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 - US$40.59 [Regular Price: US$1.10 - US$67.65]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.102 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/3104

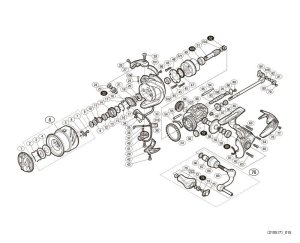

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10DLV DRAG KNOBS 17.05
2 10MZX STOPPER SPRING 1.65
3 10BBM OVAL WASHERS 1.65
4 102ZQ DRAG WASHER 1.65
5 10TNY SPOOL PIN SPRING 1.65
6 10TNW SPOOL PIN 1.65
7 10TRB FIXING BOLT 1.65
8 13AQV SPOOL ASSEMBLY 67.65
9 10BU7 SPOOL WASHER SET 1.10
10 10PN3 SET SCREW (M2 X 5) 1.65
11 10LWF MAIN SHAFT BEARING GUIDE 3.85
12 10J3F SPOOL BUSH 1.65
13 10G6S WASHER 1.65
14 107V1 DRAG SOUNDING SILATCHET 2.75
15 103PD SPOOL RECEIVER 1.65
16 107V3 RATCHET SPRING 1.65
17 10PME FIXING BOLT 1.10
18 10TRH RETAINER 2.75
19 107L4 ROTOR BEARING SEAL 2.75
20 1067Y ROTOR NUT 3.85
21 10GAS LINE ROLLER BEARING COLLAR 2.75
22 10DPT LINE ROLLER ASSEMBLY 22.55
23 10TRL LINE ROLLER BEARING COLLAR 2.75
24 1079V LINE ROLLER BEARING COLLARS 1.65
25 10CH0 BAIL TRIP LEVER CLICK SPRING 1.65
27 10DNU ARM CAM 6.05
28 10K40 FIXING BOLT 2.75
29 10PS5 FIXING BOLT 1.65
33 10TRE INSIDE GERI LEVER 2.75
34 1018Z WAGON 1.65
35 10TPC ARM FIXING SHAFT 6.05
36 1061L ARM SPRING GUIDE (A) 3.85
37 10TYE SPRING GUIDE (A) COLLAR 1.65
39 107AB ARM CAM SPRING SEAT 2.75
40 10TRC ARM SPRING GUIDE (A) COLLAR BUSH 1.65
41 10DPV BAIL ASSEMBLY 45.10
42 10TPJ BAIL MOUNTING BRACKET COVER 9.35
43 10PS7 FIXING BOLT 1.10
44 10JHG ROTOR COLLAR 3.85
45 103C6 FIXING BOLT 1.10
46 10L62 ROLLER CLUTCH COVER PLATE 1.65
47 10MH6 ROLLER CLUTCH SEAL 3.85
49 10MLU O-RING 3.85
51 10C4Z PINION GEAR 12.65
52 104JZ BALL BEARING (5 X 8 X 2.5) 13.75
53 104FV FRICTION RING 2.75
54 10TQF INNER GERI HITARI 1.65
55 10CLD INTERMEDIATE GEAR (B) SHAFT 3.85
56 10HBH WORM SHAFT GEAR 3.85
57 104PP BALL BEARING (7X11X3) 13.75
58 10A8R DRIVE GEAR SET 22.55
59 10JDC ADJUSTMENT WASHER SET 1.10
60 104JD BALL BEARING (7X13X4) 13.75
61 10CBD LID FLANGE SEAL 2.75
62 13DUF KIFTER WITH LEGS 22.55
63 10TND FIXING BOLT 1.65
64 10TP1 FIXING BOLT 1.10
65 10M2L FIXING BOLT 1.10
66 10PXV HANDLE SHAFT SEAL 2.75
67 10C82 HANDLE SHAFT FLANGE (B) 3.85
68 10TNN HANDLE SHAFT FLANGE 12.65
69 10DLE HANDLE SHAFT FLANGE (A) 28.05
70 10PXZ HANDLE 1.65
72 104FH WASHER 2.20
73 104VX BALL BEARING (4X7X2.5) 13.75
74 10LFA FIXING BOLT 1.10
75 10TNJ HANDLE CAP 3.85
76 10DG2 HANDLE ASSEMBLY 50.60
77 10PRZ FIXING BOLT 1.65
78 10TN4 BODY GUARD 11.55
79 10LCD FIXING BOLT 1.65
80 10HAK WORM SHAFT PIN PUSH PLATE 1.65
81 10JXM WORM SHAFT PIN COLLAR 1.65
82 10RKQ WASHER 2.20
84 10DMX MAIN SHAFT ASSEMBLY 20.35
85 106RH INTERMEDIATE GEAR (SMALL) 2.75
86 10B7U WORM SHAFT PIN WASHER 1.65
87 10CQN INTERMEDIATE GEAR (LARGE) 6.05
88 106MA WORM SHAFT BUSHING 1.65
89 10LHQ FIXING BOLT 1.10
90 10ATJ WORM SHAFT COVER 1.65
91 106CN WORM SHAFT BUSHING 1.65
93 1068G WORM SHAFT 6.05
94 10JAC O-RING 1.65
95 10H17 SLIDER GUIDE (A) 1.65
96 10TRN BODY 22.55
98 10N4J HANDLE SCREW CAP 11.55
99 10DN8 FIXING BOLT 1.10
101 101Z0 BALANCER GUARD ASSEMBLY 9.35
102 10TP6 ROTOR 28.05
104 10HEP WASHER 1.10
105 104Q5 BALL BEARING (7X14X5) 13.75
106 10CHA BAIL TRIP LEVER CLICK PIN 1.65
107 108WH O-RING 1.65
108 10ECK WASHER 1.10
109 106UZ WORM SHAFT PIN 3.85
110 105R6 ARM CAM SPRING 1.65
221 10QPN ROLLER CLUTCH ASSEMBLY 11.55
222 10328 HANDLE KNOB 11.55
BNKI 13B42 EXPLODED VIEW (ACCESSORY) 1.65
ITOS 10G4L SPOOL THREAD STOPPER SEAL (ACCESSORY) 1.65
MH01 13AZZ NAMEPLATE ON THE BACK OF THE LEG 2.75
TRST 13PMK INSTRUCTION MANUAL (ACCESSORY) 1.65
