[SHIMANO] Genuine Spare Parts for 16 STRADIC CI4+ C2000S Product Code: 034878 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 16 STRADIC CI4+ C2000S Product Code: 034878 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$39.27 [Regular Price: US$1.10 - US$56.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.102 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/3001

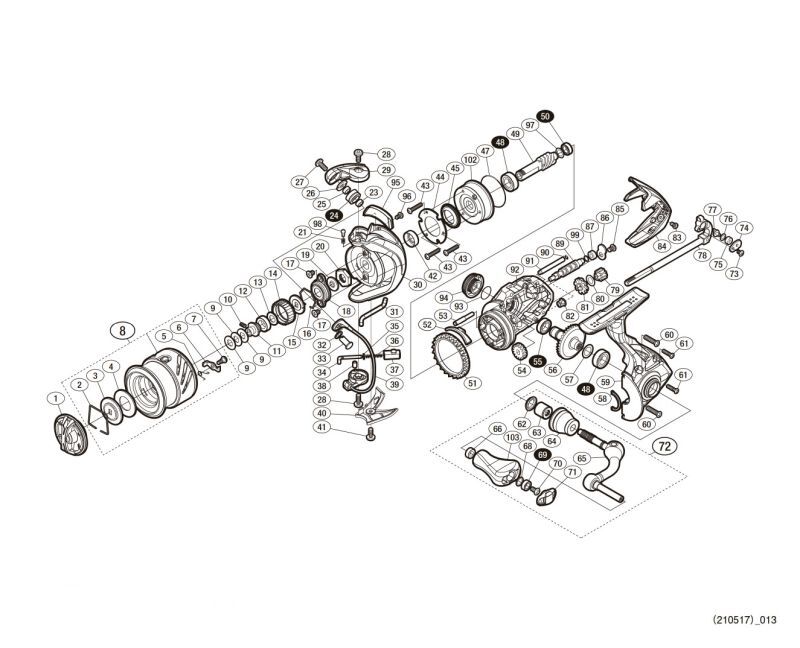

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10GGH DRAG KNOBS 17.05
2 10B87 STOPPER SPRING 1.65
3 10BBM OVAL WASHERS 1.65
4 102ZG DRAG WASHER 1.65
5 10DNN SPOOL PIN SPRING 1.65
6 10DNJ SPOOL PIN 1.65
7 10TRB FIXING BOLT 1.65
8 13CER SPOOL ASSEMBLY 56.10
9 10BU7 SPOOL WASHER SET 1.10
10 10PN3 SET SCREW (M2 X 5) 1.65
11 10LWF MAIN SHAFT BEARING GUIDE 3.85
12 10J3F SPOOL BUSH 1.65
13 10G6R BAIL MOUNTING KECAM FIXING SHAFT PLATE 1.65
14 10DML DRAG SOUNDING SILATCHET 2.75
15 103PD SPOOL BEARING PLATE 1.65
16 107V3 RATCHET SPRING 1.65
17 1055M FIXING BOLT 1.10
18 10DMB RETAINER 2.75
19 107L4 ROTOR BEARING SEAL 2.75
20 10TPL ROTOR NUT 3.85
21 10CH0 BAIL TRIP LEVER CLICK SPRING 1.65
23 10GAS LINE ROLLER BEARING COLLAR 2.75
24 10DPT LINE ROLLER ASSEMBLY 22.55
25 10TRL LINE ROLLER BEARING COLLAR 2.75
26 1079V LINE ROLLER BEARING COLLARS 1.65
27 10K40 FIXING BOLT 2.75
28 10PS5 FIXING BOLT 1.65
29 10DNT ARM CAM 6.05
30 10DNQ ROTOR 28.05
31 10DM9 INSIDE GERI LEVER 2.75
32 1018Z WASHER 1.65
33 10TPC ARM FIXING SHAFT 6.05
34 1061L ARM SPRING GUIDE (A) 3.85
35 10TYE SPRING GUIDE (A) COLLAR 1.65
36 10R2N ARM CAM SPRING 1.65
37 107AB ARM CAM SPRING SEAT 2.75
38 10TRC ARM SPRING GUIDE (A) COLLAR BUSH 1.65
39 1020F BAIL ASSEMBLY 45.10
40 10DNY BAIL MOUNTING BRACKET COVER 9.35
41 10PS2 FIXING BOLT 1.65
42 10JHG ROTOR COLLAR 3.85
43 103C6 FIXING BOLT 1.10
44 10L62 ROLLER CLUTCH COVER PLATE 1.65
45 10MH6 ROLLER CLUTCH SEAL 3.85
47 10MLU O-RING 3.85
48 104JD BALL BEARING (7 X 13 X 4) 13.75
49 10C4X PINION GEAR 12.65
50 104JZ BALL BEARING (5 X 8 X 2.5) 13.75
51 104FV FRICTION RING 2.75
52 10TQF INNER GERI HITARI 1.65
53 10CLD INTERMEDIATE GEAR (B) SHAFT 3.85
54 10HBH WORM SHAFT GEAR 3.85
55 104PP BALL BEARING (7X11X3) 13.75
56 10A5X DRIVE GEAR SET 22.55
57 10JDC ADJUSTMENT WASHER SET 1.10
58 10CBD LID FLANGE SEAL 2.75
59 101YU KIFTER WITH LEGS 22.55
60 10DNA FIXING BOLT 1.65
61 10TP1 FIXING BOLT 1.10
62 10PXV HANDLE SHAFT SEAL 2.75
63 10C82 HANDLE SHAFT FLANGE (B) 3.85
64 10DN4 HANDLE SHAFT FLANGE 12.65
65 101YV HANDLE 28.05
66 10PXZ HANDLE KNOB BUSH 1.65
68 104FH WASHER 2.20
69 104VX BALL BEARING (4X7X2.5) 13.75
70 10LFA FIXING BOLT 1.10
71 10TNJ HANDLE CAP 3.85
72 10DLG HANDLE ASSEMBLY 50.60
73 10LCD FIXING BOLT 1.65
74 10HAJ WORM SHAFT PIN PUSH PLATE 1.65
75 10JXT WORM SHAFT PIN COLLAR 1.65
76 10RKQ WASHER 2.20
77 106UZ WORM SHAFT PIN 3.85
78 101YM MAIN SHAFT ASSEMBLY 20.35
79 106RH INTERMEDIATE GEAR (SMALL) 2.75
80 10B7U WORM SHAFT PIN COLLAR 1.65
81 10CQS INTERMEDIATE GEAR (LARGE) 6.05
82 106M9 WORM SHAFT BUSHING 1.65
83 10PRZ FIXING BOLT 1.65
84 10DM3 BODY GUARD 11.55
85 10LHQ FIXING BOLT 1.10
86 10ATJ WORM SHAFT COVER 1.65
87 106CN WORM SHAFT BUSHING 1.65
89 1068F WORM SHAFT 6.05
90 10JAC O-RING 1.65
91 10H17 SLIDER GUIDE (A) 1.65
92 10DME BODY 22.55
93 10909 O-RING 1.65
94 10N4L HANDLE SCREW CAP 11.55
95 101YZ BALANCER GUARD ASSEMBLY 9.35
96 10DN8 FIXING BOLT 1.10
97 10HEP WASHER 1.10
98 10CHA BAIL TRIP LEVER CLICK PIN 1.65
99 10ECK WASHER 1.10
102 10QPN ROLLER CLUTCH ASSEMBLY 11.55
103 10328 HANDLE KNOB 11.55
BNKI 13B42 EXPLODED VIEW (ACCESSORIES) 1.65
ITOS 10G4L SPOOL THREAD STOPPER SEAL (ACCESSORY) 1.65
MH01 13NFM NAMEPLATE ON THE BACK OF THE LEG 2.75
TRST 13PMK INSTRUCTION MANUAL (ACCESSORY) 1.65
