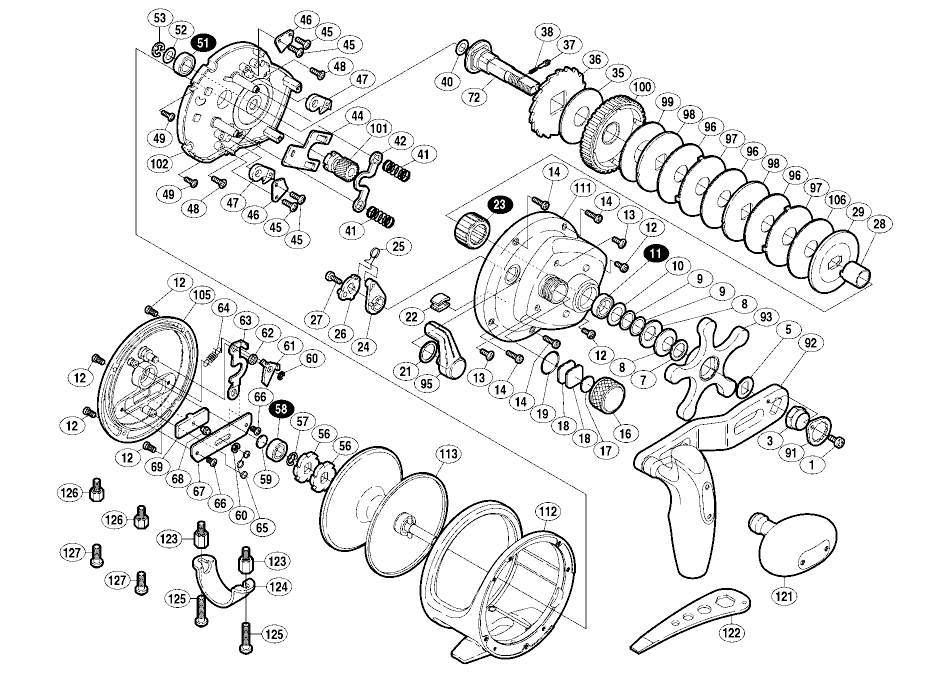

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13QN9 REEL BAG 7.15
1 10QG0 FIXING BOLT 1.10
3 10FT6 HANDLE FIXING NUT 2.75
5 107QX CROSS GEAR ADJUSTMENT WASHER 1.65
7 10J1R STAR DRAG SPACER 2.75
8 10EW4 SALA SPRING 10L 1.65
9 10HZ0 MAIN GEAR SHAFT W 1.65
10 105U6 MAIN GEAR SHAFT SEAL WASHER 1.10
11 10KX6 BALL BEARING (10 X 15 X 4) 9.35
12 10LVR MAIN UNIT FIXING BOLT (SHORT) 1.65
13 103H8 MAIN UNIT A FIXING BOLT C (SHORT - LARGE HEAD) 1.10
14 10MBK FIXING BOLT 1.65
16 10KTE SPOOL DRAG KNOB 3.85
17 10896 MECHANICAL BRAKE WASHER 1.10
18 105N0 SPOOL DRAG WASHER 1.10
19 108WK O-RING SM14 1.65
21 10JYS CLUTCH LEVER WASHER 1.65
22 106NU THREAD STOPPER 1.65
23 10F5B ROLLER CLUTCH BEARING A-RB 22.55
24 10L29 CLUTCH CAM COLLAR 3.85
25 10JYU CLUTCH LEVER SPRING 1.65
26 1084F CLUTCH CAM 3.85
27 10F8M CLUTCH SWITCHING ELEVATOR FIXING BOLT 2.75
28 10BQ1 INNER TUBE ARB 6.05
29 10D4R STAR DRAG WASHER 1.65
35 10CLW STAR DRAG WASHER (A) 6.05
36 10DAJ STOPPER GEAR 3.85
37 109ZZ STAR DRAG CLICK PIN 1.65
38 10HZ5 STAR DRAG CLICK SPRING 1.65
40 109RF MAIN GEAR SHAFT SEAL WASHER 1.65
41 104C0 CLUTCH YOKE SPRING 1.65
42 1060X CLUTCH YOKE 2.75
44 1045J CLUTCH LEVER PLATE 3.85
45 103CK FIXING BOLT 1.10
46 10KVE STOPPER FIXING PLATE 1.65
47 10MWB STOPPER CLAW ASSEMBLY 3.85
48 10MLH FIXING BOLT 1.10
49 103ED FIXING BOLT 1.10
51 104JR BALL BEARING (6X10X3) 9.35
52 10HWX MAIN GEAR SHAFT ADJUSTMENT WASHER 1.65
53 105NJ E TYPE STOPPER RING 4 1.10
56 13T5C F STOPPER GEAR 1.65
57 105RY E TYPE RETAINING RING 5 1.10
58 10KAM BALL BEARING (6X13X5) 9.35
59 10GEU CROSS GEAR SHAFT CONTACT 1.10
60 105NE TYPE E STOPPER WHEEL 3 1.10
61 10905 F STOPPER CLAW 1.65
62 13T5F F STOPPER RECEIVER 1.65
63 13T4R F STOPPER LEVER 2.75
64 10CBR F STOPPER CLAW SPRING 1.65
65 104C7 CLUTCH LEVER SPRING 1.65
66 103L0 FIXING BOLT 1.10
67 13T5X F STOPPER KNOB PUSH FLY 1.65
68 13T5V F STOPPER KNOB FIXING SHAFT 1.65
69 13H2Y F STOPPER KNOB ASSEMBLY 3.85
72 10D5W MAIN GEAR SHAFT 11.55
91 13V5H RETAINER 1.65
92 13J57 HANDLE ASSEMBLY 78.65
93 13HXP STAR DRAG ASSEMBLY 17.05
95 13U6B CLUTCH SWITCHING LEVER 3.85
96 13V7P STAR DRAG WASHER (D) 6.05
97 13V80 STAR DRAG WASHER (E) 1.65
98 13V76 STAR DRAG WASHER 1.65
99 13UT8 STAR DRAG WASHER 6.05
100 13UPW MAIN GEAR 22.55
101 13SKW PINION GEAR 17.05
102 13H1L BODY A FIXING PLATE ASSEMBLY 34.10
105 13FPL MAIN BODY B 67.65
106 13V8L STAR DRAG WASHER (F) 6.05
111 13HJE MAIN BODY A ASSEMBLY 56.10
112 13G6X MAIN BODY FRAME ASSEMBLY 134.75
113 13GPP SPOOL ASSEMBLY 78.65
121 13EMS ROUND HANDLE GRIP SET (ACCESSORY) 40.70
122 10MJ5 SPOOL WRENCH (ACCESSORY) 3.85
123 13WW8 ROD CLAMP NUT (ACCESSORY) 3.85
124 13WW4 ROD CLAMP (ACCESSORY) 6.05
125 13WW7 ROD CLAMP BOLT (ACCESSORY) 2.75
126 13WXR ROD CLAMP NUT S (ACCESSORY) 3.85
127 13WXQ ROD CLAMP BOLT S (ACCESSORY) 2.75
BNKI 13WR3 EXPLODED VIEW 1.65
K030 10L8E STAR DRAG WASHER 6.05
K031 10KQJ STAR DRAG WASHER (E) 1.65
K032 10L55 STAR DRAG WASHER (C) 1.65
K033 10D3C STAR DRAG WASHER (B) 6.05
K034 13UPV MAIN GEAR 22.55
K043 13SKV PINION GEAR 17.05
K071 109QG STAR DRAG WASHER (F) 6.05
OIL1 10LQ0 B-100 OIL (4.5 G) 3.85
TRST 13VP4 INSTRUCTION MANUAL 1.65
