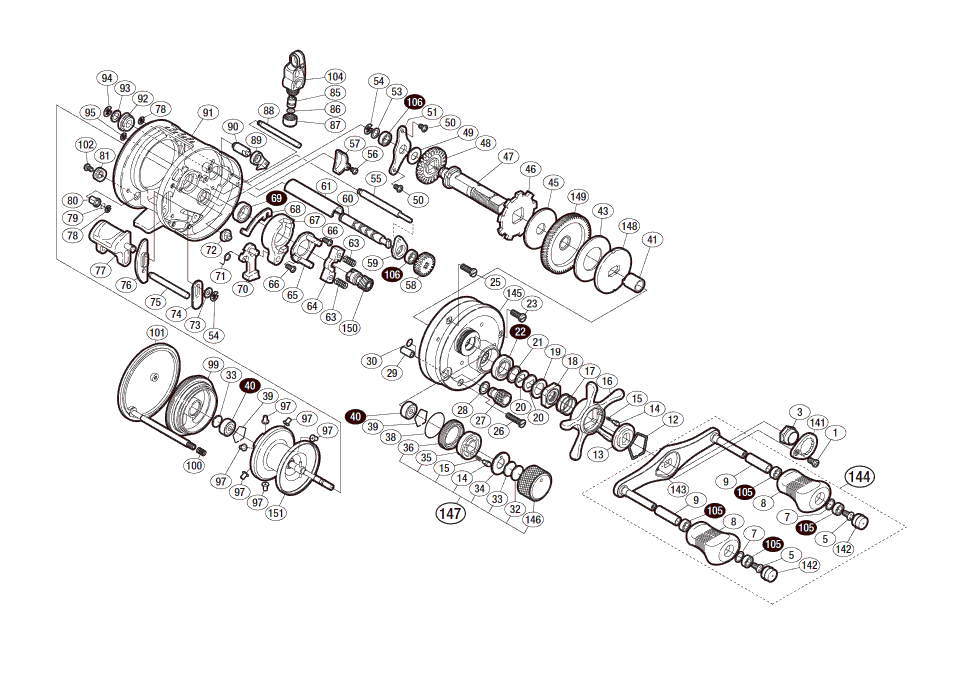

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13WHU REEL BAG (ACCESSORY) 9.35
1 10CZ5 FIXING BOLT 2.75
3 10FNF HANDLE FIXING NUT 2.75
5 103E9 FIXING BOLT 1.10
7 104FH WASHER 2.20
8 13V03 HANDLE GRIP (PADDLE TYPE) 11.55
9 109VL KNOB FIXING SHAFT PIPE 3.85
12 10KXV STAR DRAG CLICK PLATE 1.65
13 10J26 STAR DRAG CLICK PLATE 1.65
14 10BT0 CLICK PIN 1.65
15 10BT2 CLICK SPRING 1.65
16 13UVE STAR DRAG 17.05
17 10A75 STAR DRAG SPRING 2.75
18 10A0T STAR DRAG FIXING NUT 2.75
19 10J1N STAR DRAG SPACER 1.65
20 10D60 MAIN GEAR WASHER (C) 1.65
21 105PW STAR DRAG BEARING WASHER 1.10
22 13FWA STAR DRAG BEARING 13.75
23 10C3M BODY A FIXING BOLT (C) 2.75
25 10JZ1 BODY A FIXING BOLT (A) 2.75
26 13UBY FIXING BOLT (A) 3.85
27 13UBW BODY B SHAFT KNOB 3.85
28 109RH BODY B SHAFT KNOB WASHER 1.10
29 10C42 BODY A FIXING BOLT COLLAR 1.10
30 108WS O-RING 4X6 1.10
32 10896 MECHANICAL BRAKE WASHER 1.10
33 1057S SPOOL SHAFT CONTACT (B) 1.10
34 10L2K SPOOL DRAG KNOB CLICK PLATE 2.75
35 10BSY MECHANICAL B KNOB CLICK PIN HOLDER 2.75
36 10L6Z SPOOL DRAG KNOB SOUND STOP RING 2.75
38 108W8 O-RING S-16 1.65
39 10GEW BEARING EXTRACTION STOPPER 1.10
40 105C0 BALL BEARING (3 X 10 X 4) 13.75
41 10BN6 INNER TUBE A-RB 6.05
43 1071X STAR DRAG WASHER (C) 3.85
45 10CJ3 STAR DRAG WASHER (A) 3.85
46 10D7B STOPPER GEAR 6.05
47 13UHW MAIN GEAR SHAFT 11.55
48 10J74 CROSS GEAR (A) 3.85
49 105MY ADJUSTMENT WASHER 0.1 1.10
50 10MT0 FIXING BOLT 1.10
51 109T3 MAIN GEAR SHAFT FIXING PLATE 1.65
52 104K1 BALL BEARING (5X8X2.5) 13.75
53 10HYP MAIN GEAR SHAFT WASHER 1.10
54 105NK E TYPE STOP RING 2.5 1.10
55 13SD3 LEVEL WINDING GUIDE 2.75
56 10MP9 FIXING BOLT 1.10
57 13RXC WORM SHAFT GEAR COVER 3.85
58 10FP1 CROSS GEAR (C) 1.65
59 10ND8 CROSS GEAR RECEIVER A 1.65
60 13RYN WORM SHAFT 6.05
61 10NJN LEVEL-WIND PIPE 6.05
63 104BG CLUTCH YOKE SPRING 1.10
64 10477 CLUTCH YOKE 1.65
65 10F66 CLUTCH CAM PUSH PLATE 3.85
66 10LVG FIXING BOLT 1.10
67 10K13 CLUTCH CAM 2.75
68 10913 CLUTCH PLATE 2.75
69 10583 BALL BEARING (8X12X3.5) 13.75
70 10601 CLUTCH CLAW 2.75
71 104CV CLUTCH CLAW SPRING 1.10
72 108PU BODY A POSITION DETERMINATION PIN 2.75
73 104H3 CLICK BUTTON WASHER (B) 1.10
74 10ASW CLUTCH LEVER RECEIVER (A) 1.65
75 10PNR CLUTCH LEVER GUIDE 2.75
76 1099V CLUTCH LEVER HOLDER (B) 1.65
77 10MY0 CLUTCH LEVER 6.05
78 105NC E TYPE RETAINING RING 2 1.10
79 10FMS BODY B FIXING BOLT EXTRACTION STOPPER 1.10
80 10AYZ DAMPER BUSHING (A) 2.75
81 108L6 BODY B SHAFT GUIDE 1.65
85 10FFX CROSS GEAR PIN 2.75
86 10CFW ADJUSTMENT WASHER SET 1.10
87 10FJE LEVEL WINDING RECEIVER 2.75
88 13RVK LINE GUARD 2.75
89 10MW3 STOPPER CLAW SET 2.75
90 10PDX STOPPER FIXED SHAFT 2.75
91 13FXK FRAME 112.20
92 104SV CROSS GEAR UKE B 1.65
93 10D66 MAIN GEAR WASHER (D) 1.10
94 105NJ TYPE E RETAINING RING 4 1.10
95 105NB TYPE E RETAINING RING 1.5 1.10
97 10CPC BRAKE COLLAR (CLEAR) 1.65
99 13FVY FRAME B RECEIVER ASSEMBLY 17.05
100 10KNR DAMPER SPRING 1.65
101 13FJQ MAIN BODY B 45.10
102 10MPH FIXING BOLT 1.10
104 13GCV LEVEL-WIND ASSEMBLY 34.10
105 104VX BALL BEARING (4X7X2.5) 13.75
106 104K1 BALL BEARING (5X8X2.5) 13.75
141 13V24 RETAINER 3.85
142 10BDW HANDLE CAP 3.85
143 13HRT HANDLE 28.05
144 13HYX HANDLE ASSEMBLY 67.65
145 13HB5 BODY A ASSEMBLY 78.65
146 13TYQ MECHANICAL BRAKE KNOB 9.35
147 13HAA MECHANICAL BRAKE KNOB ASSEMBLY 21.45
148 13UTD STAR DRAG PLATE 3.85
149 13UMU MAIN GEAR 28.05
150 13SJN PINION GEAR 17.05
151 13GHW SPOOL ASSEMBLY 78.65
BNKI 13WKW EXPLODED VIEW (ACCESSORIES) 1.65
OIL1 10LQ0 B-100 OIL (4.5G) 3.85
RC0A 10F5D ROLLER CLUTCH BEARING A-RB 17.05
TRST 13VJB INSTRUCTION MANUAL (ACCESSORY) 1.65
