[SHIMANO] Genuine Spare Parts for 14 STELLA 4000 Product Code: 032492 **Back-order (Shipping in 3-4 weeks after receiving order)
[SHIMANO] Genuine Spare Parts for 14 STELLA 4000 Product Code: 032492 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.77 - US$117.81 [Regular Price: US$1.10 - US$168.30]
Prices vary according to options.
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.

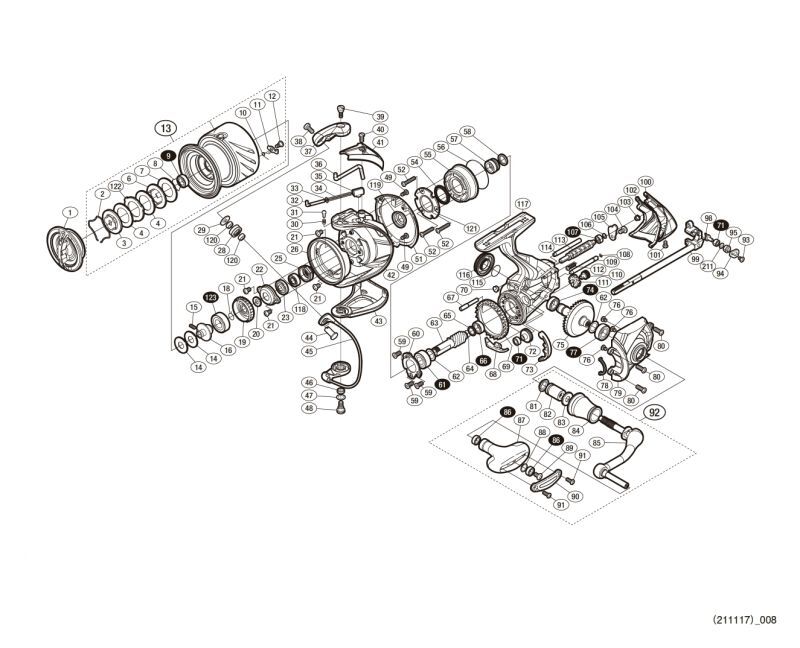

Reel Part's Schematic Diagram |
* Circled figures indicate bearings.
* Please note disassembly is at your own risk.
No. | S Part No. | Description | Price (USD) |
*F01 | 13QPV | REEL BAG (ACCESSORY) | 14.85 |
1 | 102ER | DRAG KNOB | 101.20 |
2 | 10B8J | STOPPER SPRING | 1.65 |
3 | 10QBY | OVAL WASHER | 9.35 |
4 | 102ZP | DRAG WASHER (A) | 1.65 |
6 | 10BBQ | OVAL WASHER | 2.75 |
7 | 10C1D | DRAG WASHER | 1.65 |
8 | 10GEW | BEARING STOPPER | 1.10 |
9 | 104JT | BALL BEARING (6 X 10 X 3) | 13.75 |
10 | 10BQE | SPOOL PIN SPRING | 1.65 |
11 | 10388 | SPOOL PIN | 1.65 |
12 | 10A6F | FIXING BOLT | 1.65 |
13 | 10R66 | SPOOL ASSEMBLY | 165.00 |
14 | 10BSJ | SPOOL WASHER SET | 1.10 |
15 | 10PN2 | SET SCREW | 1.65 |
16 | 10LTS | SPOOL SHAFT BEARING GUIDE | 6.05 |
18 | 107V2 | RATCHET SPRING | 1.65 |
19 | 107PS | DRAG SOUND EMITTING RATCHET | 2.75 |
20 | 103NX | SPOOL RECEIVER | 1.65 |
21 | 103LB | FIXING BOLT | 1.10 |
22 | 1076P | RETAINER | 2.75 |
23 | 107F2 | ROTOR FRAME BEARING SEAL | 2.75 |
25 | 1080X | ROTOR NUT | 9.35 |
26 | 10JHL | ROTOR FLANGE | 9.35 |
28 | 10KXZ | LINE ROLLER | 22.55 |
29 | 10HWT | LINE ROLLER RECEIVER | 1.65 |
30 | 10CH0 | BAIL TRIP LEVER CLICK PIN | 1.65 |
31 | 10CHA | BAIL TRIP LEVER CLICK PIN | 1.65 |
32 | 105YZ | ARM SPRING GUIDE (A) | 3.85 |
33 | 1064R | ARM SPRING GUIDE (A) COLLAR | 1.65 |
34 | 105R5 | ARM CAM SPRING | 1.65 |
35 | 107AA | ARM CAM SPRING SEAT | 2.75 |
36 | 106KT | INNER GERI LEVER | 2.75 |
37 | 10KLR | ARM CAM | 7.15 |
38 | 10A6V | FIXING BOLT | 6.05 |
39 | 109GS | FIXING BOLT | 2.75 |
40 | 10CYU | FIXING BOLT | 2.75 |
41 | 10886 | ARM CAM SPRING COVER | 11.55 |
42 | 10Q1Q | ROTOR | 90.20 |
43 | 10MNK | BALE MOUNTING BRACKET COVER | 17.05 |
44 | 10Q3J | ARM FIXING SHAFT | 6.05 |
45 | 1073L | BAIL ASSEMBLY | 45.10 |
46 | 10K55 | BALE MOUNTING CAM COLLAR | 1.65 |
47 | 10G6C | WASHER | 1.10 |
48 | 109GU | FIXING BOLT | 3.85 |
49 | 10MPP | FIXING BOLT | 1.10 |
51 | 10749 | ROTOR GUARD | 11.55 |
52 | 10MTG | FIXING BOLT | 1.65 |
54 | 10MH3 | ROLLER CLUTCH SEAL | 3.85 |
55 | 10QPJ | ROLLER CLUTCH ASSEMBLY | 12.65 |
56 | 10MLT | O-RING | 3.85 |
57 | 107S5 | ROLLER CLUTCH INNER COLLAR | 2.75 |
58 | 10H4G | ROLLER CLUTCH INNER COLLAR | 1.65 |
59 | 10ML6 | FIXING BOLT | 1.65 |
60 | 10593 | BEARING PUSH PLATE | 2.75 |
61 | 104VF | BALL BEARING (7 X 14 X 5) | 13.75 |
62 | 10JDC | ADJUSTMENT WASHER SET | 1.10 |
63 | 10C22 | PINION GEAR | 20.35 |
64 | 108W6 | O-RING | 1.65 |
65 | 10J6G | PINION GEAR SPACER | 1.65 |
66 | 104JV | BALL BEARING (6 X 10 X 3) | 13.75 |
67 | 10CLB | INTERMEDIATE GEAR SHAFT | 3.85 |
68 | 107DZ | INTERNAL GEAR CONTACT TALLY | 1.65 |
69 | 104FU | FRICTION RING | 3.85 |
70 | 10AYT | BODY FLANGE SEAL | 2.75 |
71 | 10PC0 | BALL BEARING (2 X 5 X 2.5) | 13.75 |
72 | 10HBR | WORM SHAFT GEAR | 9.35 |
73 | 10J3P | FRICTION RING SPACER | 2.75 |
74 | 104PP | BALL BEARING (7 X 11 X 3) | 13.75 |
75 | 10ELA | DRIVE GEAR ASSEMBLY | 39.60 |
76 | 1055G | FIXING BOLT | 1.65 |
77 | 104JD | BALL BEARING (7 X 13 X 4) | 13.75 |
78 | 10CBC | FOOT FLANGE SEAL | 2.75 |
79 | 104D5 | FOOT | 56.10 |
80 | 10M2C | FIXING BOLT | 1.10 |
81 | 10PXU | HANDLE SHAFT SEAL | 2.75 |
82 | 10PQE | HANDLE SHAFT FLANGE (B) | 9.35 |
83 | 10FMF | HANDLE WASHER | 1.65 |
84 | 10C4D | HANDLE SHAFT FLANGE | 22.55 |
85 | 103DP | HANDLE SHAFT FLANGE | 45.10 |
86 | 104VX | BALL BEARING (4 X 7 X 2.5) | 13.75 |
87 | 1040S | HANDLE NIPPLE | 17.05 |
88 | 104FH | HANDLE WASHER (4 X 7 X 2.5MM) | 2.20 |
89 | 103E9 | FIXING BOLT | 1.10 |
90 | 108X1 | HANDLE SAW BLADE NAMEPLATE | 3.85 |
91 | 103NM | FIXING BOLT | 2.75 |
92 | 10NAU | HANDLE ASSEMBLY | 123.75 |
93 | 10MT4 | FIXING BOLT | 1.10 |
94 | 10HAH | WORM SHAFT PIN PUSH PLATE | 1.65 |
95 | 10JXR | WORM SHAFT PIN COLLAR | 2.75 |
98 | 106VM | WORM SHAFT PIN | 4.95 |
99 | 102J1 | MAIN SHAFT ASSEMBLY | 30.80 |
100 | 10NL5 | BODY GUARD | 11.55 |
101 | 106ZG | FIXING BOLT | 1.65 |
102 | 107HK | BODY COVER | 1.65 |
103 | 10AYN | BODY GUARD COLLAR | 2.75 |
104 | 103EA | FIXING BOLT | 2.75 |
105 | 10ATD | WORM SHAFT COVER | 2.75 |
106 | 10J7K | WASHER | 1.10 |
107 | 10PDA | BALL BEARING (3 X 6 X 2.5) | 13.75 |
108 | 10JAB | O-RING | 1.65 |
109 | 104MC | SLIDER GUIDE (B) | 3.85 |
110 | 106VR | INTERMEDIATE GEAR (S) | 8.25 |
111 | 10CQK | INTERMEDIATE GEAR (L) | 9.35 |
112 | 10LPX | FIXING BOLT | 1.10 |
113 | 10688 | WORM SHAFT | 11.55 |
114 | 1035M | SLIDER GUIDE | 3.85 |
115 | 108WA | O-RING | 1.65 |
116 | 10N4G | HANDLE SCREW CAP | 17.05 |
117 | 1037G | BODY | 168.30 |
118 | 103B3 | ROTOR RECEIVER COLLAR ASSEMBLY | 17.05 |
119 | 103SG | ROTOR COLLAR | 6.60 |
120 | 103TX | LINE ROLLER BEARING COLLAR | 5.50 |
121 | 10NHU | ROLLER CLUTCH COVER PLATE | 6.05 |
122 | 10BE6 | EAR WASHER | 6.05 |
123 | 10KXC | BALL BEARING (8 X 16 X 5) | 9.35 |
131 | 10PBS | LEG PROTECTION SHEET (ACCESSORY) | 2.75 |
211 | 10RKQ | WASHER | 2.20 |
BNKI | 13R06 | EXPLODED VIEW (ACCESSORY) | 1.65 |
FRS1 | 13LMK | F-RING SPACER SHEET 0.1 | 1.65 |
FRS2 | 13LML | F-RING SPACER SHEET 0.2 | 1.65 |
FRS3 | 13LMM | F-RING SPACER SHEET 0.3 | 1.65 |
ITOS | 13QPZ | THREAD STOPPER STICKER | 1.65 |
MH01 | 13NDS | NAMEPLATE ON THE BACK OF THE LEG | 3.85 |
SI00 | 13QUF | CAUTIONARY NOTE | 1.65 |
TRST | 13PMG | INSTRUCTION MANUAL (ACCESSORY) | 1.65 |
