[SHIMANO] Genuine Spare Parts for 16 Vanquish C3000 Product Code: 035028 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 16 Vanquish C3000 Product Code: 035028 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$110.11 [Regular Price: US$1.10 - US$157.30]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

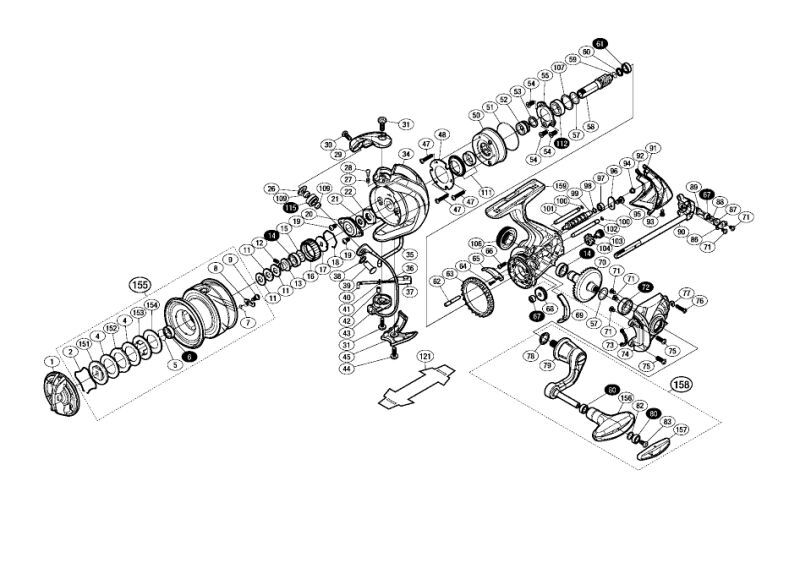

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13B3S REEL BAG (ACCESSORY) 13.75
1 10QYM DRAG KNOB SET 28.05
2 10B8J STOPPER SPRING 1.65
4 102ZP DRAG WASHER (A) 1.65
5 10GEW BEARING STOPPER 1.10
6 104JT BALL BEARING (6 X 10 X 3) 13.75
7 10BQE SPOOL PIN SPRING 1.65
8 10388 SPOOL PIN 1.65
9 10A6F FIXING BOLT 1.65
11 10BU7 SPOOL WASHER SET 1.10
12 10PN2 SET SCREW 1.65
13 10LTR SPOOL SHAFT BEARING GUIDE 6.05
14 104PP BALL BEARING (7 X 11 X 3) 13.75
15 102VD WASHER 1.10
16 107V0 DRAG CLICK SILATCHET 2.75
17 103PC SPOOL RECEIVER 1.65
18 107V3 RATCHET SPRING 1.65
19 10PMD FIXING BOLT 1.10
20 10R2K RETAINER 2.75
21 107L5 ROTOR BEARING SEAL 2.75
22 10R2D ROTOR NUT 3.85
26 1079U ARM ROLLER RECEIVER 1.65
27 10CH0 BAIL TRIP LEVER CLICK SPRING 1.65
28 10CHA BAIL TRIP LEVER CLICK PIN 1.65
29 10R2A ARM CAM 6.05
30 10K40 FIXING BOLT 2.75
31 10PS5 FIXING BOLT 1.65
34 10EFL ROTOR 56.10
35 10R2G BAIL TRIP LEVER 2.75
36 10R2P ARM CAM SPRING 1.65
37 10R2E ARM CAM SPRING GUIDE (B) 2.75
38 10R3U WASHER 1.65
39 10L01 ARM FIXED SHAFT 2.75
40 105YZ ARM SPRING GUIDE (A) 3.85
41 1064R ARM SPRING GUIDE (A) COLLAR 1.65
42 10R2F ARM SPRING GUIDE (A) COLLAR BUSH 1.65
43 10EF6 BAIL ASSEMBLY 45.10
44 10PS6 FIXING BOLT 1.10
45 10R2C BAIL MOUNTING BRACKET COVER 9.35
47 10MTG FIXING BOLT 1.65
48 10L61 ROLLER CLUTCH COVER PLATE 1.65
50 10QYK ROLLER CLUTCH ASSEMBLY 12.65
51 10MLT O-RING 3.85
52 107S5 ROLLER CLUTCH INNER COLLAR 2.75
53 10H4G ROLLER CLUTCH INNER COLLAR 1.65
54 10ML6 FIXING BOLT 1.65
55 10593 BEARING PUSH PLATE 2.75
57 10JDC ADJUSTMENT WASHER SET 1.10
58 10R2V PINION GEAR 20.35
59 10CJV CROSS GEAR SHAFT COLLAR 2.75
60 10J6F PINION GEAR SPACER 1.65
61 104JY BALL BEARING (5 X 8 X 2.5) 13.75
62 10R3L INTERMEDIATE GEAR SHAFT 3.85
63 104FU FRICTION RING 3.85
64 10R1M FIXING BOLT 1.65
65 10R31 INTERNAL GEARS 1.65
66 10LPJ FIXING BOLT 1.65
67 10PC0 BALL BEARING (2 X 5 X 2.5) 13.75
68 10HBQ WORM SHAFT GEAR 9.35
69 10J3N FRICTION RING SPACER 2.75
70 10EF8 DRIVE GEAR ASSEMBLY 28.05
71 1055G FIXING BOLT 1.65
72 104JD BALL BEARING (7 X 13 X 4) 13.75
73 10CBC COVER FLANGE SEAL 2.75
74 10DFR FOOT 56.10
75 10M2C FIXING BOLT 1.10
76 10LV4 FIXING BOLT 1.65
77 10C2G COVER FIXING BOLT WASHER 2.75
78 10PXW HANDLE SHAFT SEAL 2.75
79 10DFS HANDLE 67.65
80 104VX BALL BEARING (4 X 7 X 2.5) 13.75
82 104FH WASHER 2.20
83 103E9 FIXING BOLT 1.10
86 10HAG WORM SHAFT PIN PUSH PLATE 1.65
87 10JXQ WORM SHAFT PIN COLLAR 2.75
88 10RKQ WORM SHAFT PIN WASHER 2.20
89 106VL WORM SHAFT PIN 4.95
90 102J5 MAIN SHAFT ASSEMBLY 28.05
91 10NL4 BODY GUARD 11.55
92 107HJ BODY COVER 1.65
93 106ZG FIXING BOLT 1.65
94 10AYN BODY GUARD COLLAR 2.75
95 103EB FIXING BOLT 1.65
96 10ATB WORM SHAFT COVER 1.65
97 106CM CROSS GEAR BUSH (FRONT) 1.65
98 10J7K WASHER 1.10
99 10R34 WORM SHAFT 11.55
100 10JAB O-RING 1.65
101 1035L SLIDER GUIDE (A) 3.85
102 104MB SLIDER GUIDE (B) 3.85
103 106VQ INTERMEDIATE GEAR (S) 8.25
104 10CQF INTERMEDIATE GEAR (L) 9.35
106 10N3S HANDLE SCREW CAP 6.05
107 10HV8 WASHER 1.10
109 1020K LINE ROLLER BEARING COLLAR 5.50
111 10SD3 ROLLER CLUTCH SEAL ASSEMBLY 11.55
112 104JH BALL BEARING (7 X 13 X 4) 13.75
115 10TSK LINE ROLLER (WITH BEARING) 22.55
121 10PBS LEG PROTECTION SHEET (ACCESSORY) 2.75
151 10JJV SMALL SIZE WASHER 6.05
152 10BCP KEY WASHER WITH DRAG EARS 6.05
153 10BBQ OVAL WASHER 2.75
154 10C13 DRAG WASHER (B) 1.65
155 10QYZ SPOOL ASSEMBLY 106.70
156 10R38 HANDLE KNOB 17.05
157 10R3A HANDLE CAP 3.85
158 10QYA HANDLE ASSEMBLY 112.20
159 1029E BODY 157.30
BNKI 13B40 EXPLODED VIEW (ACCESSORIES) 1.65
ITOS 13QPZ THREAD STOPPER STICKER 1.65
MH01 13AZS NAMEPLATE ON THE BACK OF THE LEG 2.75
TRST 13PMG INSTRUCTION MANUAL (ACCESSORY) 1.65
