[SHIMANO] Genuine Spare Parts for 17 Stephano SS 100HG Product code: 037718 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 17 Stephano SS 100HG Product code: 037718 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$65.45 [Regular Price: US$1.10 - US$93.50]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.102 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/4310

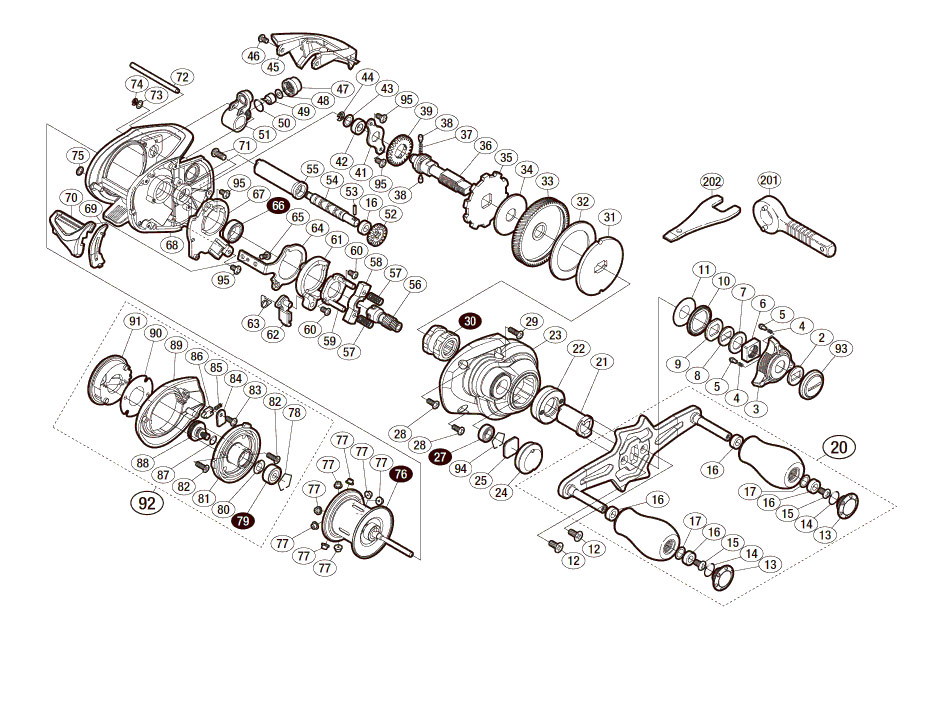

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
2 13MGL HANDLE FIXING BOLT YURUMI STOPPER 1.65
3 13UZE STAR DRAG 6.05
4 10BT2 CLICK SPRING 1.65
5 10BT0 CLICK PIN 1.65
6 13V9H STAR DRAG FIXING NUT 3.85
7 10J1N STAR DRAG SPACER 1.65
8 109F5 DRIVE GEAR WASHER 1.65
9 13UZS HANDLE CATCH WASHER 1.10
10 10J20 STAR DRAG CLICK PLATE 1.65
11 13PFG MECHANICAL BRAKE WASHER 1.10
12 13NWL FIXING BOLT 1.10
13 13M8X HANDLE CAP 4.95
14 10LAA O-RING 1.10
15 10LFA FIXING BOLT 1.10
16 10PXZ HANDLE KNOB BUSH 1.65
17 104FH WASHER 2.20
20 13JBX HANDLE ASSEMBLY 78.65
21 13UD8 ROLLER CLUTCH INNER TUBE 9.35
22 13VFN RETAINER HANDLE 6.05
23 13HMH BODY A 22.55
24 13UD7 LUBRICATION HOLE CAP 6.05
25 1085F MECHANICAL BRAKE WASHER 1.10
27 105BP BALL BEARING (5 X 9 X 3) 13.75
28 10LCY FIXING BOLT 1.10
29 10LCW THUMB REST FIXING BOLT 1.10
30 10F5D ROLLER CLUTCH BEARING A-RB 17.05
31 10D3N STAR DRAG PLATE 2.75
32 106XT STAR DRAG WASHER 6.05
33 13URZ DRIVE GEAR 22.55
34 10CHF STAR DRAG WASHER 6.05
35 10R6Z STOPPER GEAR 6.05
36 13UKY DRIVE GEAR SHAFT 11.55
37 10JDY SPRING FOR WORM SHAFT GEAR 1.65
38 10HJG WORM SHAFT GEAR PINS 1.65
39 10J47 WORM SHAFT GEAR 2.75
41 109T1 DRIVE GEAR SHAFT FIXING PLATE 2.75
42 10DQF DRIVE GEAR SHAFT BUSHING 1.65
43 10C47 MAIN GEAR SHAFT WASHER 1.10
44 105NK E TYPE STOP RING 2.5 1.10
45 13SBY LEVEL WINDING GUARD 6.05
46 10MPD FIXING BOLT 1.10
47 10FJB LEVEL WINDING RECEIVER 1.65
48 104TX WORMSHAFT WASHER 1.10
49 10TPT WORM SHAFT PIN 2.75
50 108WQ O-RING 1.65
51 10NVR LEVEL WINDING ASSEMBLY 9.35
52 10FNV WORM SHAFT GEAR 2.75
53 10AEZ WORM SHAFT PIN 1.10
54 10TPP WORM SHAFT 6.05
55 10R10 LEVEL WINDING PIPE 1.65
56 13SMT PINION GEAR 11.55
57 10487 CLUTCH YOKE SPRING 1.10
58 1046V CLUTCH YOKE 1.65
59 10F3X CLUTCH CAM PUSH PLATE 3.85
60 10LVE FIXING BOLT 1.10
61 10K0N CLUTCH CAM 2.75
62 10MME CLUTCH CLAW 3.85
63 10R1H CLUTCH CLAW SPRING 1.65
64 10QZV CLUTCH PLATE 4.95
65 10LF4 FIXING BOLT 1.10
66 10EX8 BALL BEARING (8 X 12 X 3.5) 13.75
67 10R09 BODY A SEAT 3.85
68 13G9C FRAME 50.60
69 10QZW CLUTCH LEVER RECEIVER (B) 1.65
70 10R1J CLUTCH LEVER 6.05
71 10LFL FIXING BOLT 1.65
72 10QSH LEVEL-WIND GUIDE 1.65
73 10FJZ WASHER 1.10
74 105NC E TYPE RETAINING RING 2 1.10
75 108PY FRAME CONTACT WASHER 1.65
76 13AVC SPOOL ASSEMBLY (WITH BEARING) 56.10
77 13SFV BRAKE COLLAR (M) RED 1.10
78 1054D BEARING PULL-OUT STOPPER 1.10
79 105C2 BALL BEARING (3 X 10 X 4) 13.75
80 13UCZ MECHANICAL BRAKE WASHER 1.10
81 13FY9 FRAME B BEARING ASSEMBLY 17.05
82 13NWK FIXING BOLT 1.10
83 1055J FIXING BOLT 1.65
84 10KVL CLICK PIN FIXING PLATE 1.10
85 10K07 CLICK SPRING 1.65
86 13RJG CLICK PIN 1.65
87 108WS O-RING 4X6 1.10
88 13U16 MECHANICAL BRAKE KNOB 9.35
89 13RFK BODY B 11.55
90 13GFP WASHER 2.75
91 13FYP BRAKE KNOB ASSEMBLY 17.05
92 13FS6 BODY B ASSEMBLY 56.10
93 13MB3 HANDLE FIXING BOLT 9.35
94 1057X STOPPER 1.65
95 10LCT FIXING BOLT 1.65
201 10NC0 REEL WRENCH (ACCESSORY) 1.65
202 10A61 REEL WRENCH (ACCESSORY) 3.85
PUNT 13JQC INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY) 2.75
