[SHIMANO] Genuine Spare Parts for 22 GRAPPLER BB 150HG Product code: 044983 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.102 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/5081

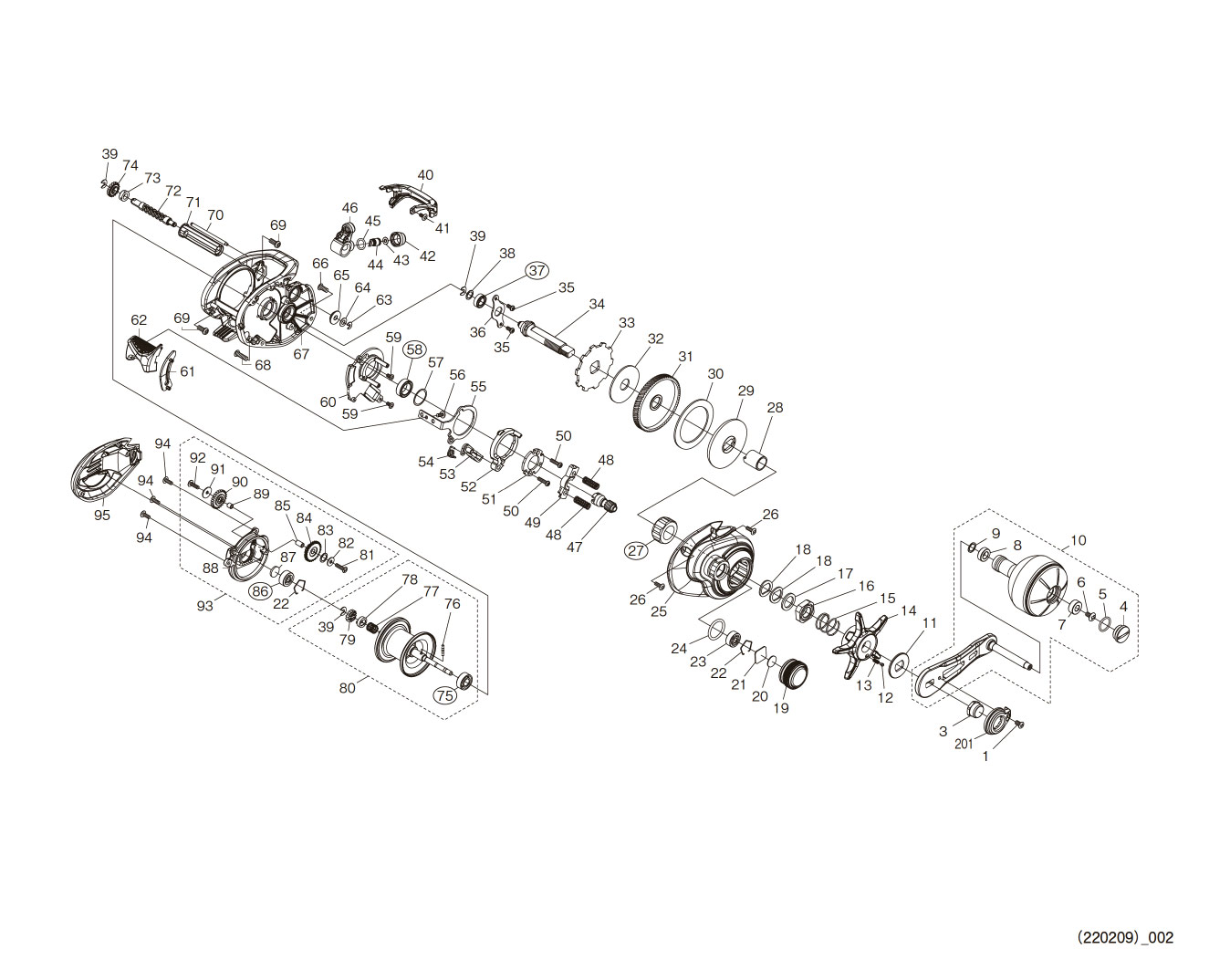

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "27 / ROLLER CLUTCH", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	10R1Q	FIXING BOLT	1.65
3	10FFB	HANDLE FIXING NUT	2.75
4	10R3B	HANDLE CAP	1.65
5	10LAB	O-RING	1.10
6	10LFA	FIXING BOLT	1.10
7	10EU0	HANDLE GRIP BUSH (A)	1.65
8	104UJ	HANDLE GRIP BUSH (B)	1.65
9	104FH	WASHER	2.20
10	13JDP	HANDLE ASSEMBLY	93.50
11	10J22	STAR DRAG CLICK PLATE	1.65
12	10MFC	CLICK PIN	1.65
13	10BT2	CLICK SPRING	1.65
14	13V4H	STAR DRAG	3.85
15	10A70	STAR DRAG SPRING	2.75
16	10A3T	STAR DRAG FIXING NUT	3.85
17	10J1N	STAR DRAG SPACER	1.65
18	109F5	DRIVE GEAR WASHER	1.65
19	13U92	MECHANICAL BRAKE KNOB	8.80
20	10896	MECHANICAL BRAKE WASHER	1.10
21	1085F	MECHANICAL BRAKE WASHER	1.10
22	1054D	BEARING RETAINING CLAMPS	1.10
23	13RTQ	BUSH	1.65
24	10R22	O-RING	1.65
25	13U3A	BODY A	16.50
26	10LCY	FIXING BOLT	1.10
27	10F5D	ROLLER CLUTCH BEARING A-RB *Cannot be ordered	17.05
28	100UC	ROLLER CLUTCH INNER TUBE	6.05
29	10D3H	STAR DRAG PLATE	2.75
30	106XT	STAR DRAG WASHER	6.05
31	10CMC	DRIVE GEAR	22.55
32	10CHF	STAR DRAG WASHER	6.05
33	10D73	STOPPER GEAR	6.05
34	1058L	DRIVE GEAR SHAFT	11.55
35	10E23	FIXING BOLT	1.10
36	109T1	DRIVE GEAR SHAFT FIXING PLATE	2.75
37	105BP	BALL BEARING (5X9X3)	13.75
38	10G6D	WASHER	1.65
39	105NK	E TYPE STOP RING 2.5	1.10
40	13SJC	LEVEL WINDING GUARD	3.30
41	10LCQ	FIXING BOLT	1.10
42	10FJB	LEVEL WINDING RECEIVER	1.65
43	10CFU	WORM SHAFT PIN	1.10
44	10BHQ	WORM SHAFT PIN	2.75
45	108WQ	O-RING	1.65
46	10R51	LEVEL-WIND ASSEMBLY	3.30
47	10CSC	PINION GEAR	11.55
48	100U9	CLUTCH YOKE SPRING	1.10
49	10S8M	CLUTCH YOKE	1.10
50	10LV0	FIXING BOLT	1.10
51	100US	CLUTCH CAM PUSH PLATE	3.85
52	100UK	CLUTCH CAM	2.75
53	10MME	CLUTCH CLAW	3.85
54	10R1H	CLUTCH CLAW SPRING	1.65
55	10QZV	CLUTCH PLATE	4.95
56	10LF4	FIXING BOLT	1.10
57	10190	WASHER	1.65
58	10EX8	BALL BEARING (8X12X3.5)	13.75
59	100S4	FIXING BOLT	1.10
60	10R56	BODY A SEAT	3.30
61	13TDA	CLUTCH LEVER RECEIVER KE (B)	1.10
62	13H6Q	CLUTCH LEVER ASSEMBLY	5.50
63	105NC	E TYPE RETAINING RING 2	1.10
64	100K0	WASHER	1.10
65	100G7	LEVEL WIND GUARD BUSHING	1.10
66	100UU	FIXING BOLT	1.10
67	13GB8	FRAME ASSEMBLY	35.20
68	100UV	FIXING BOLT	1.10
69	13JQQ	FIXING BOLT	1.65
70	13S6E	LEVEL-WIND GUIDE	1.10
71	13S6D	LEVEL-WIND PIPE	1.10
72	13S61	WORM SHAFT	11.55
73	10PXZ	HANDLE KNOB BUSH	1.65
74	13S5T	WORM SHAFT GEAR	2.75
75	105CA	BALL BEARING (5 X 11 X 4)	13.75
76	10P68	SPOOL CLUTCH PIN	1.65
77	13SVD	SPOOL SHAFT SPRING	1.65
78	10MCY	SPOOL SHAFT CAM	1.65
79	10JAH	WORM SHAFT GEAR	3.85
80	13GP8	SPOOL ASSEMBLY (WITH BEARINGS)	49.50
81	13JXR	FIXING BOLT	1.65
82	13PE6	WASHER	1.65
83	13PKB	WASHER	1.10
84	13RTV	WORM SHAFT GEAR (A)	1.65
85	13SGH	WORM SHAFT GEAR (B) RECEIVER B	2.75
86	105C2	BALL BEARING (3X10X4)	13.75
87	10EX5	SPOOL SHAFT ATTACHMENT B	1.10
88	13RUN	BODY B BEARING	5.50
89	13RU2	WORM SHAFT GEAR (B) HOLDER	1.65
90	13S5R	WORM SHAFT GEAR (B)	2.75
91	1019V	WASHER	1.65
92	10LCP	FIXING BOLT	1.65
93	13FZJ	FRAME B BEARING ASSEMBLY	13.20
94	10LCF	FIXING BOLT	1.10
95	13RH5	MAIN UNIT B	3.85
151	10NC0	REEL WRENCH (ACCESSORY)	1.65
201	10SSK	RETAINER	3.85
PUNT	13FMV	INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY)	1.65
