[SHIMANO] Genuine Spare Parts for 21-22 CALCUTTA CONQUEST 200HG Product code: 042385 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.93 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/5004

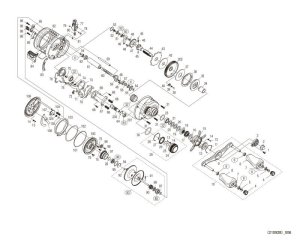

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "32 / ROLLER CLUTCH", "88 / BALL BEARING" and "91 /SPOOL CLUTCH PIN ", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
*F01	13WNH	REEL BAG (ACCESSORY)	11.00
1	10CZ5	FIXING BOLT	2.75
2	100GS	HANDLE FIXING NUT	10.45
3	10T7R	RETAINER	1.10
4	10T7N	HANDLE CAP	8.80
5	103E9	FIXING BOLT	1.10
6	104VX	BALL BEARING (4X7X2.5)	13.75
7	104FH	WASHER	2.20
8	10SCX	HANDLE KNOB	11.00
9	100TK	HANDLE SHAFT ASSEMBLY	44.00
10	101LU	HANDLE ASSEMBLY	101.20
11	10KXV	STAR DRAG CLICK PLATE	1.65
12	10J1Y	STAR DRAG CLICK PLATE	1.65
13	10B27	CLICK PIN	1.65
14	10988	CLICK SPRING	1.65
15	10AU1	STAR DRAG	22.55
16	10HHN	SLIDER WASHER (9X13X0.3)	1.65
17	10A71	STAR DRAG SPRING	2.75
18	10A0B	STAR DRAG FIXING NUT	2.75
19	10J1N	STAR DRAG SPACER	1.65
20	10D60	MAIN GEAR WASHER (C)	1.65
21	105PW	STAR DRAG BEARING WASHER	1.10
22	10EX8	BALL BEARING (8 X 12 X 3.5)	13.75
23	1027V	O-RING	1.65
24	10T7H	MECHANICAL BRAKE KNOB	20.35
25	10896	MECHANICAL BRAKE WASHER	1.10
26	1057S	SPOOL SHAFT CONTACT (B)	1.10
27	10L2F	MECHANICAL BRAKE KNOB CLICK PLATE	2.75
28	10L6X	MECHANICAL BRAKE KNOB SOUND STOP RING	2.75
29	10TEE	MECHANICAL BRAKE KNOB ASSEMBLY	36.85
30	108W8	O-RING S-16	1.65
31	10C3N	FIXING BOLT	2.75
32	1005E	ROLLER CLUTCH *Cannot be ordered	17.05
34	10BN1	ROLLER CLUTCH INNER TUBE	6.05
35	10E9L	STAR DRAG PLATE	9.35
36	10E9B	DRAG CLICK SYRATCHET	3.85
37	1027W	STAR DRAG WASHER	9.35
38	10C0T	DRAG CLICK PIN	2.75
39	10J8A	DRAG CLICK SPRING	1.65
40	10J87	DRAG SPRING HOLDER	1.65
42	10CHZ	STAR DRAG WASHER	2.75
43	10D6Y	STOPPER GEAR	6.05
44	101Q9	DRIVE GEAR SHAFT	13.20
45	10HJG	PIN FOR WORM SHAFT GEAR	1.65
46	10JDX	SPRING FOR WORM SHAFT GEAR	1.65
47	10J6W	WORM SHAFT GEAR	3.85
48	10LVF	FIXING BOLT	1.10
49	100GK	DRIVE GEAR SHAFT FIXING PLATE	1.10
50	10SAM	BALL BEARING (4X7X2)	13.75
51	10THF	WASHER	1.10
52	10DR4	FIXING BOLT	1.10
53	10SZ4	O-RING	1.65
54	105NC	E TYPE STOP RING 2	1.10
55	10FNX	WORM SHAFT GEAR	2.75
56	10G8G	WORM SHAFT GEAR	1.10
57	10N9Q	WORM SHAFT HOLDER (A)	1.65
58	10T7S	WORM SHAFT EXTRACTION STOP	1.10
59	101QD	LEVEL WINDING GUIDE	3.85
60	101QC	WORM SHAFT	5.50
61	101G5	LEVEL WINDING PIPE	7.15
62	104SP	WORM SHAFT HOLDER (B)	1.65
63	105BP	BALL BEARING (5X9X3)	13.75
64	1057X	STOPPER	1.65
66	104BU	CLUTCH YOKE SPRING	1.10
67	101EX	CLUTCH YOKE	1.65
68	101CN	FIXING BOLT	1.65
69	10F42	CLUTCH CAM PUSH PLATE	3.85
70	10SX6	CLUTCH CAM	2.75
71	105ZU	CLUTCH CLAW	3.85
72	10N1Z	CLUTCH CLAW SPRING	1.10
73	101G3	CLUTCH PLATE	2.20
74	10559	FIXING BOLT	1.65
75	100BD	FIXING BOLT	1.65
76	101Q6	BODY A SEAT	1.10
77	10TED	LEVEL-WIND ASSEMBLY	51.70
78	100GC	WORM SHAFT PIN EXTRACTION STOPPER	1.10
79	10908	O-RING	1.65
80	100GJ	WORM SHAFT PIN	4.40
81	105NB	E TYPE STOPPER RING 1.5	1.10
82	1027M	FRAME ASSEMBLY	165.00
83	101Q7	CLUTCH LEVER HOLDER	1.10
84	10U0N	CLUTCH LEVER ASSEMBLY	7.70
85	101G4	FRAME B CLUTCH CAM	1.10
86	10LVP	FIXING BOLT	2.75
87	10TNF	O RING	1.65
88	1005D	BALL BEARING (5 X 11 X 4) *Cannot be ordered	13.75
89	10SWZ	BUSH	1.65
90	10SJF	BEARING PUSH SPRING	1.65
91	10MD1	SPOOL CLUTCH PIN *Cannot be ordered	1.10
92	10EZ7	O-RING	1.10
93	101L9	SPOOL ASSEMBLY (WITH BEARING)	101.20
94	10GEW	BEARING PULL-OUT STOPPER	1.10
95	10LA8	O RING	1.65
96	10S37	BALL BEARING (3 X 10 X 4)	13.75
97	100N4	BRAKE PIPE GEAR ASSEMBLY	13.75
98	10PRT	FIXING BOLT	1.10
99	10BGM	BR KNOB GEAR	1.65
100	1027L	FRAME B RECEIVER ASSEMBLY	33.00
101	1014X	O RING	1.65
102	104H8	BODY B CAM LEVER ADJUSTMENT WASHER	1.65
103	101Q8	BODY B CAM LEVER	1.10
104	10T7F	DAMPER SPRING	1.10
105	10FMT	O RING	1.10
107	100TQ	BRAKE DIAL ASSEMBLY	31.35
108	101QA	BODY B SEAL	1.10
109	101LC	BODY B	77.00
201	13HPQ	BODY A ASSEMBLY	132.00
202	13UXP	DRIVE GEAR	28.05
203	13SPQ	PINION GEAR	22.00
324	10SEJ	WASHER	1.10
BNKI	13WUX	EXPLODED VIEW (ACCESSORIES)	1.10
BSM1	1019F	BRAKE SHOES	1.10
BST1	13SFU	BRAKE SHAFT	1.10
OIL1	10LQ0	B-100 OIL (4.5 G)	3.85
TRST	13VTY	INSTRUCTION MANUAL (ACCESSORY)	1.65
