[SHIMANO] Genuine Spare Parts for 22 EXSENCE DC XG R Product code: 044969 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.102 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/5501

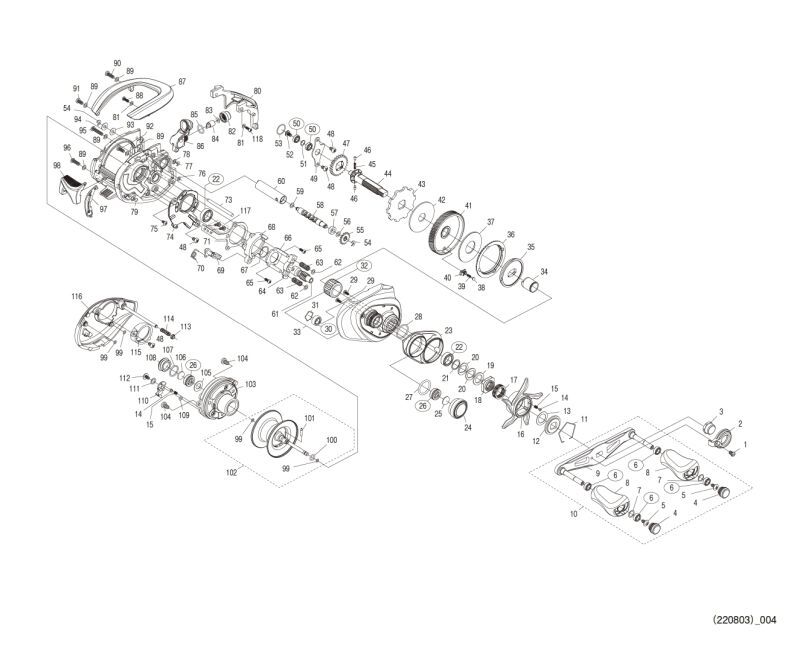

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "32 / ROLLER CLUTCH" and "101 / SPOOL CLUTCH PIN", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
*F01	13WPA	REEL BAG (ACCESSORY)	9.35
1	10R1Q	FIXING BOLT	1.65
2	1017T	RETAINER	3.85
3	13V4J	HANDLE FIXING NUT	8.25
4	13MBX	HANDLE CAP	8.80
5	103E9	FIXING BOLT	1.10
6	104VX	BALL BEARING (4X7X2.5)	13.75
7	104FH	WASHER	2.20
8	10SCX	HANDLE KNOB	11.00
9	1016R	HANDLE KNOB	22.55
10	13XZV	HANDLE ASSEMBLY	93.50
11	10KXV	STAR DRAG CLICK PLATE	1.65
12	10J1Y	STAR DRAG CLICK PLATE	1.65
13	10HHM	SLIDER WASHER (9X13X0.2)	1.10
14	10B27	CLICK PIN	1.65
15	10988	CLICK SPRING	1.65
16	13V45	STAR DRAG	28.05
17	10A71	STAR DRAG SPRING	2.75
18	10A0B	STAR DRAG FIXING NUT	2.75
19	10J1N	STAR DRAG SPACER	1.65
20	10D60	MAIN GEAR WASHER (C)	1.65
21	105PW	STAR DRAG BEARING WASHER	1.10
22	10EX8	BALL BEARING (8 X 12 X 3.5)	13.75
23	13U94	BODY A NAMEPLATE	9.90
24	13U93	MECHANICAL BRAKE KNOB	33.00
25	1057Q	SPOOL SHAFT CONTACT TALLY (B)	1.10
26	10S37	BALL BEARING (3 X 10 X 4)	13.75
27	10LA9	O-RING	1.65
28	1027V	O-RING	1.65
29	1055J	FIXING BOLT	1.65
30	105BP	BALL BEARING (5X9X3)	13.75
31	10R0Q	STOPPER	1.65
32	1005E	ROLLER CLUTCH *Cannot be ordered	17.05
33	13HQH	BODY A ASSEMBLY	106.15
34	10BN3	ROLLER CLUTCH INNER TUBE	6.05
35	13UYN	STAR DRAG PLATE	9.35
36	10E9B	DRAG CLICK SYLLATIC RATCHET	3.85
37	1027W	STAR DRAG WASHER	9.35
38	10C0T	DRAG CLICK PIN	2.75
39	10J8A	DRAG CLICK SPRING	1.65
40	10J87	DRAG SPRING HOLDER	1.65
41	13UYM	DRIVE GEAR	28.60
42	10CJ1	STAR DRAG WASHER	3.85
43	109BB	STOPPER GEAR	6.05
44	10T7U	DRIVE GEAR SHAFT	13.20
45	10JDX	WORM SHAFT GEAR SPRINGS	1.65
46	10HJG	WORM SHAFT GEAR PINS	1.65
47	10057	WORM SHAFT GEAR	2.75
48	10DSZ	FIXING BOLT	1.10
49	13VAC	DRIVE GEAR SHAFT FIXING PLATE	1.65
50	10SAM	BALL BEARING (4X7X2)	13.75
51	13PKS	WASHER	1.10
52	10DR4	FIXING BOLT	1.10
53	10SZ4	O-RING	1.65
54	105NC	E TYPE STOP RING 2	1.10
55	10FNX	WORM SHAFT GEAR	2.75
56	10J1J	WORM SHAFT GEAR	1.10
57	10PXY	HANDLE GRIP BUSHING (B)	1.65
58	10EET	WORM SHAFT	2.75
59	10GHF	WASHER	1.10
60	10NFW	LEVEL WINDING PIPE	1.65
61	13SPM	PINION GEAR	22.55
62	13PKV	WASHER	1.10
63	104BU	CLUTCH YOKE SPRING	1.10
64	1046T	CLUTCH YOKE	1.65
65	10LVH	CLUTCH CAM FIXING BOLT	1.10
66	10F42	CLUTCH CAM PUSH PLATE	3.85
67	10G8C	CLUTCH CAM WASHER	1.10
68	10SX6	CLUTCH CAM	2.75
69	105ZU	CLUTCH CLAW	3.85
70	10N1Z	CLUTCH CLAW SPRING	1.10
71	13TD4	CLUTCH PLATE	2.20
73	10RMM	LEVEL WINDING GUIDE	2.75
74	13UF1	BODY A SEAT	1.65
75	100BD	FIXING BOLT	1.65
76	13PFS	WASHER	1.10
77	105NB	E TYPE STOP RING 1.5	1.10
78	10GA7	WASHER	1.10
79	13GBH	FRAME ASSEMBLY	111.10
80	13SJD	LEVEL WIND GUARD	8.25
81	13PKU	SEATING BRACKET (1.5MM)	1.10
82	10FJB	LEVEL WIND GIRDER	1.65
83	10T9Y	WASHER	2.20
84	10211	WORM SHAFT PIN	2.75
85	108WQ	O-RING	1.65
86	13GH1	LEVEL WINDING ASSEMBLY	29.15
87	13RUV	THUMB REST	51.70
88	10LVL	FIXING BOLT	1.10
89	13PKW	WASHER	1.10
90	13JXC	FIXING BOLT	1.10
91	13JRF	FIXING BOLT	1.10
92	10LZD	FIXING BOLT	1.65
93	10E7G	WASHER	1.10
94	13PK5	SEAT METAL	1.10
95	10RL4	FIXING BOLT	1.65
96	101GQ	FIXING BOLT	1.65
97	13TD5	CLUTCH LEVER ASSEMBLY	1.10
98	13H6E	CLUTCH LEVER ASSEMBLY	8.80
99	10E7H	O-RING	1.10
100	10TNF	O-RING	1.65
101	10MD0	SPOOL CLUTCH PIN *Cannot be ordered	1.65
102	13GNW	SPOOL ASSEMBLY	112.20
103	13FZQ	B RECEIVING BASE ASSEMBLY	173.80
104	13JXD	FIXING BOLT	1.10
105	10B94	BEARING SEAL	1.65
106	1057S	SPOOL SHAFT CONTACT TALLY (B)	1.10
107	108WA	O RING	1.65
108	13LGC	LUBRICATION HOLE CAP B	5.50
109	10CFZ	O RING	1.65
110	13RNG	BODY B CAM LEVER	1.10
111	10210	WASHER	1.10
112	13AXA	FIXING BOLT	1.65
113	10RLZ	BODY B SHAFT GUIDE	1.65
114	10REG	DAMPER SPRING	1.65
115	13RNH	BRAKE DIAL NAMEPLATE	2.75
116	13FTT	BODY B ASSEMBLY	82.50
117	13X9L	FIXING BOLT	3.85
118	101CN	FIXING BOLT	1.65
BNKI	13WVC	EXPLODED VIEW (ACCESSORY)	1.65
STMK	13X18	LOWER ROLL KEY GAUGE (ACCESSORY)	1.65
TRST	13PLE	INSTRUCTION MANUAL (ACCESSORY)	1.65
