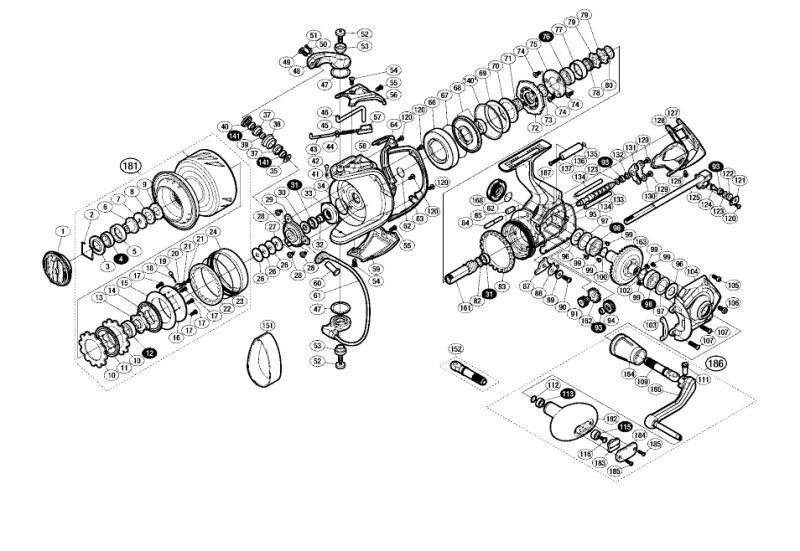

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13QPQ REEL BAG (ACCESSORY) 28.05
1 102E4 DRAG KNOB SET 34.10
2 10B6K STOPPER SPRING 1.10
3 10LQZ WATERPROOF SEAL 6.05
4 10KX7 BALL BEARINGS (10 X 15 X 4) 13.75
5 10LWS SPOOL BEARING SPACER 6.05
6 10LWK SPOOL BEARING RECEIVER 6.05
7 10BC5 OVAL WASHER 2.75
8 10344 DRAG WASHERS 11.55
9 10BEB EAR WASHERS 2.75
10 10C19 DRAG WASHERS 20.35
11 10BS8 DRAG PLATE 6.05
12 10BGD BALL BEARING (9 X 17 X 5) 13.75
13 10LTY MAIN SHAFT BEARING GUIDE 22.55
14 10BY4 DRAG PLATE 9.35
15 10JPK MAIN SHAFT BEARING SEAL 2.75
16 109M3 DRAG PLATE WASHER 1.65
17 10LVP FIXING BOLT 2.75
18 10JMG DRAG CLICK SPRING 1.65
19 10382 SPOOL PIN 2.75
20 109ZN DRAG CLICK SPRING GUIDE 1.65
21 10LV7 FIXING BOLT 1.10
22 109ZQ DRAG SOUNDING SILRATCHET 2.75
23 108WD O-RING AS568-31 1.10
24 10C1M DRAG COVER 13.75
26 101DJ SPOOL WASHER SET 1.65
27 103MW SPOOL RECEIVER 1.65
28 10LZ2 FIXING BOLT 2.75
29 10K30 RETAINER 2.75
30 107F6 ROTOR BEARING SEAL 3.85
31 104PN BALL BEARING (7 X 11 X 3) 13.75
32 1072S ROTOR BEARING COLLAR 6.05
33 1080Z ROTOR NUT 9.35
34 10CG0 O-RING 19.5 1.65
35 107F1 ARM FIXED SHAFT COLLAR 3.85
37 107RM LINE ROLLER BUSH 2.75
38 10KUU LINE ROLLER 17.05
39 10GAG ROLLER BEARING COLLAR 3.85
40 1079Z LINE ROLLER BEARING COLLAR 6.05
41 1077Q BAIL TRIP LEVER CLICK SPRING 1.65
42 10CH8 BAIL TRIP LEVER CLICK PIN 1.65
43 105YX ARM SPRING GUIDE (A) 1.65
44 10HD9 SPRING GUIDE (A) COLLAR 1.65
45 105FY ARM CAM SPRING 1.65
46 106KH BAIL TRIP LEVER 3.85
47 10HDP ARM CAM WASHER 1.65
48 10KHA ARM CAM 45.10
49 10K46 FIXING BOLT 6.05
50 107LE FIXING BOLT RETAINER 2.75
51 107LF FIXING BOLT RETAINING CLIP 3.85
52 10Q86 FIXING BOLT 6.05
53 10K7M FIXING BOLT COLLAR 3.85
54 10CYT GUARD FIXING BOLT (A) 2.75
55 10MHG GUARD FIXING BOLT (B) 2.75
56 1087V ARM CAM SPRING COVER 6.05
57 1077M ARM CAM SPRING SEAT 2.75
58 10PY3 ROTOR 67.65
59 10MN8 BAIL MOUNTING BRACKET COVER 6.05
60 10Q3F ARM FIXING SHAFT 9.35
61 106ZA BAIL ASSEMBLY 56.10
62 108WP O-RING 1.65
63 10744 ROTOR GUARD (A) 3.85
64 107AF ROTOR GUARD (B) 3.85
66 10HFY ROLLER CLUTCH COVER 22.55
67 10MLQ O-RING 3.85
68 10QRN ROLLER CLUTCH SEAL ASSEMBLY 11.55
69 10HG0 ROLLER CLUTCH FELT 1.65
70 10L5Y ROLLER CLUTCH COVER PLATE 1.65
71 105B6 STOPPER 2.75
72 10QRF ROLLER CLUTCH ASSEMBLY 22.55
73 10HHM SLIDER WASHER (9 X 13 X 0.2) 1.10
74 10ML2 FIXING BOLT 2.75
75 10592 BEARING PUSH PLATE 3.85
76 10BGC BALL BEARING (9 X 17 X 5) 13.75
77 10JA8 BEARING COLLAR (FOR FRONT FLANGE) 3.85
78 10BAD PINION GEAR COLLAR 3.85
79 107VL TOOTHED STOPPER 2.75
80 10HHP SLIDER WASHER (9 X 13 X 0.5) 1.10
82 10GFD WASHER 1.10
83 104FX FRICTION RING 3.85
84 10CL7 INTERMEDIATE GEAR SHAFT 2.75
85 10AYR BODY FLANGE SEAL 2.75
87 10J3R ASSIST STOPPER 1.65
88 102VH ASSIST STOPPER COVER 1.65
89 10J3U ASSIST STOPPER COLLAR 3.85
90 103HM FIXING BOLT 1.10
91 106RF INTERMEDIATE GEAR (S) 9.35
93 10PDA BALL BEARING (3 X 6 X 2.5) 13.75
94 10HBL WORM SHAFT GEAR 8.25
95 10CD8 BODY SEAL 7.15
96 10CD2 BEARING SEAL 1.65
97 10BGG WASHER 1.65
98 104PV BALL BEARING (10 X 19 X 5) 13.75
99 10MGG FIXING BOLT 1.10
100 10804 STOPPER SPRING 1.65
102 105U4 ADJUSTMENT WASHER SET 1.10
103 10J3K FRICTION RING SPACER 1.65
104 1049G LID 45.10
105 10A6N FIXING BOLT 1.65
106 10PVM FIXING BOLT 2.75
107 10PVN FIXING BOLT 2.75
109 10F8C HANDLE SHAFT (LEFT HAND DRIVE ONLY) 9.35
111 10A9U HANDLE SHAFT BOLT 3.85
112 10HV3 WASHER 1.10
113 105BN BALL BEARING (5 X 9 X 3) 13.75
115 10KX1 BALL BEARING (4 X 9 X 4) 13.75
116 103E9 FIXING BOLT 1.10
120 10MT4 FIXING BOLT 1.10
121 10H7R CROSS GEAR PIN PUSH PLATE 1.65
122 10JV4 CROSS GEAR PIN COLLAR 2.75
123 1059T WASHER 1.10
124 106V5 CROSS GEAR PIN 6.05
125 10NF2 MAIN SHAFT ASSEMBLY 22.55
126 10L9D GUARD FIXING BOLT (D) 1.65
127 10NKP BODY GUARD 11.55
128 107HF BODY COVER 2.75
129 103L4 FIXING BOLT 1.10
130 10AT7 WORM SHAFT COVER 1.65
131 10H46 WORM SHAFT COVER SEAT 1.65
132 10CJW CROSS GEAR SHAFT COLLAR 1.65
133 10820 WORM SHAFT 11.55
134 1035D SLIDER GUIDE 2.75
135 108W9 O-RING (3 X 5) 1.65
136 10AYL BODY GUARD COLLAR 2.75
137 10LSC FIXING BOLT 1.10
140 10GHG WASHER 1.65
141 104K5 BALL BEARING (5 X 8 X 2.5) 13.75
151 109UW THREAD STOPPER BELT (M) (ACCESSORY) 6.05
152 10FHU HANDLE SHAFT (RIGHT H ONLY) (ACCESSORY) 9.35
161 10BYQ PINION GEAR 45.10
162 10CNM INTERMEDIATE GEAR (L) 9.35
163 10A9F DRIVE GEAR ASSEMBLY 45.10
164 10NHF HANDLE SHAFT FLANGE 56.10
165 106SF HANDLE 67.65
168 10N44 HANDLE SCREW CAP 17.05
181 10HQD SPOOL ASSEMBLY 229.90
182 102KE HANDLE KNOB 22.55
183 10B97 HANDLE CAP 2.75
184 108T1 HANDLE KNOB NAMEPLATE 3.85
185 103NM FIXING BOLT 2.75
186 10HLH HANDLE ASSEMBLY 168.30
187 1034V BODY 168.30
BNKI 13QZ2 EXPLODED VIEW (ACCESSORIES) 1.65
DDJG 13R3K DRAG COVER TIGHTENING JIG 34.10
ITOS 13QPZ STOPPER SEAL 1.65
MH01 13N9X NAMEPLATE ON THE BACK OF THE LEG 2.75
OIL2 10LQ1 SSRO-01 OIL (4.5G) 3.85
TRST 13FHM INSTRUCTION MANUAL (ACCESSORY) 3.85
