[SHIMANO] Genuine Spare Parts for 13 STELLA SW 6000PG Product Code: 030672 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 13 STELLA SW 6000PG Product Code: 030672 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 - US$117.48 [Regular Price: US$1.10 - US$195.80]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

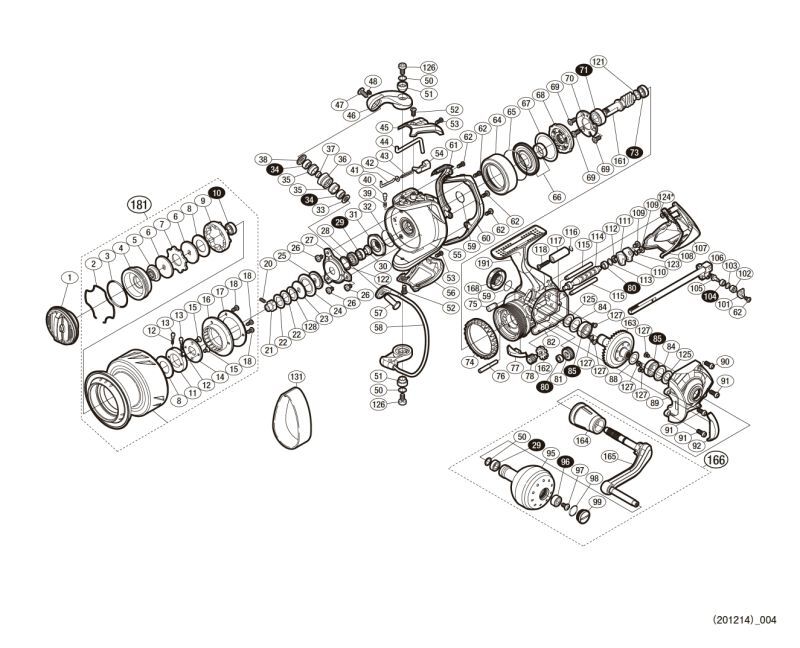

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13QPP REEL BAG (ACCESSORY) 28.05
1 102E3 DRAG KNOB SET 34.10
2 10B88 STOPPER SPRING 1.65
3 108WC O-RING SM26 1.65
4 10LWR SPOOL BEARING SPACER 9.35
5 10NFD SPOOL BEARING RECEIVER ASSEMBLY 22.55
6 10B9Z OVAL WASHER 2.75
7 10BE8 EAR WASHERS 22.55
8 1031R DRAG WASHERS 4.95
9 10AHH SPOOL INSERT 3.85
10 104JT BALL BEARING (6 X 10 X 3) 13.75
11 10JJU OTOIDE KOBAN GUIDE 9.35
12 10JMD DRAG CLICK SPRING 1.65
13 1035W SPOOL PIN 1.65
14 109HE SOUNDING OVAL WASHER 3.85
15 10MGD FIXING BOLT 1.10
16 10C1J DRAG COVER 2.75
17 109ZL DRAG COVER NAMEPLATE 3.85
18 10MPR BODY A SEAT B FIXING BOLT 1.10
20 10PRL SET SCREW (M2 X 5) 1.65
21 10LTL SPOOL SHAFT BEARING GUIDE 9.35
22 10BUL SPOOL WASHER SET 1.10
23 10HZW SPOOL BEARING KE (B) 1.65
24 10JPF SPOOL SHAFT BEARING SEAL 2.75
25 103P0 SPOOL RECEIVING KETTLE 3.85
26 10LZ2 FIXING BOLT 2.75
27 10K2Z RETAINER 2.75
28 107F2 ROTATING FRAME BEARING SEAL 2.75
29 105BN BALL BEARING (5 X 9 X 3) 13.75
30 1072N ROTATING FRAME BEARING COLLAR 1.65
31 1080Y ROTOR NUT 9.35
32 108WF O-RING 1.10
33 1079Y LINE ROLLER BEARING 2.75
34 104VT BALL BEARING (4 X 8 X 3) 13.75
35 107RL LINE ROLLER BUSH 2.75
36 10KUS LINE ROLLER 17.05
37 10GAF ROLLER BEARING COLLAR 1.65
38 107XB LINE ROLLER BEARING (B) 6.05
39 1077Q BAIL TRIP LEVER CLICK SPRING 1.65
40 106ZD CLICK PIN 1.65
41 105LU ARM SPRING GUIDE (A) 1.65
42 1064R ARM SPRING GUIDE (A) COLLAR 1.65
43 105FX ARM CAM SPRING 1.65
44 106KG INNER GERI LEVER 3.85
45 1087U ARM CAM SPRING COVER 6.05
46 10KH9 ARM CAM 45.10
47 10K46 FIXING BOLT 6.05
48 10PN1 SET SCREW (M2 X 3) 1.65
50 10HV3 WASHER 1.10
51 10K5A FIXING BOLT COLLAR 3.85
52 10CYU FIXING BOLT 2.75
53 106ZG FIXING BOLT 1.65
54 1077C ARM CAM SPRING SEAT 2.75
55 10PVZ ROTOR 67.65
56 10MN7 BALE MOUNTING BRACKET COVER 6.05
57 10Q3E ARM FIXING SHAFT 6.05
58 106Z9 BAIL ASSEMBLY 56.10
59 108WA O-RING 1.65
60 10743 ROTOR GUARD (A) 3.85
61 107AE ROTOR GUARD (B) 3.85
62 10MT4 FIXING BOLT 1.10
64 10HFX ROLLER CLUTCH COVER 11.55
65 10CFY O-RING (B) 2.75
66 10QRM ROLLER CLUTCH SEAL ASSEMBLY 11.55
67 10G6J ROLLER CLUTCH OUTER WASHER 1.65
68 10QPS ROLLER CLUTCH ASSEMBLY 11.55
69 10ML2 FIXING BOLT 2.75
70 1051S BEARING PUSH PLATE 3.85
71 104Q6 BALL BEARING (7 X 14 X 5) 13.75
73 104JS BALL BEARING (6 X 10 X 3) 13.75
74 104FW FRICTION RING 3.85
75 10AYR BODY FLANGE SEAL 2.75
76 10CL6 INTERMEDIATE GEAR SHAFT 2.75
77 107DX INNER GEAR CONTACT TALLY 1.65
78 106RE INTERMEDIATE GEAR (S) 9.35
80 10PDA BALL BEARING (3 X 6 X 2.5) 13.75
81 10HBK WORM SHAFT GEAR 8.25
82 10CD7 BODY SEAL 7.15
83 10CD0 BEARING SEAL 1.65
84 10BGE WASHER 1.65
85 104PT BALL BEARING (8 X 14 X 4) 13.75
88 10DKJ WASHER 2.20
89 1049F LID 45.10
90 10A6N FIXING BOLT 1.65
91 10A6P FIXING BOLT 1.65
92 10J3M FRICTION RING SPACER 2.75
95 10445 HANDLE KNOB 56.10
96 10KX1 BALL BEARING (4 X 9 X 4) 13.75
97 103E9 FIXING BOLT 1.10
98 10LAB O-RING 1.10
99 10B2B HANDLE CAP 6.05
101 10HAF WORM SHAFT PIN PUSH PLATE 1.65
102 10JXN WORM SHAFT PIN COLLAR 7.15
103 1059T WASHER 1.10
104 10PC0 BALL BEARING (2 X 5 X 2.5) 13.75
105 106V4 CROSS GEAR PIN 3.85
106 10NF1 MAIN SHAFT ASSEMBLY 22.55
107 10NKN BODY GUARD 11.55
108 107HE BODY COVER 2.75
109 103L4 FIXING BOLT 1.10
110 10AT6 WORM SHAFT COVER 1.65
111 10H45 WORM SHAFT COVER SEAT 1.65
112 10CJX WORM SHAFT COLLAR 1.65
113 10J7K WASHER 1.10
114 1081Z WORM SHAFT 11.55
115 1035C SLIDER GUIDE 1.65
116 108W9 O-RING (3 X 5) 1.65
117 10AYK BODY GUARD COLLAR 2.75
118 10LSC FIXING BOLT 1.10
121 10BBU PINION GEAR COLLAR 3.85
122 10G8C WASHER 1.10
123 10HWN ADJUSTMENT WASHER 1.10
124 10GD5 WASHER 1.10
125 10CD1 BEARING SEAL 1.65
126 10A9R FIXING BOLT 2.75
127 1055G FIXING BOLT 1.65
128 10BUK SPOOL WASHER 1.10
131 109UV THREAD STOPPER BELT (S) (ACCESSORY) 6.05
161 10BYN PINION GEAR 34.10
162 10CNK INTERMEDIATE GEAR (L) 6.05
163 10A9B DRIVE GEAR ASSEMBLY 45.10
164 10NHD HANDLE SHAFT FLANGE 56.10
165 106SD HANDLE 56.10
166 10HLE HANDLE ASSEMBLY 190.30
168 10N42 HANDLE SCREW CAP 17.05
181 10HQB SPOOL ASSEMBLY 195.80
191 1034R BODY 157.30
BNKI 13QZ1 EXPLODED VIEW (ACCESSORIES) 1.65
ITOS 13QPZ STOPPER SEAL 1.65
MH01 13N9U NAMEPLATE ON THE BACK OF THE LEG 2.75
OIL2 10LQ1 SSRO-01 OIL (4.5G) 3.85
TRST 13FHM INSTRUCTION MANUAL (INCLUDED) 3.85
