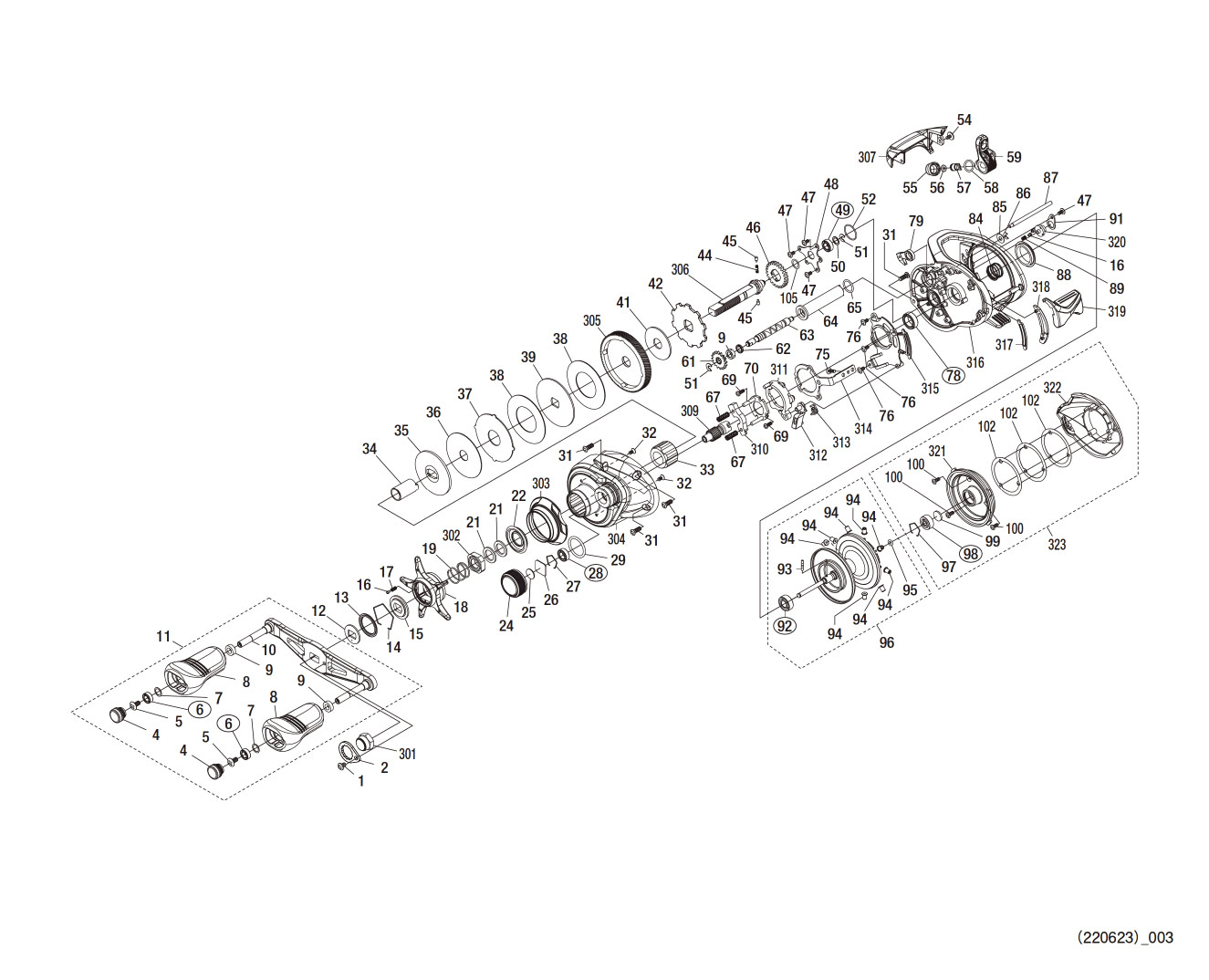

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "33 / ROLLER CLUTCH" , they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	13NXD	FIXING BOLT	1.10
2	13VAD	RETAINER	2.75
4	13MBM	HANDLE CAP	4.40
5	10LFA	FIXING BOLT	1.10
6	104VX	BALL BEARING (4 X 7 X 2.5)	13.75
7	104FH	WASHER	2.20
8	10326	HANDLE KNOB	11.55
9	10PXZ	HANDLE KNOB BUSH	1.65
10	13J26	HANDLE SHAFT ASSEMBLY	22.55
11	13JDZ	HANDLE ASSEMBLY	67.65
12	10QVN	HANDLE RECEIVING WASHER	1.65
13	10QVP	STAR DRAG SEAL	2.75
14	10KXW	STAR DRAG CLICK PLATE	1.65
15	10J26	STAR DRAG CLICK PLATE	1.65
16	10MFC	CLICK PIN	1.65
17	10BT2	CLICK SPRING	1.65
18	13V48	STAR DRAG	16.50
19	10A70	STAR DRAG SPRING	2.75
21	10J1N	STAR DRAG SPACER	1.65
22	10255	ROLLER CLUTCH SEAL	9.35
24	13U29	MECHANICAL BRAKE KNOB	8.80
25	10896	MECHANICAL BRAKE WASHER	1.10
26	1085F	MECHANICAL BRAKE WASHER	1.10
27	1057X	EXTRACTION STOPPER	1.65
28	105BR	BALL BEARING (5X9X3)	13.75
29	108WK	O-RING SM14	1.65
31	101WJ	FIXING BOLT	1.65
32	10LA3	FIXING BOLT	1.65
33	10F37	ROLLER CLUTCH BEARING *Cannot be ordered	17.05
34	10250	ROLLER CLUTCH INNER TUBE	6.05
35	1025E	STAR DRAG PLATE	2.20
36	1024D	STAR DRAG WASHER	8.80
37	1024F	STAR DRAG WASHER	2.20
38	1025D	STAR DRAG WASHERS	8.80
39	1024E	STAR DRAG PLATE	2.20
41	1025A	STAR DRAG WASHERS	6.05
42	10D73	STOPPER GEAR	6.05
44	10JDZ	SPRING FOR WORM SHAFT GEAR	1.65
45	10HJG	WORM SHAFT GEAR PINS	1.65
46	10J47	WORM SHAFT GEAR	2.75
47	10LCT	FIXING BOLT	1.65
48	1024G	DRIVE GEAR SHAFT FIXING PLATE	2.75
49	105BP	BALL BEARING (5 X 9 X 3)	13.75
50	10G6D	WASHER	1.65
51	105NK	E-TYPE RETAINING RING 2.5	1.10
52	10LA8	O-RING	1.65
54	10LCZ	FIXING BOLT	1.65
55	10FJB	LEVEL WINDING RECEIVER	1.65
56	10CFU	WORM SHAFT PIN	1.10
57	10BHQ	WORM SHAFT PIN	2.75
58	108WQ	O-RING	1.65
59	10R7V	LEVEL WINDING ASSEMBLY	13.75
61	1024Q	WORM SHAFT GEAR	2.75
62	1024R	WORM SHAFT SEAL	3.85
63	13S6F	WORM SHAFT	4.40
64	1024N	LEVEL WINDING PIPE	1.65
65	101GT	O-RING	1.65
67	104BC	CLUTCH YOKE SPRING	1.10
69	10LVJ	FIXING BOLT	1.10
70	10QVM	CLUTCH CAM PUSH PLATE	3.85
75	10LCL	FIXING BOLT	1.10
76	10SUT	FIXING BOLT	1.65
78	105BT	BALL BEARING (8 X 12 X 3.5)	13.75
79	10MW2	STOPPER CLAW ASSEMBLY	3.85
84	10EZE	BB PUSH SPRING	1.65
85	10FJZ	WASHER	1.10
86	105NC	E TYPE STOPPER RING 2	1.10
87	1024P	LEVEL-WIND GUIDE	1.65
88	1024L	FRAME CENTER SEAL	2.75
89	10GQZ	CLICK SPRING	1.10
91	101UL	BODY B CAM LEVER PUSH PLATE	1.65
92	105CA	BALL BEARING (5 X 11 X 4)	13.75
93	10MD1	SPOOL CLUTCH PIN	1.10
94	10ECR	BRAKE COLLAR (CLEAR) (ACCESSORY)	1.65
95	10EZ7	O-RING	1.10
96	13GPA	SPOOL ASSEMBLY (WITH BEARING)	78.65
97	1054D	BEARING PULL-OUT STOPPER	1.10
98	105C2	BALL BEARING (3 X 10 X 4)	13.75
99	10EX5	SPOOL SHAFT ATTACHMENT B	1.10
100	10LA4	FIXING BOLT	1.10
102	13GGP	WASHER	2.75
105	10GR7	WASHER	1.10
152	10CPE	BRAKE COLLAR (GRAY)	1.65
301	10R3C	HANDLE FIXING NUT	2.75
302	10SRQ	STAR DRAG FIXING NUT	2.75
303	13U74	BODY A NAMEPLATE	1.65
304	13TX6	BODY A	33.55
305	13UXX	DRIVE GEAR	22.55
306	10228	DRIVE GEAR SHAFT	15.95
307	13SHR	LEVEL WIND GUARD	2.20
309	13SPX	PINION GEAR	11.55
310	1046Y	CLUTCH YOKE	1.65
311	10225	CLUTCH CAM	2.75
312	1021U	CLUTCH CLAW	9.35
313	1021T	CLUTCH CLAW SPRING	1.65
314	1021Z	CLUTCH PLATE	4.95
315	10227	BODY A SEAT	3.85
316	13GBE	FRAME ASSEMBLY	39.60
317	1021Y	CLUTCH LEVER SEAL	3.85
318	10220	CLUTCH LEVER RECEIVER (B)	1.65
319	1021W	CLUTCH LEVER	6.05
320	1019C	BODY B CAM LEVER	2.75
321	1027Z	FRAME B RECEIVER ASSEMBLY	13.75
322	13RGU	BODY B	5.50
323	13FTX	BODY B ASSEMBLY	33.00
PUNT	13JRH	INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORY)	2.20
