[SHIMANO] Genuine Spare Parts for 21 Scorpion DC 21 151HG Product code: 043092 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.85 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/5007

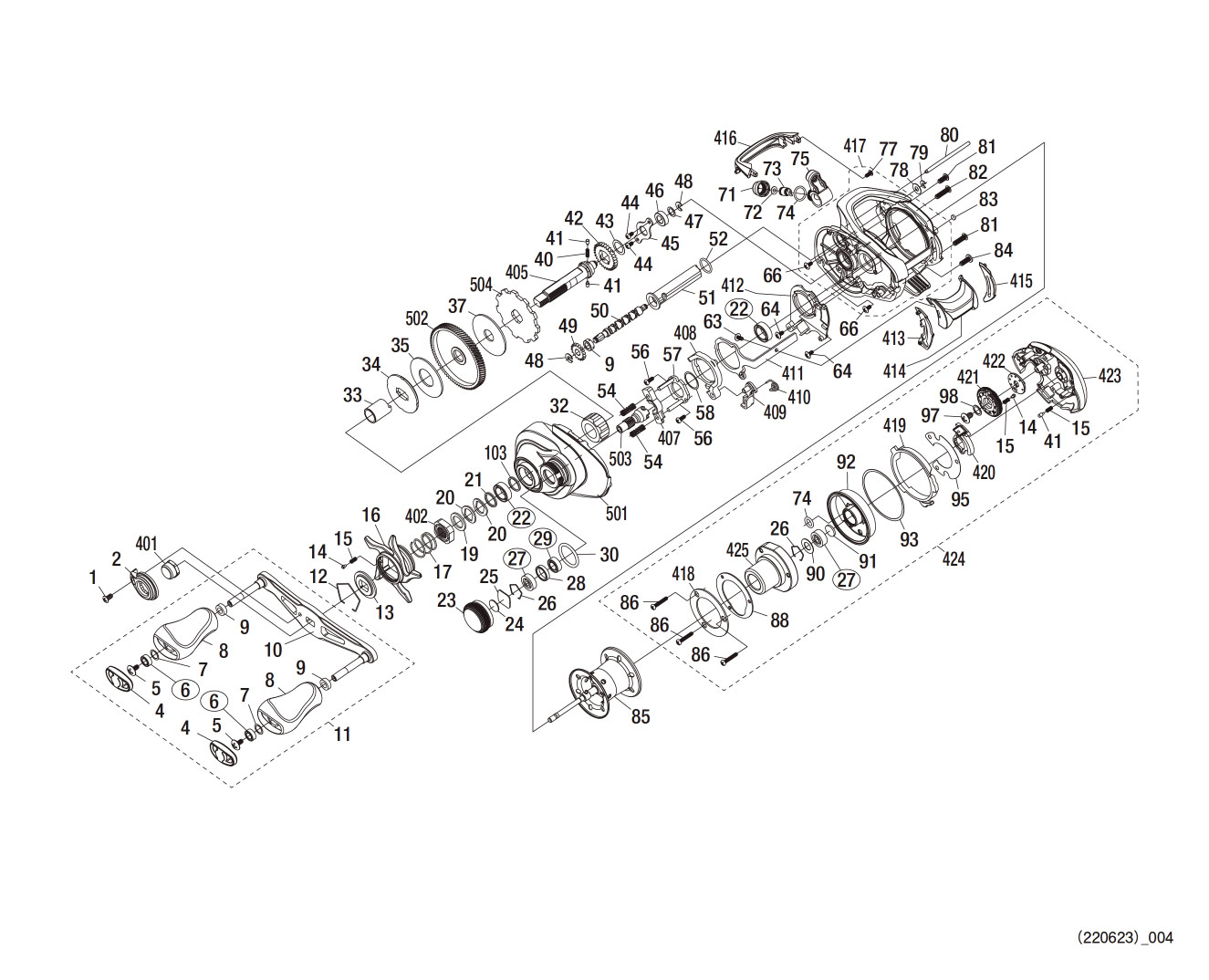

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "32 / ROLLER CLUTCH" , they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	10R1Q	FIXING BOLT	1.65
2	1017T	RETAINER	3.85
4	1027R	HANDLE CAP	2.75
5	10LFA	FIXING BOLT	1.10
6	104VX	BALL BEARING (4 X 7 X 2.5)	13.75
7	104FH	WASHER	2.20
8	10DW6	HANDLE KNOB	11.55
9	10PXZ	HANDLE KNOB BUSH	1.65
10	13HWE	HANDLE SHAFT ASSEMBLY	22.55
11	13JDW	HANDLE ASSEMBLY	67.65
12	10KXW	STAR DRAG CLICK PLATE	1.65
13	10J26	STAR DRAG CLICK PLATE	1.65
14	10MFC	CLICK PIN	1.65
15	10BT2	CLICK SPRING	1.65
16	13V4C	STAR DRAG	16.50
17	10A70	STAR DRAG SPRING	2.75
19	10J1N	STAR DRAG SPACER	1.65
20	109F5	DRIVE GEAR WASHER	1.65
21	105PW	STAR DRAG BEARING WASHER	1.10
22	10EX8	BALL BEARING (8 X 12 X 3.5)	13.75
23	13U1N	MECHANICAL BRAKE KNOB	9.35
24	10896	MECHANICAL BRAKE WASHER	1.10
25	1085F	MECHANICAL BRAKE WASHER	1.10
26	1054D	BEARING PULL-OUT STOPPER	1.10
27	105C0	BALL BEARING (3 X 10 X 4)	13.75
28	10EYS	BEARING SPACER	2.75
29	105BP	BALL BEARING (5 X 9 X 3)	13.75
30	108WK	O-RING SM14	1.65
32	10F33	ROLLER CLUTCH *Cannot be ordered	22.55
33	10SRM	ROLLER CLUTCH INNER TUBE	6.05
34	10D54	STAR DRAG PLATE	3.85
35	13UT5	STAR DRAG WASHER	3.85
37	1023U	STAR DRAG WASHER	6.05
40	10JDY	SPRING FOR WORM SHAFT GEAR	1.65
41	10HJG	WORM SHAFT GEAR PINS	1.65
42	101K8	WORM SHAFT GEAR	3.85
43	10GR3	WASHER (7 X 10)	1.10
44	10S3Y	FIXING BOLT	1.10
45	109T1	DRIVE GEAR SHAFT FIXING PLATE	2.75
46	10DQF	DRIVE GEAR SHAFT BUSH	1.65
47	10G6D	WASHER	1.65
48	105NK	E TYPE STOP RING 2.5	1.10
49	10SRL	WORM SHAFT GEAR	3.85
50	10ST0	WORM SHAFT	2.75
51	10SSP	LEVEL WINDING PIPE	1.65
52	101GT	O-RING	1.65
54	104BC	CLUTCH YOKE SPRING	1.10
56	10LVE	FIXING BOLT	1.10
57	10F3X	CLUTCH CAM PUSH PLATE	3.85
58	10190	WASHER	1.65
63	10559	FIXING BOLT	1.65
64	10S57	FIXING BOLT	1.65
66	10MPD	FIXING BOLT	1.10
71	10FJB	LEVEL WINDING RECEIVING PLATE	1.65
72	10CFU	WORM SHAFT PIN	1.10
73	10BHQ	WORM SHAFT PIN	2.75
74	108WQ	O-RING	1.65
75	101E0	LEVEL WINDING ASSEMBLY	11.55
77	10LCQ	FIXING BOLT	1.10
78	10FJZ	WASHER	1.10
79	105NC	E TYPE STOP RING 2	1.10
80	10QSE	LEVEL WINDING GUIDE	1.65
81	10SXB	FIXING BOLT	1.65
82	10LHY	FIXING BOLT	1.65
83	108PY	FRAME CONTACT WASHER	1.65
84	10SXA	FIXING BOLT	1.65
85	13GP9	SPOOL ASSEMBLY	84.15
86	10E8P	FIXING BOLT	1.65
88	101M9	BOARD MOUNTING PLATE	2.75
90	10B94	BEARING SEAL	1.65
91	10EX5	SPOOL SHAFT CONTACT B	1.10
92	13RUQ	FRAME B RECEIVER	11.00
93	104N5	BODY B CAM LEVER ADJUSTMENT WASHER	1.65
95	108EZ	B BEARING ADJUSTMENT WASHER	1.10
97	103LE	FIXING BOLT	1.10
98	10GAA	CAM LEVER ADJUSTING WASHER	1.10
103	100SE	CAM LEVER ADJUSTMENT WASHER	1.10
401	10T0Z	HANDLE FIXING NUT	2.75
402	10A3U	STAR DRAG FIXING NUT	3.85
405	10EBF	DRIVE GEAR SHAFT	11.55
407	1046W	CLUTCH YOKE	1.65
408	10EB3	CLUTCH CAM	2.75
409	1003W	CLUTCH CLAW ASSEMBLY	3.85
410	104CQ	CLUTCH CLAW SPRING	1.65
411	10EBC	CLUTCH PLATE	4.95
412	10EBG	BODY A SEAT	3.85
413	13TDF	CLUTCH LEVER SEAT (A)	1.10
414	13H6X	CLUTCH LEVER ASSEMBLY	4.95
415	13TDG	CLUTCH LEVER SEAT (B)	1.10
416	13SHX	LEVEL WIND GUARD	2.75
417	13GHB	FRAME ASSEMBLY	44.00
418	10ST5	BODY B SUBSTRATE SEAL	1.65
419	13RNQ	BODY B CAM LEVER	1.10
420	13GHD	MAGNET CAM ASSEMBLY	3.85
421	13FZP	BRAKE DIAL	3.85
422	10ST4	SOUND EMISSION SHILLING	1.65
423	13FN1	MAIN UNIT B	7.15
424	13FTW	BODY B ASSEMBLY	181.50
425	13RP1	MAIN UNIT B BOARD ASSEMBLY	143.00
501	13TXF	BODY A	16.50
502	10EB5	DRIVE GEAR	22.55
503	10EB9	PINION GEAR	11.55
504	10SSJ	STOPPER GEAR	6.05
PUNT	13JRJ	INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORIES)	2.20
