[SHIMANO] Genuine Spare Parts for 13 STELLA SW 4000XG Product Code: 030627 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 13 STELLA SW 4000XG Product Code: 030627 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$128.59 [Regular Price: US$1.10 - US$183.70]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

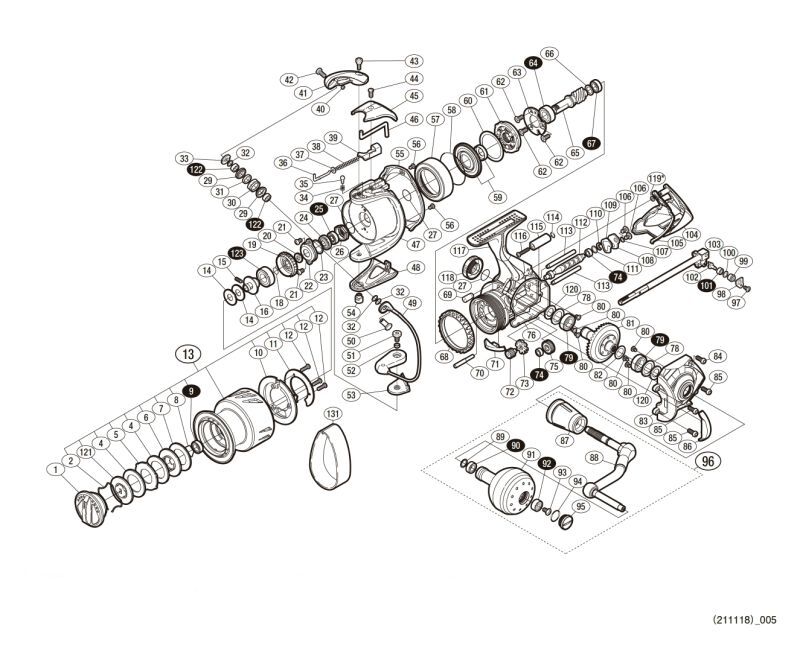

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13QPP REEL BAG (ACCESSORY) 28.05
1 102FV DRAG KNOB ASSEMBLY 101.20
2 10B8A STOPPER SPRING 1.65
4 102ZP DRAG WASHER (A) 1.65
5 10BE7 EAR WASHER 6.05
6 10B9D DRAG WASHER (A) 2.75
7 10C13 DRAG WASHER (B) 1.65
8 10GEW BEARING PULL-OUT STOPPER 1.10
9 104JT BALL BEARING (6 X 10 X 3) 13.75
10 10Q6B SPOOL PIN COVER 2.75
11 10Q6L SPOOL PIN COVER NAMEPLATE 2.75
12 10LPY FIXING BOLT 1.10
13 10HQ9 SPOOL ASSEMBLY 183.70
14 10BSJ SPOOL WASHER SET 1.10
15 10PN2 SET SCREW 1.65
16 10LTS SPOOL SHAFT BEARING GUIDE 6.05
18 107V2 RATCHET SPRING 1.65
19 107PS DRAG SOUND EMITTING RATCHET 2.75
20 103NX SPOOL RECEIVER 1.65
21 10LZ2 FIXING BOLT 2.75
22 1076P RETAINER 2.75
23 10G8C WASHER 1.10
24 107F2 ROTATING FRAME BEARING SEAL 2.75
25 103B2 ROTATING FRAME BEARING COLLAR ASSEMBLY 17.05
26 1080X ROTOR NUT 9.35
27 108WA O-RING 1.65
29 107RJ ARM ROLLER BUSHING 1.10
30 10KUL ARM ROLLER 11.55
31 10GAH ROLLER BEARING COLLAR 2.75
32 10G9X WASHER 1.10
33 1079U ARM ROLLER BEARING 1.65
34 10CH0 BAIL TRIP LEVER CLICK SPRING 1.65
35 10CHA BAIL TRIP LEVER CLICK PIN 1.65
36 105LU ARM SPRING GUIDE (A) 1.65
37 1064R ARM SPRING GUIDE (A) COLLAR 1.65
38 105FX ARM CAM SPRING 1.65
39 1077C ARM CAM SPRING SEAT 2.75
40 107X8 ARM ROLLER LUBRICATING HOLE CAP 1.65
41 1075K ARM CAM 45.10
42 10K40 FIXING BOLT 2.75
43 109GS FIXING BOLT 2.75
44 10CYU FIXING BOLT 2.75
45 108R2 ARM CAM SPRING COVER 11.55
46 108GJ BAIL TRIP LEVER 2.75
47 10FCY ROTOR 67.65
48 10M9R BALE MOUNTING BRACKET COVER 17.05
49 10PP3 BAIL ASSEMBLY 45.10
50 10L01 ARM FIXING SHAFT 2.75
51 109GT FIXING BOLT 3.85
52 107LA FIXING BOLT COLLAR 2.75
53 10D0V BALE MOUNTING CAM SEAT 2.75
54 10K4Q FIXING SHAFT FOR MOUNTING KEKAM 3.85
55 106ZU ROTATING FRAME GUARD 11.55
56 106ZG FIXING BOLT 1.65
57 10HFX ROLLER CLUTCH COVER 11.55
58 10CFY O-RING (B) 2.75
59 10QRL ROLLER CLUTCH SEAL ASSEMBLY 11.55
60 10G6J ROLLER CLUTCH OUTER WASHER 1.65
61 10QPS ROLLER CLUTCH ASSEMBLY 11.55
62 10ML2 FIXING BOLT 2.75
63 1051S BEARING PUSH PLATE 3.85
64 104Q6 BALL BEARING (7 X 14 X 5) 13.75
65 10BYM PINION GEAR 34.10
66 10BBU PINION GEAR COLLAR 3.85
67 104JS BALL BEARING (6 X 10 X 3) 13.75
68 104FW FRICTION RING 3.85
69 10AYR BODY FLANGE SEAL 2.75
70 10CL6 INTERMEDIATE GEAR SHAFT 2.75
71 107DX INTERNAL GEAR HITARI 1.65
72 106RE INTERMEDIATE GEAR (S) 9.35
73 10CNJ INTERMEDIATE GEAR (L) 6.05
74 10PDA BALL BEARING (3 X 6 X 2.5) 13.75
75 10HBK WORM SHAFT GEAR 8.25
76 10CD7 BODY SEAL 7.15
77 10CD0 BEARING SEAL 1.65
78 10BGE WASHER 1.65
79 104PT BALL BEARING (8 X 14 X 4) 13.75
80 1055G FIXING BOLT 1.65
81 10A9A DRIVE GEAR ASSEMBLY 45.10
82 10DKJ WASHER 2.20
83 1049F LID 45.10
84 10A6N FIXING BOLT 1.65
85 10A6P FIXING BOLT 1.65
86 10J3M FRICTION RING SPACER 2.75
87 10NHA HANDLE SHAFT FLANGE 56.10
88 106SA HANDLE 34.10
89 10HV3 WASHER 1.10
90 105BN BALL BEARING (5 X 9 X 3) 13.75
91 10445 HANDLE KNOB 56.10
92 10KX1 BALL BEARING (4 X 9 X 4) 13.75
93 103E9 FIXING BOLT 1.10
94 10LAB O-RING 1.10
95 10B2B HANDLE CAP 6.05
96 10HLB HANDLE ASSEMBLY 168.30
97 10MT4 FIXING BOLT 1.10
98 10HAF WORM SHAFT PIN PUSH PLATE 1.65
99 10JXN WORM SHAFT PIN COLLAR 7.15
100 1059T WASHER 1.10
101 10PC0 BALL BEARING (2 X 5 X 2.5) 13.75
102 106V4 CROSS GEAR PIN 3.85
103 10NF0 MAIN SHAFT ASSEMBLY 22.55
104 10NKN BODY GUARD 11.55
105 107HE BODY COVER 2.75
106 103L4 FIXING BOLT 1.10
107 10HWN ADJUSTMENT WASHER 1.10
108 10AT6 WORM SHAFT COVER 1.65
109 10H45 WORM SHAFT COVER SEAT 1.65
110 10CJX WORM SHAFT COLLAR 1.65
111 10J7K WORM SHAFT WASHER 1.10
112 1081Z WORM SHAFT 11.55
113 1035C SLIDER GUIDE 1.65
114 108W9 O-RING (3 X 5) 1.65
115 10AYK BODY GUARD COLLAR 2.75
116 10LSC FIXING BOLT 1.10
117 1034S BODY 157.30
118 10N41 HANDLE SCREW CAP 17.05
119 10GD5 WASHER 1.10
120 10CD1 BEARING SEALS 1.65
121 10Q6T SMALL SIZE WASHER 9.35
122 104VZ BALL BEARING (4 X 7 X 2.5) 13.75
123 10KXC BALL BEARING (8 X 16 X 5) 9.35
131 109UU THREAD STOPPER BELT (SS) (ACCESSORY) 6.05
BNKI 13QZ0 EXPLODED VIEW (ACCESSORY) 1.65
ITOS 13QPZ THREAD STOPPER SEAL 1.65
MH01 13N9P NAMEPLATE ON THE BACK OF THE LEG 2.75
OIL2 10LQ1 SSRO-01 OIL (4.5G) 3.85
TRST 13FHM INSTRUCTION MANUAL (ACCESSORY) 3.85
