[SHIMANO] Genuine Spare Parts for 07 Metanium MG RIGHT Product code: 021175 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 07 Metanium MG RIGHT Product code: 021175 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$86.63 [Regular Price: US$1.10 - US$123.75]

Prices vary according to options.

Not available
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

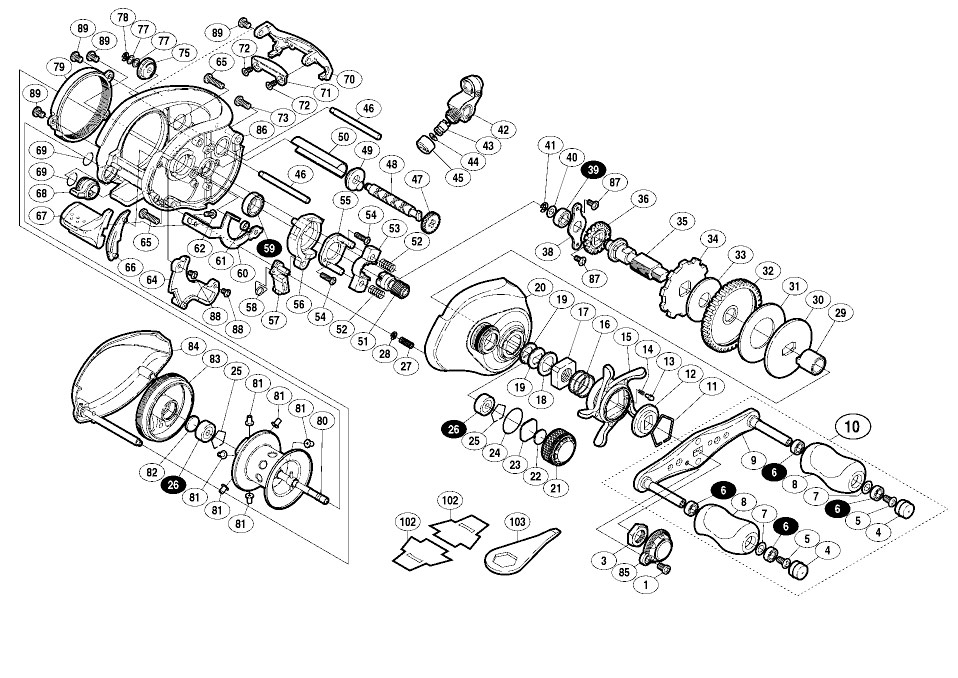

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13WHY REEL BAG 9.35
1 103H1 FIXING BOLT 1.10
3 10FSM HANDLE FIXING NUT 2.75
4 10BDW HANDLE CAP 3.85
5 103E9 FIXING BOLT 1.10
6 104VW BALL BEARING (4 X 7 X 2.5) 13.75
7 104FH WASHER 2.20
8 1064T HANDLE GRIP (FOR RIGHT SIDE, PADDLE TYPE) 11.55
9 13HS6 HANDLE ASSEMBLY 28.05
10 13HZS HANDLE ASSEMBLY 90.20
11 10KXV STAR DRAG CLICK PLATE RETAINER 1.65
12 10J26 STAR DRAG CLICK PLATE 1.65
13 10BT0 CLICK PIN 1.65
14 10BT2 CLICK SPRING 1.65
15 13UUV STAR DRAG 11.55
16 10A75 STAR DRAG SPRING 2.75
17 10A0H STAR DRAG NUT 2.75
18 10J1N STAR DRAG SPACER 1.65
19 10D60 MAIN GEAR WASHER (C) 1.65
20 13HC7 MAIN BODY A SET 67.65
21 13TY7 SPOOL DRAG KNOB 4.95
22 10896 MECHANICAL BRAKE WASHER 1.10
23 1085F MECHANICAL BRAKE WASHER 1.10
24 108WK O-RING SM14 1.65
25 10GEW BEARING RETAINING CLIP 1.10
26 105C0 BALL BEARING (3 X 10 X 4) 13.75
27 10KNJ DAMPER SPRING 1.10
28 105NB E-TYPE STOPPER RING 1.5 1.10
29 10BPF INNER TUBE 6.05
30 10D3M STAR DRAG PLATE 2.75
31 10LN7 STAR DRAG WASHER 3.85
32 10CTJ MAIN GEAR 22.55
33 10CHZ STAR DRAG WASHER 2.75
34 10D77 STOPPER GEAR 3.85
35 105HA MAIN GEAR SHAFT 22.55
36 10J72 CROSS GEAR (A) 2.75
38 109T0 MAIN GEAR SHAFT FIXING PLATE 2.75
39 105BN BALL BEARING (5 X 9 X 3) 13.75
40 10C47 MAIN GEAR SHAFT WASHER 1.10
41 105NK E TYPE STOPPER RING 2.5 1.10
42 10NYU LEVEL WINDING ASSEMBLY 11.55
43 10FFX CROSS GEAR PIN 2.75
44 10CFW ADJUSTMENT WASHER SET 1.10
45 10FJG LEVEL WINDING GUIDE 1.65
46 10GUQ LEVEL WINDING GUIDE 3.85
47 10FP8 CROSS GEAR (C) 6.05
48 104ZR CROSS GEAR SHAFT 6.05
49 10ND2 CROSS GEAR GUIDE (A) 1.65
50 10NJH LEVEL WINDING PIPE 6.05
51 10CVC PINION GEAR 17.05
52 104BM CLUTCH YOKE SPRING 1.10
53 1047Q CLUTCH YOKE 2.75
54 10LUY FIXING BOLT 1.10
55 10F5X CLUTCH CAM PUSH PLATE 3.85
56 10K0S CLUTCH CAM 2.75
57 105ZY CLUTCH CLAW 3.85
58 10N1Z CLUTCH CLAW SPRING 1.10
59 10583 BALL BEARING (8 X 12 X 3.5) 13.75
61 10Q7J CLUTCH PLATE BEARING 1.65
62 10MPW FIXING BOLT 1.10
64 10BVZ BODY A SEAT 3.85
65 103LM FIXING BOLT 1.10
66 1099J CLUTCH BAR GUIDE (B) 1.65
67 10P5A CLUTCH BAR 6.05
68 10BC1 BODY B CAM LEVER 2.75
69 10LAC O RING 1.65
70 13S7D LEVEL WINDING GUARD 4.95
71 13RVM LINE GUARD PLATE 3.85
72 10MGH FIXING BOLT 1.10
73 10M2H FIXING BOLT 1.10
75 104SZ CROSS GEAR GUIDE B 1.65
77 105EK CLICK BUTTON WASHER 1.10
78 105NC E TYPE RETAINING RING 2 1.10
79 10QLB BODY B GUIDE FIXING PLATE 6.05
80 13GJD SPOOL ASSEMBLY 73.15
81 10CPC BRAKE COLLAR (CLEAR) 1.65
82 1057S SPOOL SHAFT CONTACT SURFACE (B) 1.10
83 13FVW BODY FRAME B FIXING PLATE ASSEMBLY 11.55
84 13FJB MAIN BODY B ASSEMBLY 39.60
85 10Q60 RETAINER 6.05
86 13G0Y MAIN FRAME 123.75
87 10MT2 FIXING BOLT 1.10
88 10LV6 FIXING BOLT 1.10
89 103LB FIXING BOLT 1.10
90 10NPU CLUTCH PLATE 4.95
101 10CPE BRAKE COLLAR (GRAY) 1.65
102 10PBQ LEG PROTECTION SHEET 1.65
103 10MJ1 REEL WRENCH (ACCESSORY) 2.75
BNKI 13WLG EXPLODED VIEW (ACCESSORY) 1.65
OIL1 10LQ0 B-100 OIL (4.5G) 3.85
RC0A 10F5D ROLLER CLUTCH BEARING A-RB 17.05
TRST 13VJW INSTRUCTION MANUAL (ACCESSORY) 1.65
