[SHIMANO] Genuine Spare Parts for 22 Metanium SHALLOW EDITION L Product code: 044785 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.91 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/5343

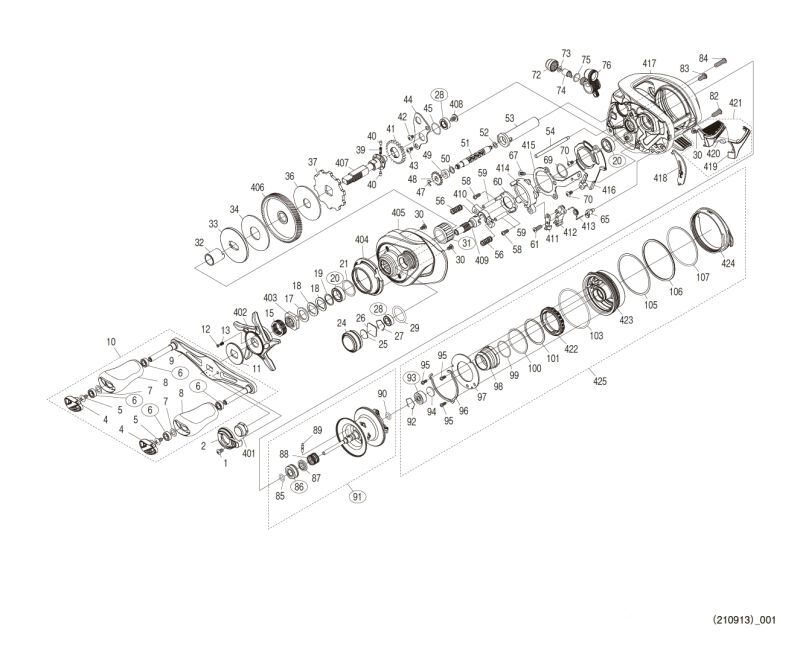

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "31 / ROLLER CLUTCH" and "89 / SPOOL CLUTCH PIN" and "86 / BALL BEARING" and "BSS2 / BRAKE SHOE (S)", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	103GX	FIXING BOLT	1.10
2	10S80	RETAINER	3.85
4	13MBT	HANDLE CAP	6.05
5	103E9	FIXING BOLT	1.10
6	104VX	BALL BEARING (4 X 7 X 2.5)	13.75
7	104FH	WASHER	2.20
8	10RMU	HANDLE KNOB	11.55
9	13AWG	HANDLE SHAFT ASSEMBLY	34.10
10	13JDQ	HANDLE ASSEMBLY	90.20
11	101JC	STAR DRAG CLICK PLATE	1.65
12	10B27	CLICK PIN	1.65
13	10988	CLICK SPRING	1.65
15	10A71	STAR DRAG SPRING	2.75
17	10J1N	STAR DRAG SPACER	1.65
18	10D60	MAIN GEAR WASHER (C)	1.65
19	105PW	STAR DRAG BEARING WASHER	1.10
20	10EX8	BALL BEARING (8 X 12 X 3.5)	13.75
21	1027V	O-RING	1.65
24	10RVW	MECHANICAL BRAKE KNOB	9.35
25	10896	MECHANICAL BRAKE WASHER	1.10
26	1085F	MECHANICAL BRAKE WASHER	1.10
27	1057X	EXTRACTION STOPPER	1.65
28	105BP	BALL BEARING (5 X 9 X 3)	13.75
29	10LA9	O-RING	1.65
30	1055J	FIXING BOLT	1.65
31	1005E	ROLLER CLUTCH *Cannot be ordered	17.05
32	10BN3	ROLLER CLUTCH INNER TUBE	6.05
33	10RW3	STAR DRAG PLATE	6.05
34	10RWJ	STAR DRAG WASHER	9.35
36	10CJ1	STAR DRAG WASHER	3.85
37	1021K	STOPPER GEAR	6.05
39	10JDX	SPRING FOR WORM SHAFT GEAR	1.65
40	10HJG	WORM SHAFT GEAR PINS	1.65
41	10057	WORM SHAFT GEAR	2.75
42	10MPF	FIXING BOLT	1.10
43	10MT2	FIXING BOLT	1.10
44	1005S	DRIVE GEAR SHAFT FIXING PLATE	2.75
45	10SZ4	O-RING	1.65
47	105NC	E TYPE RETAINING RING 2	1.10
48	10FNX	WORM SHAFT GEAR	2.75
49	10PXY	HANDLE GRIPPED BUSHING (B)	1.65
50	10GFG	WASHER	1.10
51	10EET	WORM SHAFT	2.75
52	100T8	WASHER	1.10
53	1005Z	LEVEL WINDING PIPE	1.65
54	1006J	LEVEL WINDING GUIDE	3.85
56	104BU	CLUTCH YOKE SPRING	1.10
58	10LVH	CLUTCH CAM FIXING BOLT	1.10
59	10RVR	CLUTCH CAM PUSH COVER	1.65
60	10RWA	CLUTCH CAM PUSH PLATE	8.25
61	10559	CLUTCH CAM FIXING BOLT	1.65
65	10RWD	CLUTCH SPRING HOLDER	1.65
67	103C0	FIXING BOLT	1.10
69	10G8C	WASHER	1.10
70	100BD	FIXING BOLT	1.65
72	10FJB	LEVEL WINDING GUIDE	1.65
73	13GGU	CLUTCH SPRING HOLDER	2.20
74	10211	WORM SHAFT PIN	2.75
75	108WQ	O-RING	1.65
76	100QL	LEVEL WINDING ASSEMBLY	34.10
82	101GQ	FIXING BOLT	1.65
83	10LZD	FIXING BOLT	1.65
84	103LN	FIXING BOLT	1.65
85	10TNF	O-RING	1.65
86	1005D	BALL BEARING (5 X 11 X 4) *Cannot be ordered	13.75
87	10SWZ	BUSH	1.65
88	10SJF	BEARING PUSH SPRING	1.65
89	10MD0	SPOOL CLUTCH PIN *Cannot be ordered	1.65
90	10EZ7	O-RING	1.10
91	13GP5	SPOOL ASSEMBLY (WITH BEARING)	121.00
92	10GEW	BEARING STOPPER	1.10
93	10S37	BALL BEARING (3 X 10 X 4)	13.75
94	1057S	SPOOL SHAFT CONTACT (B)	1.10
95	1026U	FIXING BOLT	1.65
96	10TUC	CAM LEVER RETAINING RING	1.65
97	10E6J	BR DIAL FIXING PLATE	3.85
98	10T8Z	BRAKE PIPE GEAR ASSEMBLY	17.05
99	10LA8	O-RING	1.65
100	10CG0	O-RING 19.5	1.65
101	10T9R	WASHER	2.20
103	108WZ	O-RING	3.85
105	10E72	WASHER	2.20
106	10SKT	WASHER	3.85
107	1006P	O-RING	1.65
401	101DW	HANDLE FIXING NUT	6.05
402	10RW4	STAR DRAG	11.55
403	10A0C	STAR DRAG FIXING NUT	2.75
404	13U90	BODY A NAMEPLATE	9.90
405	13U30	BODY A	90.20
406	13UYE	DRIVE GEAR	24.75
407	10RWL	DRIVE GEAR SHAFT	22.55
408	10PVU	FIXING BOLT	1.65
409	1006L	PINION GEAR	17.05
410	1046U	CLUTCH YOKE	1.65
411	10RWF	CLUTCH CLAW (B)	1.65
412	10RWC	CLUTCH CLAW (A)	1.65
413	10N1V	CLUTCH CLAW SPRING	1.65
414	10SKS	CLUTCH CAM	2.75
415	10RW6	CLUTCH PLATE	4.95
416	10RVT	BODY A SEAT	3.85
417	13GB4	FRAME ASSEMBLY	123.75
418	1007C	CLUTCH BAR GUIDE (B)	1.65
419	13T7V	CLUTCH BAR NAMEPLATE	6.05
420	10RW1	CLUTCH BAR	4.95
421	13H6P	CLUTCH BAR ASSEMBLY	11.55
422	10055	BR KNOB	6.05
423	13FZM	FRAME B GUIDE ASSEMBLY	45.10
424	13RNV	BODY B CAM LEVER	9.35
425	13FTL	BODY B ASSEMBLY	84.15
BNKI	13WV9	EXPLODED VIEW (ACCESSORIES)	1.65
BSS2	10RC4	BRAKE SHOES (S) *Cannot be ordered	1.10
BST1	13SFU	BRAKE SHAFT	1.10
OIL1	10LQ0	B-100 OIL (4.5G)	3.85
TRST	13PLC	INSTRUCTION MANUAL (ACCESSORY)	1.65
