[SHIMANO] Genuine Spare Parts for 17 CALCUTTA CONQUEST BFS HG LEFT Product code: 036766**Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.85 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/3671

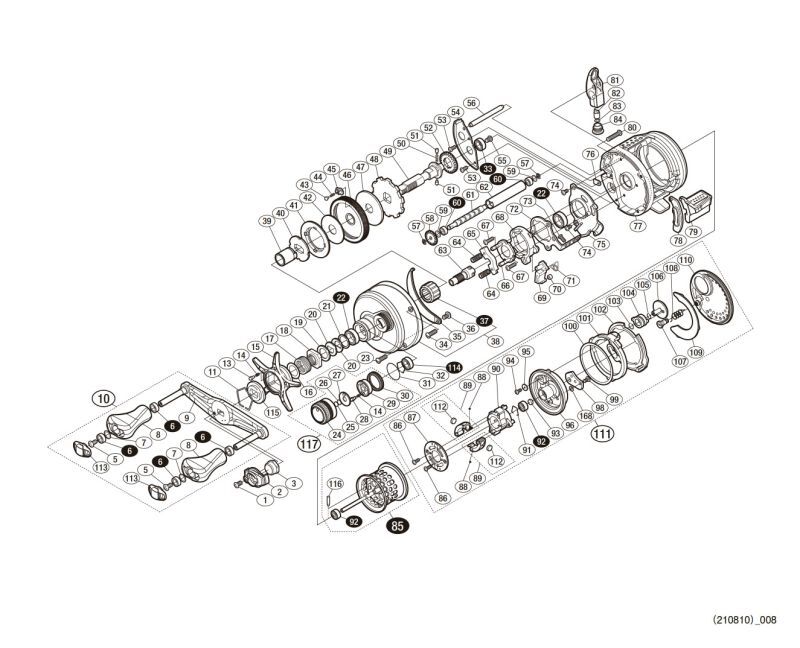

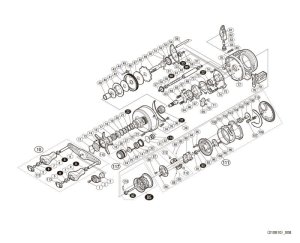

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "37 / ROLLER CLUTCH", "92 / BALL BEARING (3×7×3)" and "116 / SPOOL CLUTCH PIN", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
*F01	13WHP	REEL BAG (ACCESSORY)	9.35
1	10R1Q	FIXING BOLT	1.65
2	10Q5S	RETAINER	2.75
3	10FFG	HANDLE FIXING NUT	6.05
5	103E9	FIXING BOLT	1.10
6	104VX	BALL BEARING (4×7×2.5)	13.75
7	104FH	WASHER	2.20
8	10327	HANDLE KNOB	11.55
9	13HUT	HANDLE KNOB	34.10
10	13AWH	HANDLE ASSEMBLY	112.20
11	10KXV	STAR DRAG SOUND EXTRACTING PLATE STOPPER	1.65
13	10B27	CLICK PIN	1.65
14	10988	CLICK SPRING	1.65
15	13B7F	STAR DRAG	22.55
16	10HHN	SLIDER WASHER (9×13×0.3)	1.65
17	10A71	STAR DRAG SPRING	2.75
18	10A0C	STAR DRAG FIXING NUT	2.75
19	10J1N	STAR DRAG SPACER	1.65
20	10D60	MAIN GEAR WASHER (C)	1.65
21	105PW	STAR DRAG BEARING WASHER	1.10
22	10EX8	BALL BEARING (8 X 12 X 3.5)	13.75
23	10C3N	FIXING BOLT	2.75
24	13B6U	MECHANICAL BRAKE KNOB	17.05
25	10897	SPOOL DRAG WASHER (B)	1.10
26	1085G	SPOOL DRAG WASHER	1.10
27	13U6K	SPOOL DRAG KNOB CLICK PLATE	2.75
28	10BT0	CLICK PIN	1.65
29	13UBE	SD KNOB CLICK PIN HOLDER	1.65
30	10L70	SPOOL DRAG KNOB CLICK STOPPER RING	2.75
31	109EB	O-RING S11.2	1.65
32	1057X	STOPPER	1.65
33	105BR	BALL BEARING (5×9×3)	13.75
34	10C3M	BODY A FIXING BOLT (C)	2.75
35	10QCD	MAIN UNIT FIXING PLATE NAMEPLATE	1.65
36	10CZ5	FIXING BOLT	2.75
37	10F34	ROLLER CLUTCH *Cannot be ordered	22.55
38	13HMF	MAIN UNIT A ASSEMBLY	112.20
39	10BMX	ROLLER CLUTCH INNER TUBE	9.35
40	10D55	STAR DRAG PLATE	6.05
41	10JB0	DRAG CLICK SYLLATIC RATCHET	2.75
42	10CKS	STAR DRAG WASHER	6.05
43	10C0T	DRAG CLICK PIN	2.75
44	10J8A	DRAG CLICK SPRING	1.65
45	10J87	DRAG SPRING HOLDER	1.65
46	13B7D	DRIVE GEAR	28.05
47	10CJ4	STAR DRAG WASHER (A)	3.85
48	10D70	STOPPER GEAR	3.85
49	105CB	DRIVE GEAR SHAFT	22.55
50	10JDX	SPRING FOR WORM SHAFT GEAR	1.65
51	10HJG	PIN FOR WORM SHAFT GEAR	1.65
52	10J6W	WORM SHAFT GEAR	3.85
53	10LVG	FIXING BOLT	1.10
54	13B7T	DRIVE GEAR SHAFT FIXING PLATE	9.35
55	10PVU	FIXING BOLT	1.65
56	13SGE	LEVEL WINDING GUIDE	3.85
57	105NC	E TYPE STOP RING 2	1.10
58	10FNW	WORM SHAFT GEAR	2.75
59	10GHF	WASHER	1.10
60	10PDA	BALL BEARING (3×6×2.5)	13.75
61	13S5G	WORM SHAFT	9.35
62	13B5N	LEVEL WINDING PIPE	11.55
63	13SNE	PINION GEAR	22.55
64	104BJ	CLUTCH YOKE SPRING	1.10
65	10470	CLUTCH YOKE	1.65
66	10F3Y	CLUTCH CAM PUSH PLATE	3.85
67	10LUZ	FIXING BOLT	1.10
68	10K0Y	CLUTCH CAM	2.75
69	105ZV	CLUTCH CLAW	3.85
70	1048C	CLUTCH CLAW BUSHING	1.65
71	10N1V	CLUTCH CLAW SPRING	1.65
72	10QGN	CLUTCH PLATE	4.95
73	103C0	FIXING BOLT	1.10
74	10MT4	FIXING BOLT	1.10
75	13B71	BODY A SEAT	3.85
76	10FTB	WORM SHAFT EXTRACTION STOPPER	2.75
77	13G94	FRAME	146.30
78	10971	CLUTCH LEVER HOLDER	1.65
79	13H23	CLUTCH LEVER	9.35
80	10A6J	FIXING BOLT	3.85
81	10TSX	LEVEL-WIND ASSEMBLY	31.90
82	10FFT	WORM SHAFT PIN	3.85
83	10GFH	WASHER	1.10
84	10FJC	LEVEL WINDING RECEIVER	6.05
85	13GTU	SPOOL ASSEMBLY (WITH BEARING)	134.75
86	10TNZ	FIXING BOLT	1.65
87	13B5H	BRAKE FIXING PLATE	3.85
88	10TM9	BRAKE COIL SPRING	1.65
89	13JQ0	MAGNET HOLDER ASSEMBLY	13.75
90	13B69	BRAKE MOUNTING STAND	2.75
91	10GEV	BEARING RETAINING CLAMP	1.10
92	10KDE	BALL BEARING (3 X 7 X 3) *Cannot be ordered	13.75
93	1085H	MECHANICAL BRAKE WASHER	1.10
94	13JWQ	FIXING BOLT	1.65
95	13PK3	BRACKET WASHER	1.10
96	13B58	FRAME B HOLDER	20.35
98	10AYW	DAMPER BUSHING	2.75
99	10LVE	FIXING BOLT	1.10
100	104MX	BODY B CAM LEVER ADJUSTMENT WASHER	1.65
101	104NC	FRAME B CAM	2.75
102	10BAR	BODY B CAM LEVER	2.75
103	10TNF	O RING	1.65
104	13B5C	BRAKE CAM	2.75
105	10CFZ	O RING	1.65
106	13B4M	BR KNOB	13.75
107	10GM5	BODY B SHAFT	6.05
108	10KN9	DAMPER SPRING	1.65
109	104H7	BODY B SEAL	3.85
110	13B48	BODY B	45.10
111	13FS2	BODY B ASSEMBLY	118.25
112	13B5D	MAGNET	2.75
113	10TNJ	HANDLE CAP	3.85
114	105BP	BALL BEARING (5×9×3)	13.75
115	10J26	STAR DRAG CLICK PLATE	1.65
116	10MCZ	SPOOL CLUTCH PIN *Cannot be ordered	2.75
117	13HCP	MECHANICAL BRAKE KNOB ASSEMBLY	28.05
168	10280	WASHER	1.10
BNKI	13WTU	EXPLODED VIEW (ACCESSORIES)	1.65
OIL1	10LQ0	B-100 OIL (4.5G)	3.85
OIL3	10TR6	BFS OIL	3.85
TRST	13VT3	INSTRUCTION MANUAL (ACCESSORY)	1.65
