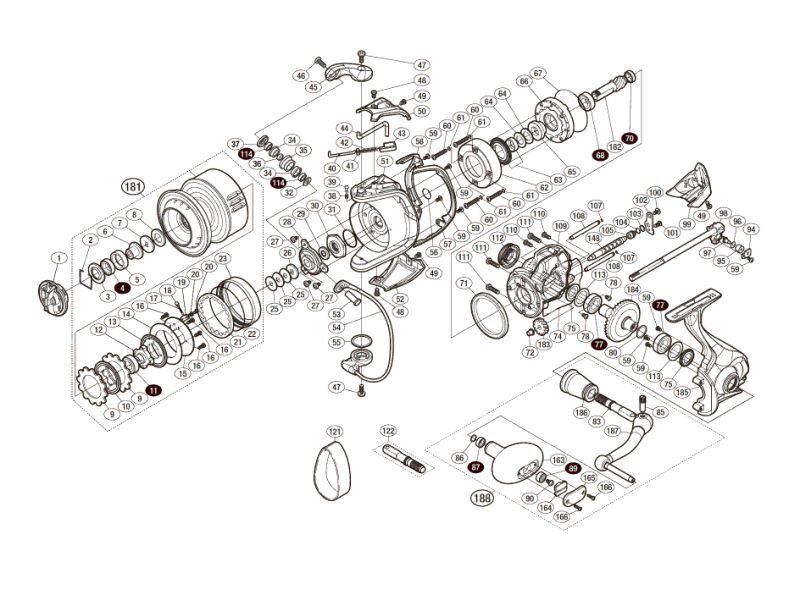

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13WJD REEL BAG 11.55
1 10GZW DRAG KNOB ASSEMBLY 22.55
2 10B6K STOPPER SPRING 1.10
3 10LQZ WATERPROOF SEAL 6.05
4 10KX7 BALL BEARINGS (10 X 15 X 4) 13.75
5 10LWS SPOOL BEARING SPACER 6.05
6 10LWK SPOOL BEARING GUIDE 6.05
7 10BCD OVAL WASHER 1.65
8 10349 DRAG WASHER 2.75
9 10C1E DRAG WASHER 11.55
10 10BS8 DRAG PLATE 6.05
11 10BGD BALL BEARING (9 X 17 X 5) 13.75
12 10LTY MAIN SHAFT BEARING GUIDE 22.55
13 10BY4 DRAG PLATE 9.35
14 10JPK MAIN SHAFT BEARING SEAL 2.75
15 109M3 DRAG PLATE WASHER 1.65
16 10LVM FIXING BOLT 1.10
17 10JMG DRAG CLICK SPRING 1.65
18 10382 SPOOL PIN 2.75
19 109ZN DRAG CLICK SPRING GUIDE 1.65
20 10LV7 FIXING BOLT 1.10
21 109ZQ DRAG CLICK RATCHET 2.75
22 108WD O-RING AS568-31 1.10
23 10C1N DRAG COVER 11.55
25 101DJ SPOOL WASHER SET 1.65
26 103MW SPOOL GUIDE 1.65
27 10LZ1 FIXING BOLT 1.10
28 10K30 RETAINER 2.75
29 107F3 ROTOR FRAME BEARING SEAL 2.75
30 1067V ROTOR NUT 9.35
31 10CG0 O-RING 19.5 1.65
32 107F1 ARM FIXING SHAFT COLLAR 3.85
34 107RM LINE ROLLER BUSHING 2.75
35 10KUV LINE ROLLER 11.55
36 10GAG ROLLER BEARING COLLAR 3.85
37 107A0 LINE ROLLER BEARING COLLAR 3.85
38 1077Q BAIL TRIP LEVER CLICK SPRING 1.65
39 10CH7 CLICK PIN 1.65
40 105YX ARM SPRING GUIDE (A) 1.65
41 10HD9 SPRING GUIDE (A) COLLAR 1.65
42 105FY ARM CAM SPRING 1.65
43 1077M ARM CAM SPRING SEAT 2.75
44 106KX BAIL TRIP LEVER 3.85
45 10KLU ARM CAM 34.10
46 10PVR FIXING BOLT 1.65
47 10PSH FIXING BOLT 1.65
48 10PSE FIXING BOLT 1.65
49 10PRX FIXING BOLT 1.65
50 1087V ARM CAM SPRING COVER 6.05
51 10PY4 ROTOR 67.65
52 10MN8 BAIL MOUNTING BRACKET COVER 6.05
53 10Q3F ARM FIXING SHAFT 9.35
54 1073R BAIL ASSEMBLY 45.10
55 10HDP ARM CAM WASHER 1.65
56 108WP O-RING 1.65
57 10744 ROTOR GUARD (A) 3.85
58 107AF ROTOR GUARD (B) 3.85
59 10MT4 FIXING BOLT 1.10
60 103M6 FIXING BOLT 1.10
61 10LAD O-RING 1.10
62 10MHD ROLLER CLUTCH SEAL COVER 2.75
63 10QRR ROLLER CLUTCH SEAL ASSEMBLY 11.55
64 10J2H WASHER 1.65
65 10668 ROLLER CLUTCH INNER 6.05
66 10QPL ROLLER CLUTCH ASSEMBLY 11.55
67 10MLR O-RING 3.85
68 10BGC BALL BEARING (9 X 17 X 5) 13.75
70 104PN BALL BEARING (7 X 11 X 3) 13.75
71 104GA FRICTION RING 3.85
72 106E8 CROSS GEAR BUSHING (FRONT) 1.65
74 10CDE BODY SEAL 7.15
75 10CD5 BEARING SEAL 3.85
77 104PW BALL BEARING (10 X 19 X 5) 13.75
78 103L6 FIXING BOLT 1.10
80 105U4 ADJUSTMENT WASHER SET 1.10
83 10F8G HANDLE SHAFT (LEFT HAND DRIVE ONLY) 9.35
85 10PV0 HANDLE SHAFT BOLT 3.85
86 10HV3 WASHER 1.10
87 105BP BALL BEARING (5 X 9 X 3) 13.75
89 10KX2 BALL BEARING (4 X 9 X 4) 13.75
90 103E9 FIXING BOLT 1.10
94 10H7R CROSS GEAR PIN PUSH PLATE 1.65
95 10JXJ CROSS GEAR PIN COLLAR 2.75
96 1059T WASHER 1.10
97 106V5 CROSS GEAR PIN 6.05
98 102J3 MAIN SHAFT ASSEMBLY 22.55
99 10NNC BODY GUARD 11.55
100 103LD FIXING BOLT 1.10
101 103KY FIXING BOLT 1.10
102 10ATG WORM SHAFT COVER 1.65
103 10HV2 WASHER 1.10
104 10TNF O-RING 1.65
105 106M6 WORM SHAFT BUSH (REAR) 2.75
107 10JAB O-RING 1.65
108 1035P SLIDER GUIDE 2.75
109 10BA2 BODY 34.10
110 10PSB FIXING BOLT 1.65
111 10PVQ FIXING BOLT 1.65
112 10N4K HANDLE SCREW CAP 11.55
113 10BGK WASHER 1.65
114 104K5 BALL BEARING (5 X 8 X 2.5) 13.75
121 109UT THREAD STOPPER BELT (ACCESSORY) 6.05
122 10FHX HANDLE SHAFT (RIGHT H ONLY) (ACCESSORY) 9.35
148 1068B WORM SHAFT 11.55
163 102KE HANDLE KNOB 22.55
164 10B97 HANDLE CAP 2.75
165 108T1 HANDLE KNOB NAMEPLATE 3.85
166 103NM FIXING BOLT 2.75
181 10862 SPOOL ASSEMBLY 172.70
182 10C2A PINION GEAR 17.05
183 10HES WORM SHAFT GEAR 6.05
184 10ELS DRIVE GEAR ASSEMBLY 39.60
185 104HF LID WITH LEGS 90.20
186 10NHN HANDLE SHAFT FLANGE 22.55
187 103WD HANDLE 34.10
188 10NBB HANDLE ASSEMBLY 101.20
BNKI 13R0C EXPLODED VIEW (ACCESSORIES) 1.65
DDJG 13R3K DRAG COVER TIGHTENING JIG 34.10
ITOS 13QPZ STOPPER SEAL 1.65
MH01 13NED NAMEPLATE ON THE BACK OF THE FOOT 2.75
TRST 13PMG INSTRUCTION MANUAL (ACCESSORY) 1.65
