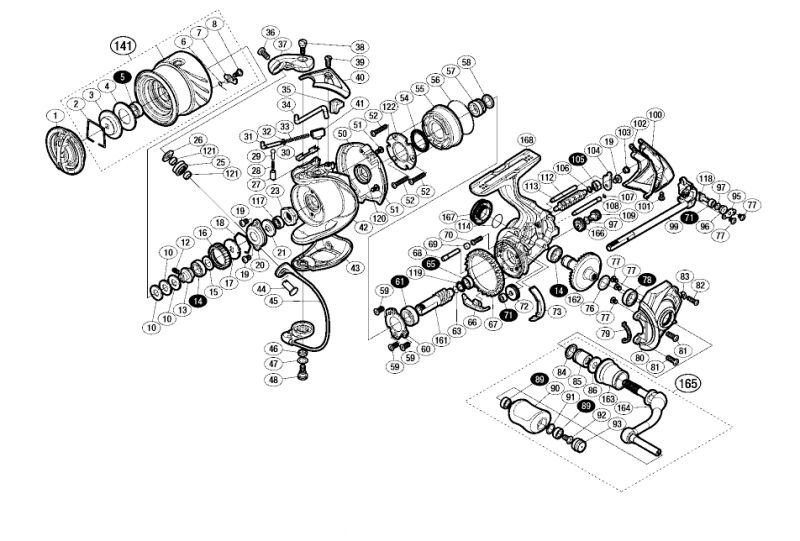

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13QPT REEL BAG (ACCESSORY) 12.65
1 102EQ DRAG KNOB 101.20
2 10B87 STOPPER SPRING 1.65
3 10B9X OVAL WASHER 3.85
4 102ZF DRAG WASHER 1.65
5 104JT BALL BEARING (6 X 10 X 3) 13.75
6 10BQE SPOOL PIN SPRING 1.65
7 10388 SPOOL PIN 1.65
8 10A6F FIXING BOLT 1.65
10 10BU7 SPOOL WASHER SET 1.10
12 10PN2 SET SCREW 1.65
13 10LTR SPOOL SHAFT BEARING GUIDE 6.05
14 104PP BALL BEARING (7 X 11 X 3) 13.75
15 102VD WASHER 1.10
16 107PQ DRAG SOUNDING SILATCHET 3.85
17 103PC SPOOL RECEIVER 1.65
18 107V3 RATCHET SPRING 1.65
19 103LH FIXING BOLT 2.75
20 1076P RETAINER 2.75
21 107L2 ROTOR BEARING SEAL 3.85
23 10814 ROTOR NUT 9.35
25 10KXZ LINE ROLLER 22.55
26 1079U ARM ROLLER RECEIVER 1.65
27 107XA SOUNDING SPRING COLLAR 1.65
28 1077T BAIL TRIP LEVER CLICK SPRING 1.65
29 106ZF BAIL TRIP LEVER CLICK PIN 1.65
30 107L8 BAIL SPRING SEAT 1.65
31 105YY ARM SPRING GUIDE (A) 3.85
32 1064R ARM SPRING GUIDE (A) COLLAR 1.65
33 105R3 ARM CAM SPRING 1.65
34 106KR INNER GERI LEVER 2.75
35 1072J INNER GERI LEVER COVER 1.65
36 10K40 FIXING BOLT 2.75
37 10KLN ARM CAM 7.15
38 109GS FIXING BOLT 2.75
39 10CYU FIXING BOLT 2.75
40 10884 ARM CAM SPRING COVER 11.55
41 107A9 ARM CAM SPRING SEAT 2.75
42 10Q1N ROTOR 101.20
43 10MNH BALE MOUNTING BRACKET COVER 17.05
44 10L02 ARM FIXING SHAFT 3.85
45 1073J BAIL ASSEMBLY 45.10
46 10K55 BALE MOUNTING CAM COLLAR 1.65
47 10G6C WASHER 1.10
48 109GU FIXING BOLT 3.85
50 10747 ROTOR GUARD 11.55
51 10MT4 FIXING BOLT 1.10
52 10MTG FIXING BOLT 1.65
54 10MH3 ROLLER CLUTCH SEAL 3.85
55 10QPJ ROLLER CLUTCH ASSEMBLY 12.65
56 10MLT O-RING 3.85
57 107S5 ROLLER CLUTCH INNER COLLAR 2.75
58 10H4G ROLLER CLUTCH INNER COLLAR 1.65
59 10ML6 FIXING BOLT 1.65
60 10593 BEARING PUSH PLATE 2.75
61 104JH BALL BEARING (7 X 13 X 4) 13.75
63 10CJV CROSS GEAR SHAFT COLLAR 2.75
65 104K4 BALL BEARING (5 X 8 X 2.5) 13.75
66 107DZ BAIL TRIP STRIKE 1.65
67 104FU FRICTION RING 3.85
68 10CL9 INTERMEDIATE GEAR SHAFT 3.85
69 10AYS BODY FLANGE SEAL 2.75
70 10LPX FIXING BOLT 1.10
71 10PC0 BALL BEARING (2 X 5 X 2.5) 13.75
72 10HBP WORM SHAFT GEAR 9.35
73 10J3N FRICTION RING SPACER 2.75
76 10JDC ADJUSTMENT WASHER SET 1.10
77 1055G FIXING BOLT 1.65
78 104JD BALL BEARING (7 X 13 X 4) 13.75
79 10CBC FOOT FLANGE SEAL 2.75
80 104D3 FOOT 56.10
81 10M2C FIXING BOLT 1.10
82 10LUY FIXING BOLT 1.10
83 10C2G COVER FIXING BOLT WASHER 2.75
84 10PXU HANDLE SHAFT SEAL 2.75
85 10PQD HANDLE SHAFT FLANGE (B) 9.35
86 10FMF HANDLE WASHER 1.65
89 104VX BALL BEARING (4 X 7 X 2.5) 13.75
90 1036A HANDLE KNOB 22.55
91 104FH WASHER 2.20
92 103E9 FIXING BOLT 1.10
93 10BFB HANDLE CAP 3.85
95 10HAG WORM SHAFT PIN PUSH PLATE 1.65
96 10JXQ WORM SHAFT PIN COLLAR 2.75
97 1059T WORM SHAFT PIN COLLAR 1.10
99 102HZ MAIN SHAFT ASSEMBLY 30.80
100 10NL3 BODY GUARD 11.55
101 106ZG FIXING BOLT 1.65
102 107HH BODY COVER 1.65
103 10AYN BODY GUARD COLLAR 2.75
104 10AT9 WORM SHAFT COVER 1.65
105 10PDA BALL BEARING (3 X 6 X 2.5) 13.75
106 10J7K WASHER 1.10
107 10JAB O-RING 1.65
108 104MA SLIDER GUIDE (B) 3.85
109 106RJ INTERMEDIATE GEAR (S) 8.25
112 10686 WORM SHAFT 11.55
113 1035K SLIDER GUIDE (A) 3.85
114 108WA O-RING 1.65
117 103B1 ROTOR RECEIVER COLLAR ASSEMBLY 17.05
118 106VK WORM SHAFT PIN 4.95
119 10J6E PINION GEAR SPACER 1.65
120 103SG ROTOR COLLAR 6.60
121 103TX LINE ROLLER BEARING COLLAR 5.50
122 10NHU ROLLER CLUTCH COVER PLATE 6.05
131 10PBS LEG PROTECTION SHEET (ACCESSORY) 2.75
141 109FE SPOOL ASSEMBLY 129.25
161 13L90 PINION GEAR 20.35
162 13CY5 DRIVE GEAR ASSEMBLY 39.60
163 13MGE HANDLE SHAFT FLANGE 22.55
164 13E0A HANDLE 45.10
165 13EKU HANDLE ASSEMBLY 123.75
166 10CQE INTERMEDIATE GEAR (L) 9.35
167 13LPV HANDLE SCREW CAP 17.05
168 13D9A BODY 168.30
BNKI 13R02 EXPLODED VIEW (ACCESSORIES) 1.65
ITOS 13QPZ STOPPER SEAL 1.65
MH01 13NDG NAMEPLATE ON BACK OF LEG 3.85
SI00 13QUF CAUTIONARY NOTE 1.65
TRST 13PMG INSTRUCTION MANUAL (ACCESSORY) 1.65
