[SHIMANO] Genuine Spare Parts for 23 Metanium 101HG LEFT Product code: 046123 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.91 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/5991

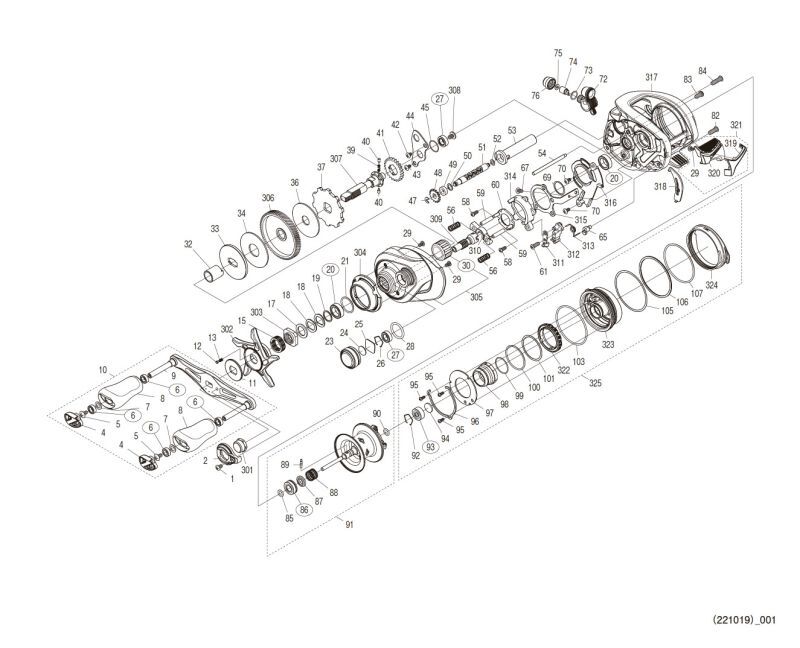

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "30 / ROLLER CLUTCH" and "89 / SPOOL CLUTCH PIN" and "86 / BALL BEARING", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	10DN7	FIXING BOLT	1.65
2	1017T	RETAINER	3.85
4	10RLX	HANDLE CAP	6.05
5	103E9	FIXING BOLT	1.10
6	104VX	BALL BEARING (4 X 7 X 2.5)	13.75
7	104FH	WASHER	2.20
8	10RMU	HANDLE KNOB	11.55
9	140Z1	HANDLE SHAFT ASSEMBLY	34.10
10	140Z3	HANDLE ASSEMBLY	90.20
11	101JC	STAR DRAG CLICK PLATE	1.65
12	10B27	CLICK PIN	1.65
13	10988	CLICK SPRING	1.65
15	10A71	STAR DRAG SPRING	2.75
17	10J1N	STAR DRAG SPACER	1.65
18	10D60	MAIN GEAR WASHER (C)	1.65
19	105PW	STAR DRAG BEARING WASHER	1.10
20	10EX8	BALL BEARING (8 X 12 X 3.5)	13.75
21	1027V	O-RING	1.65
23	10RVW	MECHANICAL BRAKE KNOB	9.35
24	10896	MECHANICAL BRAKE WASHER	1.10
25	1085F	MECHANICAL BRAKE WASHER	1.10
26	1057X	EXTRACTION STOPPER	1.65
27	105BP	BALL BEARING (5 X 9 X 3)	13.75
28	10LA9	O-RING	1.65
29	1055J	FIXING BOLT	1.65
30	1005E	ROLLER CLUTCH *Cannot be ordered	17.05
32	10BN3	ROLLER CLUTCH INNER TUBE	6.05
33	10RW3	STAR DRAG PLATE	6.05
34	10RWJ	STAR DRAG WASHER	9.35
36	10CJ1	STAR DRAG WASHER	3.85
37	1021K	STOPPER GEAR	6.05
39	10JDX	SPRING FOR WORM SHAFT GEAR	1.65
40	10HJF	WORM SHAFT GEAR PINS	1.65
41	10057	WORM SHAFT GEAR	2.75
42	10MPF	FIXING BOLT	1.10
43	10MT2	FIXING BOLT	1.10
44	1005S	DRIVE GEAR SHAFT FIXING PLATE	2.75
45	10SZ4	O-RING	1.65
47	105NC	E TYPE RETAINING RING 2	1.10
48	10FNX	WORM SHAFT GEAR	2.75
49	10PXY	HANDLE GRIPPED BUSHING (B)	1.65
50	10GFG	WASHER	1.10
51	10EET	WORM SHAFT	2.75
52	100T8	WASHER	1.10
53	1005Z	LEVEL WINDING PIPE	1.65
54	1006J	LEVEL WINDING GUIDE	3.85
56	104BU	CLUTCH YOKE SPRING	1.10
58	10LVH	CLUTCH CAM FIXING BOLT	1.10
59	10RVR	CLUTCH CAM PUSH COVER	1.65
60	10RWA	CLUTCH CAM PUSH PLATE	8.25
61	10559	CLUTCH CAM FIXING BOLT	1.65
65	10RWD	CLUTCH SPRING HOLDER	1.65
67	103C0	FIXING BOLT	1.10
69	10G8C	WASHER	1.10
70	100BD	FIXING BOLT	1.65
72	100J9	LEVEL WINDING ASSEMBLY	39.60
73	108WQ	O-RING	1.65
74	10211	WORM SHAFT PIN	2.75
75	13GGU	WORM SHAFT PIN	2.20
76	10FJB	LEVEL WINDING GUIDE	1.65
82	101GQ	FIXING BOLT	1.65
83	10LZD	FIXING BOLT	1.65
84	103LN	FIXING BOLT	1.65
85	10TNF	O-RING	1.65
86	1005D	BALL BEARING (5 X 11 X 4) *Cannot be ordered	13.75
87	10SWZ	BUSH	1.65
88	10SJF	BEARING PUSH SPRING	1.65
89	10MD0	SPOOL CLUTCH PIN *Cannot be ordered	1.65
90	10EZ7	O-RING	1.10
91	140ZL	SPOOL ASSEMBLY	132.00
92	10GEW	BEARING STOPPER	1.10
93	10S37	BALL BEARING (3 X 10 X 4)	13.75
94	1057S	SPOOL SHAFT CONTACT (B)	1.10
95	1026U	FIXING BOLT	1.65
96	10TUC	CAM LEVER RETAINING RING	1.65
97	10E6J	BR DIAL FIXING PLATE	3.85
98	10T8Z	BRAKE PIPE GEAR ASSEMBLY	17.05
99	10LA8	O-RING	1.65
100	10CG0	O-RING 19.5	1.65
101	10T9R	WASHER	2.20
103	108WZ	O-RING	3.85
105	10E72	WASHER	2.20
106	10SKT	WASHER	3.85
107	1006P	O-RING	1.65
301	101DW	HANDLE FIXING NUT	6.05
302	10RW4	STAR DRAG	11.55
303	10A0C	STAR DRAG FIXING NUT	2.75
304	10RVZ	BODY A NAMEPLATE	3.85
305	140YX	BODY A ASSEMBLY	107.25
306	1021R	DRIVE GEAR	24.75
307	10RWL	DRIVE GEAR SHAFT	22.55
308	10PVU	FIXING BOLT	1.65
309	1005X	PINION GEAR	17.05
310	1046U	CLUTCH YOKE	1.65
311	10RWF	CLUTCH CLAW (B)	1.65
312	10RWC	CLUTCH CLAW (A)	1.65
313	14026	CLUTCH CLAW SPRING	1.65
314	10SKS	CLUTCH CAM	2.75
315	10RW6	CLUTCH PLATE	4.95
316	10RVT	BODY A SEAT	3.85
317	100NW	FRAME ASSEMBLY	123.75
318	1007C	CLUTCH BAR GUIDE (B)	1.65
319	10RWB	CLUTCH BAR NAMEPLATE	6.05
320	10RW1	CLUTCH BAR	4.95
321	100P2	CLUTCH BAR ASSEMBLY	11.55
322	10055	BR KNOB	6.05
323	10T8Y	FRAME B GUIDE ASSEMBLY	45.10
324	10RVY	BODY B CAM LEVER	9.35
325	100NY	BODY B ASSEMBLY	84.15
BNKI	140YT	EXPLODED VIEW (ACCESSORIES)	1.65
BSS2	10RC4	BRAKE SHOE (S)	1.10
BST1	13SFU	BRAKE SHAFT	1.10
TRST	13VTT	INSTRUCTION MANUAL (ACCESSORY)	1.65
