[SHIMANO] Genuine Spare Parts for 20 TWIN POWER C2000SHG Product Code: 041371 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.66 - US$54.12 [Regular Price: US$1.10 - US$90.20]
Prices vary according to options.
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.
- Genuine Spool Purchase
* If you just want the genuine spool (No.131 / Spool Unit), you can purchase
it from the following link without waiting for weeks if it's in our stock
now.
https://www.hedgehog-studio.co.jp/product/4787

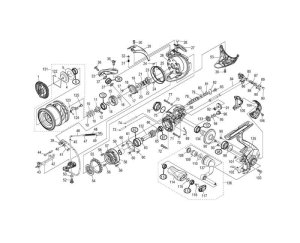

Reel Part's Schematic Diagram |
* Circled figures indicate bearings.
* Please note disassembly is at your own risk.
No. | S Part No. | Description | Price (USD) |
*F01 | 13QN1 | REEL BAG | 3.85 |
1 | 10RPT | DRAG KNOB ASSEMBLY | 9.35 |
4 | 10B9X | OVAL WASHERS | 3.85 |
5 | 102ZF | DRAG WASHER | 1.65 |
6 | 104JT | BALL BEARING (6 X 10 X 3) | 13.75 |
10 | 10DHG | SPOOL WASHER | 2.20 |
11 | 10DKF | MAIN SHAFT BEARING GUIDE | 6.05 |
12 | 10PN2 | SET SCREW | 1.65 |
13 | 104PP | BALL BEARING (7 X 11 X 3) | 13.75 |
14 | 107V2 | RATCHET SPRING | 1.65 |
15 | 10SYS | DRAG SOUNDING RATCHET | 2.75 |
16 | 103PE | SPOOL HOLDER | 1.65 |
17 | 103LB | FIXING BOLT | 1.10 |
18 | 1076N | RETAINER | 2.75 |
19 | 1017W | ROTOR BEARING SEAL | 1.65 |
20 | 10G8H | WASHER | 1.10 |
21 | 10RDL | MAIN SHAFT COLLAR | 3.85 |
22 | 108WQ | O-RING | 1.65 |
23 | 10R8W | ROTOR NUT | 6.05 |
24 | 10DND | FIXING BOLT | 1.65 |
25 | 10S28 | ROTOR FLANGE | 9.35 |
26 | 10102 | ROTOR | 78.65 |
27 | 1001R | BALANCER GUARD | 11.55 |
28 | 10MPF | FIXING BOLT | 1.10 |
29 | 10S27 | ARM CAM SPRING COVER | 11.55 |
30 | 10RP9 | FIXING BOLT | 1.65 |
31 | 10024 | CLICK SPRING | 1.65 |
32 | 106ZC | CLICK PIN | 1.65 |
33 | 1013A | ARM CAM | 7.15 |
35 | 10027 | FIXING BOLT | 6.05 |
36 | 10K40 | FIXING BOLT | 2.75 |
37 | 1020L | LINE ROLLER BEARING COLLAR | 2.75 |
38 | 101KE | LINE ROLLER (WITH BEARING) ASSEMBLY | 34.10 |
39 | 10S6Q | BAIL ASSEMBLY | 45.10 |
40 | 1002S | ARM FIXING SHAFT WASHER | 1.10 |
41 | 10TPC | ARM FIXING SHAFT | 6.05 |
42 | 1002L | BAIL TRIP LEVER | 2.75 |
43 | 10S24 | BAIL TRIP LEVER COVER | 1.65 |
44 | 10TDX | BAIL SPRING SEAT | 1.65 |
45 | 10DKC | ARM SPRING GUIDE (A) COLLAR BUSH | 1.65 |
46 | 10DJN | ARM SPRING GUIDE (A) | 3.85 |
47 | 101D9 | ARM SPRING GUIDE (A) COLLAR | 1.65 |
48 | 105R7 | ARM CAM SPRING | 1.65 |
49 | 10R2E | ARM CAM SPRING GUIDE (B) | 2.75 |
50 | 101D0 | BAIL MOUNTING CAM COLLAR | 1.65 |
52 | 10S2M | FIXING BOLT | 6.05 |
53 | 10S29 | BAIL MOUNTING COVER | 17.05 |
54 | 101D5 | ROTOR COLLAR | 9.35 |
55 | 10DK7 | FRICTION RING | 3.85 |
56 | 101LH | FIXING BOLT | 1.10 |
57 | 10S2L | ROLLER CLUTCH ASSEMBLY | 12.65 |
58 | 10DKD | ROLLER CLUTCH GUIDE SEAL | 1.65 |
59 | 10DJY | ROLLER CLUTCH INNER | 3.85 |
60 | 10TGX | FIXING BOLT | 1.10 |
61 | 10DJZ | BEARING PUSH PLATE | 2.75 |
62 | 10R77 | BALL BEARING (7 X 13 X 4) | 7.15 |
63 | 10RYR | WASHER | 1.10 |
65 | 10DJ1 | WASHER | 1.65 |
66 | 10HV4 | ADJUSTMENT WASHER | 1.10 |
67 | 10RKR | BALL BEARING (5 X 8 X 2.5) | 7.15 |
68 | 10100 | BODY | 22.55 |
69 | 10DKA | LID FLANGE SEAL | 2.75 |
70 | 10GD4 | WASHER | 1.10 |
71 | 10LV2 | FIXING BOLT | 1.10 |
72 | 10M2Z | FIXING BOLT | 1.10 |
73 | 10E5Q | INTERMEDIATE GEAR SHAFT | 3.85 |
74 | 10E60 | SLIDER GUIDE (A) | 1.65 |
75 | 108WH | O-RING | 1.65 |
76 | 10RSE | HANDLE SCREW CAP | 3.85 |
77 | 1017N | FIXING BOLT | 1.10 |
78 | 10S2A | WORM SHAFT | 11.55 |
79 | 1009C | WORM SHAFT BUSHING | 1.65 |
80 | 100XZ | WASHER | 2.20 |
81 | 10TK0 | WASHER | 1.65 |
82 | 10ATC | WORM SHAFT COVER | 1.65 |
83 | 10QG5 | FIXING BOLT | 1.10 |
84 | 10RRJ | MAIN SHAFT ASSEMBLY | 30.80 |
85 | 106VL | WORM SHAFT PIN | 4.95 |
86 | 100CW | WASHER | 2.20 |
87 | 108W9 | O-RING (3 X 5) | 1.65 |
88 | 101BY | WORM SHAFT PIN COLLAR | 2.75 |
89 | 10HAG | WORM SHAFT PIN PUSH PLATE | 1.65 |
90 | 1055G | FIXING BOLT | 1.65 |
91 | 10DK0 | WORM SHAFT GEAR | 9.35 |
92 | 106M8 | WORM SHAFT BUSH (FRONT) | 2.75 |
94 | 10DHM | WASHER | 1.10 |
95 | 10TJT | WASHER | 1.65 |
96 | 10021 | INTERMEDIATE GEAR (S) | 8.25 |
98 | 104JD | BALL BEARING (7 X 13 X 4) | 13.75 |
99 | 101AY | WASHER | 2.20 |
101 | 10GA7 | WASHER | 1.10 |
102 | 10DJK | BAIL TRIP STRIKE | 1.65 |
103 | 10LZP | FIXING BOLT | 1.10 |
104 | 100ZP | BODY GUARD | 11.55 |
105 | 10106 | BODY COVER | 9.35 |
106 | 100KT | FIXING BOLT | 1.10 |
108 | 10PXU | HANDLE SHAFT SEAL | 2.75 |
109 | 10DZE | HANDLE SHAFT FLANGE (B) | 6.05 |
110 | 10FMF | HANDLE WASHER | 1.65 |
113 | 104VX | BALL BEARING (4 X 7 X 2.5) | 13.75 |
114 | 10327 | HANDLE KNOB | 11.55 |
115 | 104FH | WASHER | 2.20 |
116 | 103E9 | FIXING BOLT | 1.10 |
117 | 10TNJ | HANDLE CAP | 3.85 |
122 | 10B87 | STOPPER SPRING | 1.65 |
123 | 10DNN | SPOOL PIN SPRING | 1.65 |
124 | 10TNV | SPOOL PIN | 1.65 |
125 | 10TRB | FIXING BOLT | 1.65 |
131 | 13CJ1 | SPOOL ASSEMBLY | 90.20 |
132 | 10105 | PINION GEAR | 20.35 |
133 | 1002D | INTERMEDIATE GEAR (L) | 9.35 |
134 | 13LGE | DRIVE GEAR | 28.05 |
135 | 13DWU | COVER ASSEMBLY | 67.65 |
136 | 13ESG | HANDLE ASSEMBLY | 78.65 |
137 | 1007N | HANDLE SHANK ASSEMBLY | 45.10 |
BNKI | 13R57 | EXPLODED VIEW (ACCESSORIES) | 1.65 |
ITOS | 13QPZ | STOPPER SEAL | 1.65 |
MH01 | 13NPS | NAMEPLATE ON THE BACK OF THE FOOT | 2.75 |
TRST | 13PMG | INSTRUCTION MANUAL (ACCESSORY) | 1.65 |
