[SHIMANO] Genuine Spare Parts for 21 TWIN POWER XD 4000PG Product Code: 043405 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.77 - US$86.63 [Regular Price: US$1.10 - US$123.75]
Prices vary according to options.
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.
- Genuine Spool Purchase
* If you just want the genuine spool (No191 / Spool Unit), you can purchase
it from the following link without waiting for weeks if it's in our stock
now.
https://www.hedgehog-studio.co.jp/product/4998

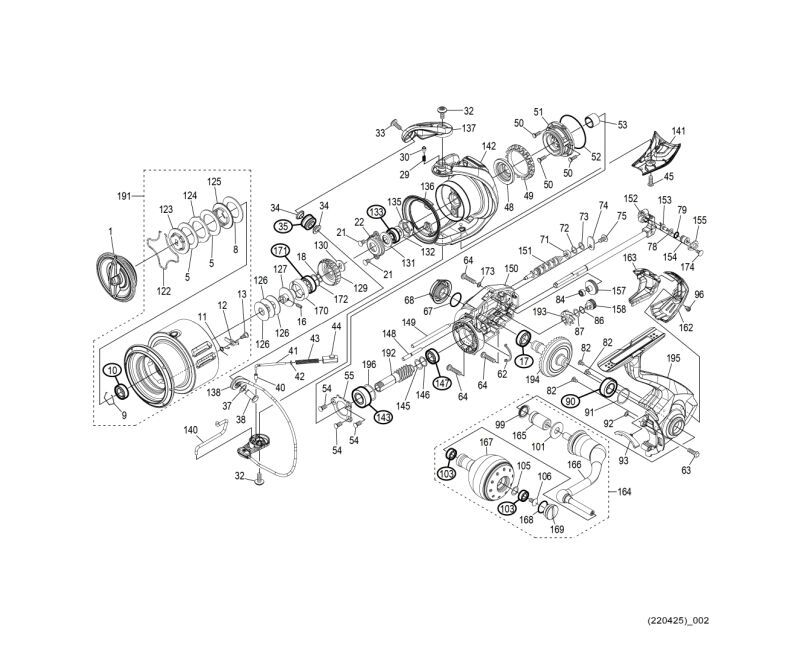

Reel Part's Schematic Diagram |
* Circled figures indicate bearings.
* Please note disassembly is at your own risk.
No. | S Part No. | Description | Price (USD) |
*F01 | 13B3S | REEL BAG (ACCESSORY) | 13.75 |
1 | 10E8C | DRAG KNOB ASSEMBLY | 28.05 |
5 | 10E66 | DRAG WASHER (A) | 6.05 |
8 | 10E6E | DRAG WASHER (B) | 6.05 |
9 | 10GEW | BEARING PULL-OFF STOPPER | 1.10 |
10 | 104JT | BALL BEARING (6×10×3) | 13.75 |
11 | 10BQE | SPOOL PIN SPRING | 1.65 |
12 | 10TJX | SPOOL PIN | 1.65 |
13 | 10A6F | FIXING BOLT | 1.65 |
16 | 10PN2 | SET SCREW | 1.65 |
17 | 104PP | BALL BEARING (7×11×3) | 13.75 |
18 | 107V2 | RATCHET SPRING | 1.65 |
21 | 10T1G | RETAINER FIXING BOLT | 1.10 |
22 | 1076N | RETAINER | 2.75 |
29 | 10CGZ | CLICK SPRING | 1.65 |
30 | 106UX | CLICK PIN | 1.65 |
32 | 10SN9 | RETAINING BOLT | 1.65 |
33 | 10TLJ | FIXING BOLT | 2.75 |
34 | 1020L | LINE ROLLER BEARING COLLAR | 2.75 |
35 | 101KE | LINE ROLLER (WITH BEARING) ASSEMBLY | 34.10 |
37 | 1002S | ARM FIXING SHAFT WASHER | 1.10 |
38 | 10TPC | ARM FIXING SHAFT | 6.05 |
40 | 10DKC | ARM SPRING GUIDE (A) COLLAR BUSH | 1.65 |
41 | 10SAN | ARM SPRING GUIDE (A) | 3.85 |
42 | 101D9 | ARM SPRING GUIDE (A) COLLAR | 1.65 |
43 | 10R2P | ARM CAM SPRING | 1.65 |
44 | 10R2E | ARM CAM SPRING GUIDE (B) | 2.75 |
45 | 10DT7 | FIXING BOLT | 1.65 |
48 | 101D5 | ROTOR COLLAR | 9.35 |
49 | 10DK7 | FRICTION RING | 3.85 |
50 | 101LH | FIXING BOLT | 1.10 |
51 | 10S2L | ROLLER CLUTCH ASSEMBLY | 12.65 |
52 | 10DKD | ROLLER CLUTCH GUIDE SEAL | 1.65 |
53 | 10DJY | ROLLER CLUTCH INNER | 3.85 |
54 | 10TGX | FIXING BOLT | 1.10 |
55 | 10DJZ | BEARING PUSH PLATE | 2.75 |
62 | 10DKA | COVER FLANGE SEAL | 2.75 |
63 | 10M2A | FIXING BOLT | 1.10 |
64 | 100YN | FIXING BOLT | 1.65 |
67 | 108WH | O-RING | 1.65 |
68 | 10RSK | HANDLE SCREW CAP | 3.85 |
71 | 1009C | WORM SHAFT BUSHING | 1.65 |
72 | 100XZ | WASHER | 2.20 |
73 | 10TK0 | WASHER | 1.65 |
74 | 10ATC | WORM SHAFT COVER | 1.65 |
75 | 10QG5 | FIXING BOLT | 1.10 |
78 | 100CW | WASHER | 2.20 |
79 | 108W9 | O-RING (3X5) | 1.65 |
82 | 1055G | FIXING BOLT | 1.65 |
84 | 106M8 | WORM SHAFT BUSH (FRONT) | 2.75 |
86 | 10TJT | WASHER | 1.65 |
87 | 10G6C | WASHER | 1.10 |
90 | 104JD | BALL BEARING (7X13X4) | 13.75 |
91 | 101AY | WASHER | 2.20 |
92 | 10GA7 | WASHER | 1.10 |
93 | 10DJK | INNER GERI HITARI | 1.65 |
96 | 10EF0 | FIXING BOLT | 1.65 |
99 | 10PXU | HANDLE SHAFT SEAL | 2.75 |
101 | 10FJ6 | HANDLE WASHER | 1.65 |
103 | 104VX | BALL BEARING (4×7×2.5) | 13.75 |
105 | 104FH | BALL BEARING WASHER (4×7×2.5) | 2.20 |
106 | 103E9 | FIXING BOLT | 1.10 |
122 | 1006X | STOPPER SPRING | 1.65 |
123 | 10QBY | OVAL WASHER | 9.35 |
124 | 10BCP | DRAG EAR WASHERS | 6.05 |
125 | 10B9D | DRAG OVAL WASHER | 2.75 |
126 | 101AV | SPOOL WASHER (A) | 2.20 |
127 | 10LTS | SPOOL SHAFT BEARING GUIDE | 6.05 |
129 | 107PS | DRAG SOUNDING SILRATCHET | 2.75 |
130 | 103NX | SPOOL BEARING KE | 1.65 |
131 | 107F2 | ROTATING FRAME BEARING SEAL | 2.75 |
132 | 101M1 | BEARING WASHER (A) | 1.10 |
133 | 103B3 | ROTOR BEARING COLLAR ASSEMBLY (WITH BEARING) | 17.05 |
135 | 1080X | ROTOR NUT | 9.35 |
136 | 10DTJ | ROTOR FLANGE | 6.05 |
137 | 10SC5 | ARM CAM | 6.05 |
138 | 10QY4 | BAIL ASSEMBLY | 45.10 |
140 | 10E0C | INTERNAL GERI LEVER | 2.75 |
141 | 10DTR | BALE MOUNTING COVER | 9.35 |
142 | 10R43 | ROTOR ASSEMBLY | 45.10 |
143 | 101WE | BALL BEARING (7 X 14 X 5) | 7.15 |
145 | 10053 | WASHER | 1.65 |
146 | 10GD8 | WASHER | 1.10 |
147 | 104JQ | BALL BEARING (6×10×3) | 7.15 |
148 | 10DYJ | INTERMEDIATE GEAR SHAFT | 3.85 |
149 | 1006F | SLIDE GUIDE (A) | 3.85 |
150 | 10SC6 | BODY | 22.55 |
151 | 1006E | WORM SHAFT | 11.55 |
152 | 10RJK | MAIN SHAFT ASSEMBLY | 30.80 |
153 | 106VM | WORM SHAFT PIN | 4.95 |
154 | 1005H | WORM SHAFT PIN COLLAR | 2.75 |
155 | 10HAH | WORM SHAFT PIN PUSH PLATE | 1.65 |
157 | 10074 | WORM SHAFT GEAR | 9.35 |
158 | 10SM7 | INTERMEDIATE GEAR (S) | 8.25 |
162 | 10132 | BODY GUARD | 11.55 |
163 | 10SN2 | BODY COVER | 6.05 |
164 | 10DSE | HANDLE ASSEMBLY | 101.20 |
165 | 10E08 | HANDLE SHAFT FLANGE (B) | 6.05 |
166 | 10QY6 | HANDLE SHANK ASSEMBLY | 45.10 |
167 | 10QY5 | HANDLE KNOB ASSEMBLY | 45.10 |
168 | 10LAB | O-RING | 1.10 |
169 | 10B2B | HANDLE CAP | 6.05 |
170 | 10TQH | BEARING COLLAR | 2.75 |
171 | 10EX8 | BALL BEARING (8 X 12 X 3.5) | 13.75 |
172 | 10GHN | WASHER | 1.65 |
173 | 10J48 | WASHER | 1.10 |
174 | 10MT4 | FIXING BOLT | 1.10 |
191 | 10S1W | SPOOL ASSEMBLY | 123.75 |
192 | 10RHD | PINION GEAR | 20.35 |
193 | 10S53 | INTERMEDIATE GEAR (LARGE) | 9.35 |
194 | 10RG8 | DRIVE GEAR | 28.05 |
195 | 10R61 | COVER ASSEMBLY | 67.65 |
196 | 107JT | FRONT FLANGE BEARING ADJUSTMENT WASHER | 1.10 |
BNKI | 13QZ8 | EXPLODED VIEW (ACCESSORIES) | 1.65 |
ITOS | 13QPZ | THREAD STOPPER SEAL | 1.65 |
LRKM | 13D1P | LINE ROLLER ASSEMBLY | 19.25 |
MH01 | 13N73 | NAMEPLATE ON THE BACK OF THE FOOT | 2.75 |
TRST | 13PMG | INSTRUCTION MANUAL (ACCESSORY) | 1.65 |
