[SHIMANO] Genuine Spare Parts for 15 TWIN POWER C2000HGS Product Code: 033659 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 15 TWIN POWER C2000HGS Product Code: 033659 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 - US$55.44 [Regular Price: US$1.10 - US$92.40]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

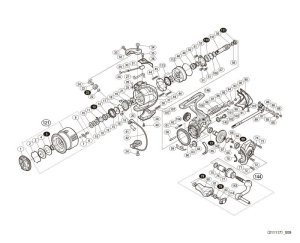

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10GZY DRAG KNOB ASSEMBLY 17.05
2 10B8J STOPPER SPRING 1.65
3 10B9X OVAL WASHER 3.85
4 102ZF DRAG WASHER 1.65
5 104JT BALL BEARING (6 X 10 X 3) 13.75
6 10388 SPOOL PIN 1.65
7 10BQE SPOOL PIN SPRING 1.65
8 10A6F FIXING BOLT 1.65
10 10BU7 SPOOL WASHER SET 1.10
11 10PN2 SET SCREW 1.65
12 10LTR SPOOL SHAFT BEARING GUIDE 6.05
13 104PP BALL BEARING (7 X 11 X 3) 13.75
14 102VD WASHER 1.10
15 107V0 DRAG CLICK RATCHET 2.75
16 103PC SPOOL RECEIVER 1.65
17 107V3 RATCHET SPRING 1.65
18 10PMD FIXING BOLT 1.10
19 1076P RETAINER 2.75
20 107L3 ROTOR BEARING SEAL 2.75
21 1067W ROTOR NUT 9.35
22 10GAR LINE ROLLER BEARING COLLAR 2.75
23 10N6E LINE ROLLER (WITH BEARING) 22.55
24 10HWT LINE ROLLER RECEIVER 1.65
25 10CH0 BAIL TRIP LEVER CLICK SPRING 1.65
26 10CHA BAIL TRIP LEVER CLICK PIN 1.65
27 106KZ BAIL TRIP LEVER CLICK SPRING 2.75
28 105YZ ARM SPRING GUIDE (A) 3.85
29 1064R ARM SPRING GUIDE (A) COLLAR 1.65
30 105R7 ARM CAM SPRING 1.65
31 107AC ARM CAM SPRING SEAT 2.75
32 10KLV ARM CAM 6.05
33 10PS3 FIXING BOLT 1.10
34 10PS4 FIXING BOLT 1.10
35 10PS6 FIXING BOLT 1.10
36 108BZ ARM CAM SPRING COVER 6.05
37 10Q1V ROTOR 22.55
38 1055B FIXING BOLT 1.10
39 10MNN BALE MOUNTING BRACKET COVER 11.55
40 103N4 FIXING BOLT 1.10
41 10L01 ARM FIXING SHAFT 2.75
42 103AK BALE ASSEMBLY 34.10
44 10MTE FIXING BOLT 1.10
45 10L61 ROLLER CLUTCH COVER PLATE 1.65
48 10MLT O-RING 3.85
49 107S5 ROLLER CLUTCH INNER COLLAR 2.75
50 10H4G ROLLER CLUTCH INNER COLLAR 1.65
51 10ML6 FIXING BOLT 1.65
52 10593 BEARING PUSH PLATE 2.75
55 10CJV CROSS GEAR SHAFT COLLAR 2.75
56 10J6E PINION GEAR SPACER 1.65
58 10CL9 INTERMEDIATE GEAR SHAFT 3.85
59 107DZ INNER GEAR CONTACT 1.65
60 104FU FRICTION RING 3.85
61 10AYS BODY FLANGE SEAL 2.75
62 10LPQ FIXING BOLT 1.10
63 106M8 WORM SHAFT BUSH (FRONT) 2.75
64 10HET WORM SHAFT GEAR 6.05
65 10J3N FRICTION RING SPACER 2.75
67 10JDC ADJUSTMENT WASHER SET 1.10
68 1055G FIXING BOLT 1.65
69 104JD BALL BEARING (7 X 13 X 4) 13.75
70 10CBC FOOT FLANGE SEAL 2.75
71 104HS FOOT 39.60
72 10M2C FIXING BOLT 1.10
73 10LUY FIXING BOLT 1.10
74 10C2G COVER FIXING BOLT WASHER 2.75
75 10PXU HANDLE SHAFT SEAL 2.75
76 10PQH HANDLE SHAFT FLANGE (B) 8.25
77 10C4H HANDLE SHAFT FLANGE 14.85
79 104VX BALL BEARING (4 X 7 X 2.5) 13.75
80 10327 HANDLE KNOB 11.55
81 10G8G WASHER 1.10
82 103E9 FIXING BOLT 1.10
85 10HAG WORM SHAFT PIN PUSH PLATE 1.65
86 10JXU WORM SHAFT PIN COLLAR 2.75
87 10RKQ WASHER 2.20
88 106VK WORM SHAFT PIN 4.95
89 102J4 MAIN SHAFT ASSEMBLY 28.05
90 10NL3 BODY GUARD 11.55
91 10PRY FIXING BOLT 1.10
92 107HH BODY COVER 1.65
93 10AYN BODY GUARD COLLAR 2.75
94 103LG FIXING BOLT 1.10
95 10ATA WORM SHAFT COVER 1.65
96 106CM CROSS GEAR BUSH (FRONT) 1.65
97 10J7K WASHER 1.10
98 1068D WORM SHAFT 11.55
99 10JAB O-RING 1.65
100 1035R SLIDER GUIDE (A) 2.75
101 104ME SLIDER GUIDE (B) 2.75
102 106VS INTERMEDIATE GEAR (S) 8.25
103 1059T WASHER 1.10
106 10N16 HANDLE SCREW CAP 11.55
107 10HVD WASHER 1.10
108 10HV8 WASHER 1.10
110 104JC BALL BEARING (7 X 13 X 4) 13.75
111 104JY BALL BEARING (5 X 8 X 2.5) 13.75
112 10DG6 ROLLER CLUTCH ASSEMBLY 12.65
113 13EQL ROLLER CLUTCH SEAL ASSEMBLY 11.55
114 10FMJ HANDLE CAP 2.75
121 1089M SPOOL ASSEMBLY 92.40
141 13L9H PINION GEAR 12.65
142 13CYJ DRIVE GEAR ASSEMBLY 28.05
143 13E0G HANDLE 39.60
144 13EM4 HANDLE ASSEMBLY 78.65
145 13MMY INTERMEDIATE GEAR (L) 9.35
146 13D9S BODY 67.65
*F01 13QN1 REEL BAG 3.85
BNKI 13R0J EXPLODED VIEW (ACCESSORIES) 1.65
ITOS 13QPZ STOPPER SEAL 1.65
MH01 13NEQ NAMEPLATE ON THE BACK OF THE FOOT 2.75
TRST 13PMG INSTRUCTION MANUAL (ACCESSORY) 1.65
