[SHIMANO] Genuine Spare Parts for 16 ALDEBARAN BFS R Product code: 037879 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.91 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/2920

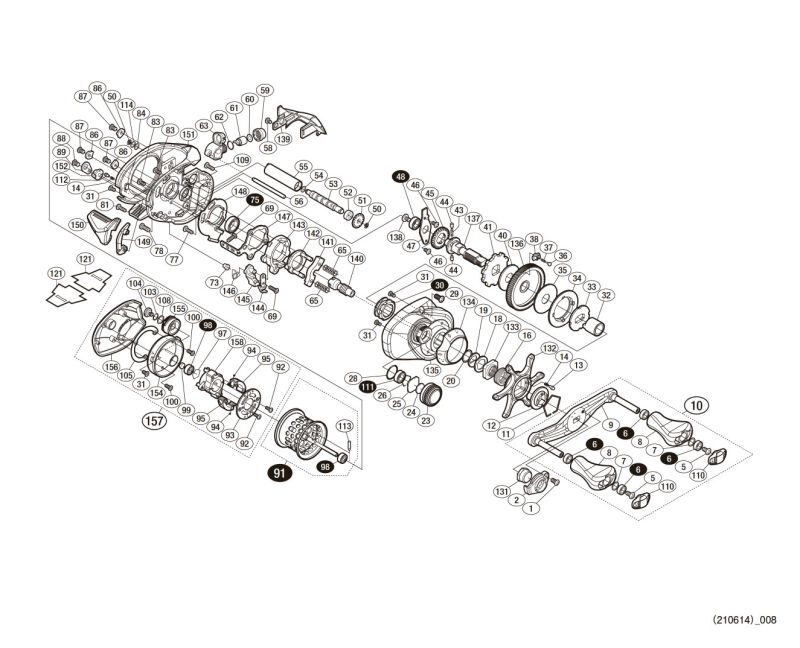

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "30 / ROLLER CLUTCH BEARING" and "113 / SPOOL CLUTCH PIN" and "98 / BALL BEARING", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	10R1Q	FIXING BOLT	1.65
2	10Q5S	RETAINER	2.75
5	103E9	FIXING BOLT	1.10
6	104VX	BALL BEARING (4 X 7 X 2.5)	13.75
7	104FH	WASHER	2.20
8	10327	HANDLE KNOB	11.55
9	13HUT	HANDLE	34.10
10	13AWH	HANDLE ASSEMBLY	112.20
11	10KXV	STAR DRAG CLICK PLATE RETAINER	1.65
12	10J1Z	STAR DRAG CLICK PLATE	1.65
13	10BT0	CLICK PIN	1.65
14	10988	CLICK SPRING	1.65
16	10A78	STAR DRAG SPRING	2.75
18	10J1N	STAR DRAG SPACER	1.65
19	10D60	MAIN GEAR WASHER (C)	1.65
20	10GHN	WASHER	1.65
23	13B6M	MECHANICAL BRAKE KNOB	11.55
24	10896	MECHANICAL BRAKE WASHER	1.10
25	1085F	MECHANICAL BRAKE WASHER	1.10
26	1057X	STOPPER	1.65
28	10LA9	O-RING	1.65
29	10LZD	FIXING BOLT	1.65
30	10F35	ROLLER CLUTCH BEARING *Cannot be ordered	17.05
31	1055J	FIXING BOLT	1.65
32	10BN7	INNER TUBE A-RB	6.05
33	10D55	STAR DRAG PLATE	6.05
34	10JB0	DRAG CLICK RATCHET	2.75
35	10CKS	STAR DRAG WASHER	6.05
36	10C0T	DRAG CLICK PIN	2.75
37	10J8A	DRAG SPRING HOLDER	1.65
38	10J87	DRAG SPRING HOLDER	1.65
40	10CJC	STAR DRAG WASHER (A)	2.75
41	10D72	STOPPER GEAR	3.85
43	10JDX	WORM SHAFT GEAR SPRING	1.65
44	10HJG	PIN FOR WORM SHAFT GEAR	1.65
45	10J6W	WORM SHAFT GEAR	3.85
46	10MT2	FIXING BOLT	1.10
47	109SZ	DRIVE GEAR SHAFT FIXING PLATE	2.75
48	105BV	BALL BEARING (5 X 9 X 3)	13.75
50	105NC	E TYPE RETAINING RING 2	1.10
51	10FNX	WORM SHAFT GEAR	2.75
52	10PXY	HANDLE GRIPPED BUSH (B)	1.65
53	104ZG	WORM SHAFT	9.35
54	10GHF	WASHER	1.10
55	10NFW	LEVEL WINDING PIPE	1.65
56	10QSG	LEVEL WINDING GUIDE	3.85
58	10DND	FIXING BOLT	1.65
59	10FJB	LEVEL WINDING GUIDE	1.65
60	10CFW	ADJUSTMENT WASHER SET	1.10
61	10FFU	WORM SHAFT PIN	1.65
62	108WQ	O-RING	1.65
63	10NYH	LEVEL WINDING ASSEMBLY	22.55
65	104BJ	CLUTCH YOKE SPRING	1.10
69	10PVS	FIXING BOLT	1.65
73	10C44	CLUTCH SPRING HOLDER	1.65
75	10EX8	BALL BEARING (8 X 12 X 3.5)	13.75
77	1055A	FIXING BOLT	1.65
78	103DF	FIXING BOLT	1.10
81	1055C	FIXING BOLT	1.65
83	10LVH	CLUTCH CAM FIXING BOLT	1.10
84	10GN1	CLUTCH CAM FIXING BOLT	1.10
86	108AT	MAIN FRAME B FIXING PLATE	9.35
87	103H0	FIXING BOLT	1.65
88	10DN7	FIXING BOLT	1.65
89	10BGQ	BODY B CAM LEVER PUSH PLATE	1.65
91	13GNL	SPOOL ASSEMBLY (WITH BEARING)	134.75
92	10TNZ	FIXING BOLT	1.65
93	13B5H	BRAKE FIXING PLATE	3.85
94	10TM9	BRAKE COIL SPRING	1.65
95	10DPG	MAGNET HOLDER ASSEMBLY	11.55
97	10GEV	BEARING STOPPER	1.10
98	10KDE	BALL BEARING (3 X 7 X 3) *Cannot be ordered	13.75
99	1085H	MECHANICAL BRAKE WASHER	1.10
100	10559	FIXING BOLT	1.65
103	108WS	O-RING 4 X 6	1.10
104	10A6K	FIXING BOLT	6.05
105	108AZ	ADJUSTMENT WASHER FOR FRAME B	1.65
108	13B0V	MECHANICAL BRAKE WASHER	1.10
109	10LPJ	FIXING BOLT	1.65
110	10TNJ	HANDLE CAP	3.85
111	105BP	BALL BEARING (5 X 9 X 3)	13.75
112	10B27	CLICK PIN	1.65
113	10MCZ	SPOOL CLUTCH PIN *Cannot be ordered	2.75
114	10GA0	WASHER	1.10
121	10PBQ	LEG PROTECTION SHEET	1.65
131	10TPF	HANDLE FIXING NUT	6.05
132	13B7G	STAR DRAG	20.35
133	10A0B	STAR DRAG FIXING NUT	2.75
134	10TMN	BODY A NAMEPLATE	3.85
135	13TRC	BODY A	45.10
136	13URP	DRIVE GEAR	22.55
137	105CE	DRIVE GEAR SHAFT	22.55
138	10PVT	FIXING BOLT	1.65
139	13B5Q	LEVEL WINDING GUARD	9.35
140	13SN2	PINION GEAR	17.05
141	1046Z	CLUTCH YOKE	1.65
142	10F3Z	CLUTCH CAM PUSH PLATE	8.25
143	10K0X	CLUTCH CAM	2.75
144	10458	CLUTCH CLAW	1.65
145	105ZP	CLUTCH CLAW	2.75
146	104CL	CLUTCH CLAW SPRING	1.65
147	10QLF	CLUTCH PLATE	4.95
148	10BVU	BODY A SEAT	3.85
149	10973	CLUTCH BAR GUIDE	1.65
150	10TQT	CLUTCH BAR	9.35
151	13FXP	FRAME	123.75
152	10BAU	BODY B CAM LEVER	2.75
154	13B53	FRAME B GUIDE	17.05
155	10199	BR KNOB	2.75
156	13B49	BODY B	39.60
157	13FLC	BODY B ASSEMBLY	89.10
158	13SVC	BRAKE MOUNTING BASE	2.75
BNKI	13WTY	EXPLODED VIEW (ACCESSORIES)	1.65
MGNT	13B5D	MAGNET	2.75
OIL1	10LQ0	B-100 OIL (4.5G)	3.85
OIL3	10TR6	BFS OIL	3.85
TRST	13B7X	INSTRUCTION MANUAL (ACCESSORY)	1.65
