[SHIMANO] Genuine Spare Parts for 15 ALDEBARAN 51 Product code: 033857 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 15 ALDEBARAN 51 Product code: 033857 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 - US$86.63 [Regular Price: US$1.10 - US$123.75]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

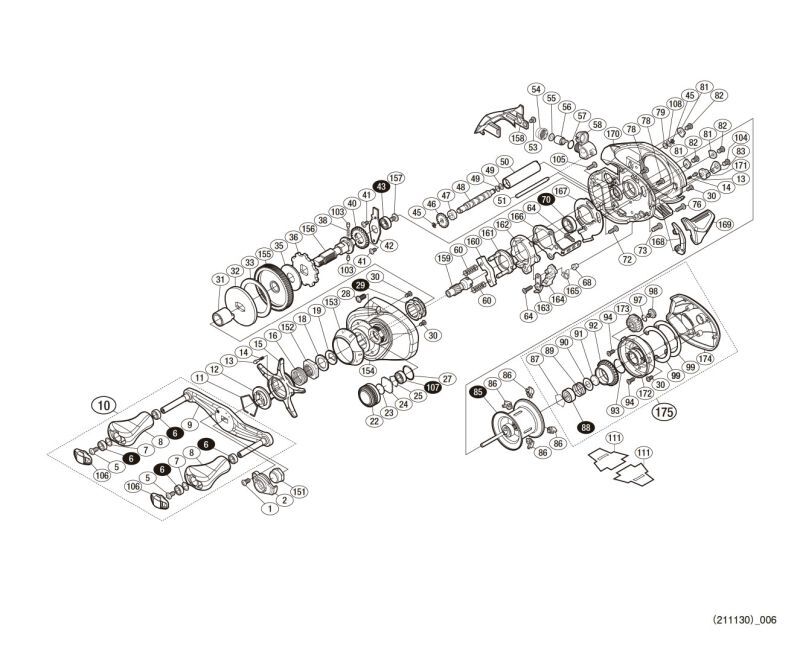

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 103EE FIXING BOLT 2.75
2 10Q5S RETAINER 2.75
5 103E9 FIXING BOLT 1.10
6 104VX BALL BEARING (4 X 7 X 2.5) 13.75
7 104FH WASHER 2.20
8 10327 HANDLE KNOB 11.55
9 10A6A HANDLE 34.10
10 10BLW HANDLE ASSEMBLY 112.20
11 10KXV STAR DRAG CLICK PLATE RETAINER 1.65
12 10J1Z STAR DRAG CLICK PLATE 1.65
13 10BT0 CLICK PIN 1.65
14 10988 CLICK SPRING 1.65
15 10AU3 STAR DRAG 20.35
16 10A78 STAR DRAG SPRING 2.75
18 10J1N STAR DRAG SPACER 1.65
19 10D60 MAIN GEAR WASHER (C) 1.65
22 10KDQ MECHANICAL BRAKE KNOB 11.55
23 10896 MECHANICAL BRAKE WASHER 1.10
24 1085F MECHANICAL BRAKE WASHER 1.10
25 1057X EXTRACTION STOPPER 1.65
27 10LA9 O-RING 1.65
28 10LZD FIXING BOLT 1.65
29 10F35 ROLLER CLUTCH BEARING 17.05
30 1055J FIXING BOLT 1.65
31 10BN7 INNER TUBE A-RB 6.05
32 10D3U STAR DRAG PLATE 6.05
33 1071R STAR DRAG WASHER 9.35
35 10D32 STAR DRAG WASHER 9.35
36 10D72 STOPPER GEAR 3.85
38 10JDX SPRING FOR WORM SHAFT GEAR 1.65
40 10J6W WORM SHAFT GEAR 3.85
41 10MT2 FIXING BOLT 1.10
42 109SZ DRIVE GEAR SHAFT FIXING PLATE 2.75
43 105BV BALL BEARING (5 X 9 X 3) 13.75
45 105NC E TYPE RETAINING RING 2 1.10
46 10FNX WORM SHAFT GEAR 2.75
47 10PXY HANDLE GRIPPED BUSH (B) 1.65
48 104ZG WORM SHAFT 9.35
49 10GFJ WASHER 1.10
50 10NFW LEVEL WINDING PIPE 1.65
51 10QSG LEVEL WINDING GUIDE 3.85
53 10MPF FIXING BOLT 1.10
54 10FJB LEVEL WINDING GUIDE 1.65
55 10CFW ADJUSTMENT WASHER SET 1.10
56 10FFU WORM SHAFT PIN 1.65
57 108WQ O-RING 1.65
58 10NYH LEVEL WINDING ASSEMBLY 22.55
60 104BJ CLUTCH YOKE SPRING 1.10
64 10PVS FIXING BOLT 1.65
68 10C44 CLUTCH SPRING HOLDER 1.65
70 10EX8 BALL BEARING (8 X 12 X 3.5) 13.75
72 1055A FIXING BOLT 1.65
73 103DF FIXING BOLT 1.10
76 1055C FIXING BOLT 1.65
78 10LVH CLUTCH CAM FIXING BOLT 1.10
79 10GN1 CLUTCH CAM FIXING BOLT 1.10
81 108AT MAIN FRAME B FIXING PLATE 9.35
82 103H0 FIXING BOLT 1.65
83 10BGQ BODY B CAM LEVER PUSH PLATE 1.65
85 10L3Q SPOOL ASSEMBLY (WITH BEARING) 112.20
86 1046L BRAKE SHOE S (CLEAR) 1.10
87 10GEW BEARING STOPPER 1.10
88 105C0 BALL BEARING (3 X 10 X 4) 13.75
89 10F1N BEARING PUSH SPRING 1.65
90 10GHQ BEARING WASHER 1.10
91 1057S SPOOL SHAFT CONTACT (B) 1.10
92 10EXT BRAKE PIPE GEAR 17.05
93 10LA8 O-RING 1.65
94 10559 FIXING BOLT 1.65
97 108WS O-RING 4 X 6 1.10
98 10A6K FIXING BOLT 6.05
99 108AZ ADJUSTMENT WASHER FOR B GUIDE 1.65
103 10HJG WORM SHAFT GEAR PIN 1.65
104 10DN7 FIXING BOLT 1.65
105 10LPJ FIXING BOLT 1.65
106 10FMJ HANDLE CAP 2.75
107 105BP BALL BEARING (5 X 9 X 3) 13.75
108 10QW8 WASHER 1.10
111 10PBQ LEG PROTECTION SHEET 1.65
151 10FFG HANDLE FIXING NUT 6.05
152 10A0C STAR DRAG FIXING NUT 2.75
153 10K09 BODY A NAMEPLATE 3.85
154 10GNZ BODY A 45.10
155 10CNV DRIVE GEAR 22.55
156 105CF DRIVE GEAR SHAFT 22.55
157 10PVU FIXING BOLT 1.65
158 10FWH LEVEL WINDING GUARD 9.35
159 10CS8 PINION GEAR 17.05
160 10470 CLUTCH YOKE 1.65
161 10F40 CLUTCH CAM PUSH PLATE 8.25
162 10K0Y CLUTCH CAM 2.75
163 10459 CLUTCH CLAW 1.65
164 105ZQ CLUTCH CLAW 2.75
165 104CM CLUTCH CLAW SPRING 1.65
166 10QLG CLUTCH PLATE 4.95
167 10BVV BODY A SEAT 3.85
168 10974 CLUTCH BAR GUIDE 1.65
169 10MWL CLUTCH BAR 9.35
170 10EY1 FRAME 123.75
171 10BAV BODY B CAM LEVER 2.75
172 10FXL FRAME B GUIDE ASSEMBLY 22.55
173 10B1W BR KNOB 2.75
174 10D12 BODY B 39.60
175 10RAE BODY B ASSEMBLY 89.10
BNKI 13WKG EXPLODED VIEW (ACCESSORIES) 1.65
OIL1 10LQ0 B-100 OIL (4.5G) 3.85
TRST 13VHW INSTRUCTION MANUAL (ACCESSORY) 1.65
W001 1059U WASHER 1.10
W002 105A2 WASHER 1.10
