[SHIMANO] Genuine Spare Parts for 14 CHRONARCH CI4+ 150 Product code: 033314 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

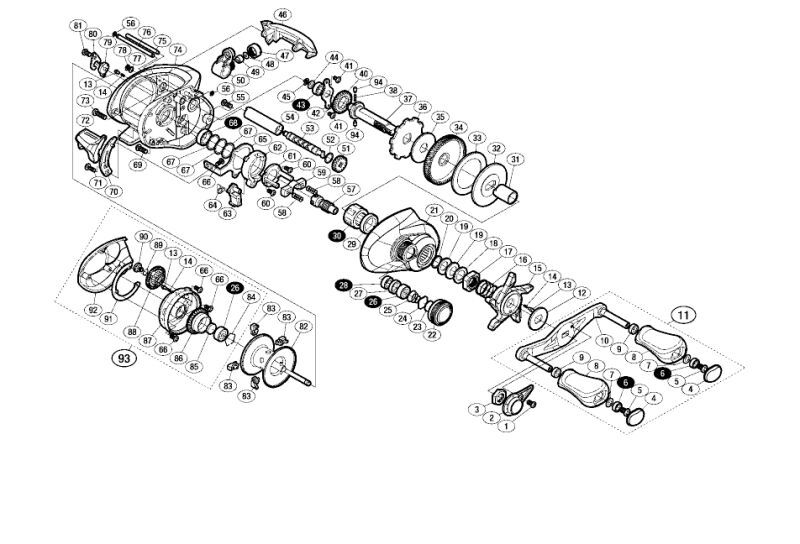

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "30 / ROLLER CLUTCH", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	103EE	FIXING BOLT	2.75
2	10Q5N	RETAINER	6.05
3	10FSM	HANDLE FIXING NUT	2.75
4	10AVV	HANDLE CAP	1.65
5	103E9	FIXING BOLT	1.10
6	104VX	BALL BEARING (4 X 7 X 2.5)	13.75
7	104FH	WASHER	2.20
8	10329	HANDLE KNOB	11.55
9	10PXY	HANDLE GRIPPED BUSH (B)	1.65
10	10A65	HANDLE	28.05
11	10CET	HANDLE ASSEMBLY	67.65
12	10J22	STAR DRAG CLICK PLATE	1.65
13	10B27	CLICK PIN	1.65
14	10988	CLICK SPRING	1.65
15	10D6F	STAR DRAG	11.55
16	10A70	STAR DRAG SPRING	2.75
17	10A0T	STAR DRAG FIXING NUT	2.75
18	10J1N	STAR DRAG SPACER	1.65
19	10EW3	SALA SPRING (DB8L)	1.65
20	105PW	STARDRAG BEARING WASHER	1.10
21	10GFK	MAIN UNIT A	45.10
22	10KDJ	MECHANICAL BRAKE KNOB	9.35
23	10896	MECHANICAL BRAKE WASHER	1.10
24	1085F	MECHANICAL BRAKE WASHER	1.10
25	10BR8	MECHANICAL BRAKE LOOSENING STOP SPRING	1.65
26	105C0	BALL BEARING (3 X 10 X 4)	13.75
27	10EYR	BEARING SPACER	2.75
28	105BN	BALL BEARING (5 X 9 X 3)	13.75
29	10L0D	DRIVE GEAR BEARING KEBUSH	2.75
30	10TM8	ROLLER CLUTCH *Cannot be ordered	17.05
31	10CCM	ROLLER CLUTCH INNER TUBE	6.05
32	10D3L	STAR DRAG PLATE	2.75
33	106XT	STAR DRAG WASHER	6.05
34	10CM7	DRIVE GEAR	22.55
35	10CHE	STAR DRAG WASHER	6.05
36	10D6Y	STOPPER GEAR	6.05
37	1058J	DRIVE GEAR SHAFT	22.55
38	10JDX	WORM SHAFT GEAR SPRING	1.65
40	10JAG	WORM SHAFT GEAR	2.75
41	10MT3	FIXING BOLT	1.10
42	109T0	MAIN GEAR SHAFT FIXING PLATE	2.75
43	105BP	BALL BEARING (5 X 9 X 3)	13.75
44	10C47	MAIN GEAR SHAFT WASHER	1.10
45	105NK	E TYPE STOP RING 2.5	1.10
46	10FWA	LEVEL WIND GUARD	9.35
47	10FJW	LEVEL WINDING RECEIVER	1.65
48	10CFW	ADJUSTMENT WASHER SET	1.10
49	10FFW	WORM SHAFT PIN	2.75
50	10NVN	LEVEL WINDING ASSEMBLY	11.55
51	10FNZ	WORM SHAFT GEAR	2.75
52	10G84	WASHER	1.10
53	104ZV	WORM SHAFT	6.05
54	10NJD	LEVEL-WIND PIPE	1.65
55	103DE	FIXING BOLT	1.10
56	105NB	E TYPE STOP RING 1.5	1.10
57	10CPT	PINION GEAR	13.75
58	104BU	CLUTCH YOKE SPRING	1.10
59	1046T	CLUTCH YOKE	1.65
60	103NH	FIXING BOLT	1.10
61	10F42	CLUTCH CAM PUSH PLATE	3.85
62	10KSB	CLUTCH CAM	2.75
63	105ZU	CLUTCH CLAW	3.85
64	10N1Z	CLUTCH CLAW SPRING	1.10
65	10QGF	CLUTCH PLATE	4.95
66	103C0	FIXING BOLT	1.10
67	10G8C	WASHER	1.10
68	10583	BALL BEARING (8 X 12 X 3.5)	13.75
69	103KP	FIXING BOLT	1.10
70	10970	CLUTCH BAR GUIDE (B)	3.85
71	10PVS	FIXING BOLT	1.65
72	10MWD	CLUTCH LEVER	9.35
73	10M2P	FIXING BOLT	1.10
74	10EVA	FRAME	67.65
75	10QSD	LEVEL-WIND ROD	1.65
76	10Q26	LINE GUARD (A)	2.75
77	10BHX	CROSS GEAR SHAFT WASHER (A)	1.10
78	105NC	TYPE E STOPWHEEL 2	1.10
79	10BAH	BODY B CAM LEVER	2.75
80	10BGP	CAM LEVER PUSH PLATE	1.65
81	103KS	FIXING BOLT	1.10
82	10L11	SPOOL ASSEMBLY	56.10
83	1046G	BRAKE SHOE (M) RED	1.10
84	10GEW	BEARING RETAINING CLIP	1.10
85	1057S	SPOOL SHAFT CONTACT (B)	1.10
86	10EXP	BRAKE PIPE GEAR	13.75
87	10F0L	FRAME B BEARING ASSEMBLY	17.05
88	10AZ9	BR KNOB GEAR	4.95
89	108WS	O-RING 4 X 6	1.10
90	10A6H	FIXING BOLT	6.05
91	108AY	B BEARING ADJUSTMENT WASHER	1.65
92	10D07	BODY B	39.60
93	13FHV	BODY B ASSEMBLY	78.65
94	10HJG	WORM SHAFT GEAR PIN	1.65
BNKI	13WKA	EXPLODED VIEW (ACCESSORIES)	1.65
OIL1	10LQ0	B-100 OIL (4.5G)	3.85
TRST	13VHR	INSTRUCTION MANUAL (ACCESSORY)	1.65
