[SHIMANO] Genuine Spare Parts for 23 SLX DC 71 XG Product code: 045652 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.85 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/5945

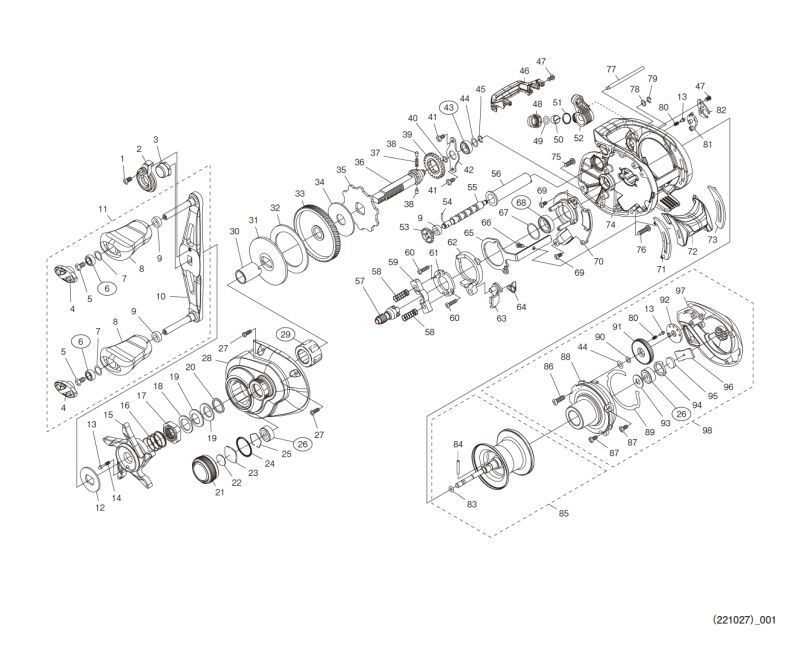

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "29 / ROLLER CLUTCH", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	10DV5	FIXING BOLT	1.10
2	1017T	RETAINER	3.85
3	10049	HANDLE FIXING NUT	6.05
4	1027R	HANDLE CAP	2.75
5	10LFA	FIXING BOLT	1.10
6	104VX	BALL BEARING (4 X 7 X 2.5)	13.75
7	104FH	WASHER	2.20
8	10DW6	HANDLE KNOB	11.55
9	10PXZ	HANDLE KNOB BUSH	1.65
10	13AWF	HANDLE SHAFT ASSEMBLY	22.55
11	143X3	HANDLE ASSEMBLY	67.65
12	10J22	STAR DRAG CLICK PLATE	1.65
13	10MFC	CLICK PIN	1.65
14	10BT2	CLICK SPRING	1.65
15	100DS	STAR DRAG	11.55
16	10A70	STAR DRAG SPRING	2.75
17	10A3U	STAR DRAG FIXING NUT	3.85
18	10J1N	STAR DRAG SPACER	1.65
19	109F5	DRIVE GEAR WASHER	1.65
20	100SE	SEATING WASHERS	1.10
21	10050	MECHANICAL BRAKE KNOB	9.35
22	10896	MECHANICAL BRAKE WASHER	1.10
23	1085F	MECHANICAL BRAKE WASHER	1.10
24	10R22	O-RING	1.65
25	1054D	BEARING RETAINING CLIP	1.10
26	105C3	BALL BEARING (3 X 10 X 4)	7.15
27	10LCY	FIXING BOLT	1.10
28	13YJU	BODY A ASSEMBLY	22.55
29	10F5C	ROLLER CLUTCH BEARING *Cannot be ordered	17.05
30	13UD1	ROLLER CLUTCH INNER TUBE	11.55
31	100BK	STAR DRAG PLATE	2.75
32	106XT	STAR DRAG WASHER	6.05
33	10TMZ	DRIVE GEAR	22.55
34	10CHF	STAR DRAG WASHER	6.05
35	10R6Z	STOPPER GEAR	6.05
36	100VZ	DRIVE GEAR SHAFT	11.55
37	10JDY	SPRING FOR WORM SHAFT GEAR	1.65
38	10HJG	WORM SHAFT GEAR PINS	1.65
39	10J47	WORM SHAFT GEAR	2.75
40	108WU	O-RING	1.65
41	10E23	FIXING BOLT	1.10
42	109T1	DRIVE GEAR SHAFT FIXING PLATE	2.75
43	105BP	BALL BEARING (5 X 9 X 3)	13.75
44	10G6D	WASHER	1.65
45	105NK	E TYPE STOP RING 2.5	1.10
46	13YJW	LEVEL WINDING GUARD	2.75
47	1055D	FIXING BOLT	1.65
48	10FJB	LEVEL WINDING RECEIVER	1.65
49	10CFU	WORM SHAFT PIN	1.10
50	10BHQ	WORM SHAFT PIN	2.75
51	108WQ	O-RING	1.65
52	10DZY	LEVEL WINDING ASSEMBLY	11.55
53	13YJK	WORM SHAFT GEAR C	2.75
54	10AEZ	WORM SHAFT PIN	1.10
55	10THG	WORM SHAFT	1.10
56	10DGT	LEVEL WINDING PIPE	1.10
57	100W4	PINION GEAR	11.55
58	100U9	CLUTCH YOKE SPRING	1.10
59	10TFA	CLUTCH YOKE	1.65
60	10LV0	FIXING BOLT	1.10
61	100US	CLUTCH CAM PUSH PLATE	3.85
62	100W0	CLUTCH CAM	2.75
63	10MQM	CLUTCH CLAW	3.85
64	10TMC	CLUTCH CLAW SPRING	1.65
65	13YJX	CLUTCH PLATE	4.95
66	10LF4	FIXING BOLT	1.10
67	10190	WASHER	1.65
68	10EX8	BALL BEARING (8 X 12 X 3.5)	13.75
69	10LCT	FIXING BOLT	1.65
70	10DJ8	BODY A SEAT	3.85
71	100RH	CLUTCH BAR GUIDE (B)	1.65
72	13YJM	CLUTCH LEVER	1.65
73	100QX	CLUTCH LEVER SEAT (A)	1.65
74	13YJY	FRAME	45.10
75	100UU	FIXING BOLT	1.10
76	100UV	FIXING BOLT	1.10
77	100UT	LEVEL-WIND GUIDE	1.65
78	10FJZ	WASHER	1.10
79	105NC	E TYPE RETAINING RING 2	1.10
80	10GQZ	CLICK SPRING	1.10
81	100R9	BODY B CAM LEVER	1.65
82	100BW	BODY B CAM LEVER PUSH PLATE	1.65
83	10TM7	O-RING	1.65
84	10P67	SPOOL CLUTCH PIN	1.65
85	13YJH	SPOOL ASSEMBLY	99.00
86	10LFN	FIXING BOLT	1.10
87	100WT	FIXING BOLT	1.65
88	13YNQ	B RECEIVING BASE ASSEMBLY	112.20
89	10T9T	SEAT METAL	1.10
90	100MF	BRACKET	2.75
91	10SDT	BRAKE DIAL	9.35
92	10012	CLICK SHILLING	1.65
93	10B94	BEARING SEAL	1.65
94	100Q2	BEARING RETAINING CLIPS	2.75
95	10EX5	SPOOL SHAFT CONTACT B	1.10
96	100Q5	SPOOL SHAFT CONTACT C	1.65
97	13YJZ	BODY B	11.55
98	13YJV	BODY B SET	168.30
PUNT	141H9	INSTRUCTION MANUAL EXPLODED VIEW SET (ACCESSORIES)	2.20
