[SHIMANO] Genuine Spare Parts for 18 Bantam MGL HG L Product code: 038586 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.83 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/3887

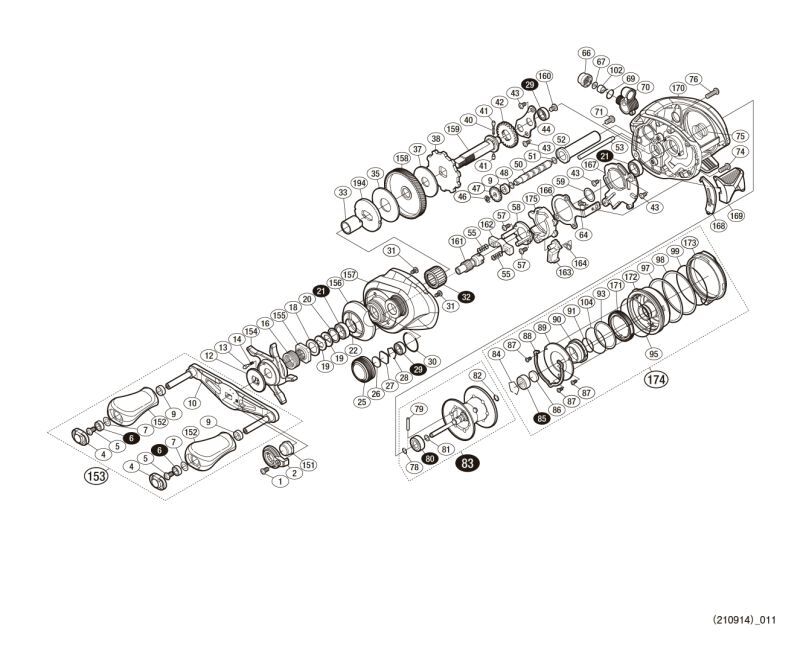

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "32 / ROLLER CLUTCH" and "79 / SPOOL CLUTCH PIN" and "80 / BALL BEARING" and "BSM1 / BRAKE SHOES", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	10R1Q	FIXING BOLT	1.65
2	10SSK	RETAINER	3.85
4	10FMM	HANDLE CAP	1.65
5	103E9	FIXING BOLT	1.10
6	104VX	BALL BEARING (4 X 7 X 2.5)	13.75
7	104FH	WASHER	2.20
9	10PXY	HANDLE GRIPPED BUSHING (B)	1.65
10	10TB7	HANDLE SHAFT ASSEMBLY	28.05
12	1007F	STAR DRAG CLICK PLATE	1.65
13	10B27	CLICK PIN	1.65
14	10988	CLICK SPRING	1.65
16	10A71	STAR DRAG SPRING	2.75
18	10J1N	STAR DRAG SPACER	1.65
19	10D60	MAIN GEAR WASHER (C)	1.65
20	105PW	STAR DRAG BEARING WASHER	1.10
21	10EX8	BALL BEARING (8 X 12 X 3.5)	13.75
22	1027V	O-RING	1.65
25	10060	MECHANICAL BRAKE KNOB	9.35
26	10896	MECHANICAL BRAKE WASHER	1.10
27	1085F	MECHANICAL BRAKE WASHER	1.10
28	1057X	EXTRACTION STOPPER	1.65
29	105BP	BALL BEARING (5 X 9 X 3)	13.75
30	108WK	O-RING SM14	1.65
31	1055D	FIXING BOLT	1.65
32	1005E	ROLLER CLUTCH *Cannot be ordered	17.05
33	10BN3	ROLLER CLUTCH INNER TUBE	6.05
35	1027W	STAR DRAG WASHER	9.35
37	10CJ1	STAR DRAG WASHER	3.85
38	10D6Y	STOPPER GEAR	6.05
40	10JDX	SPRING FOR WORM SHAFT GEAR	1.65
41	10HJG	WORM SHAFT GEAR PINS	1.65
42	10057	WORM SHAFT GEAR	2.75
43	10MT4	FIXING BOLT	1.10
44	1005S	DRIVE GEAR SHAFT FIXING PLATE	2.75
46	105NC	E TYPE RETAINING RING 2	1.10
47	10FNX	WORM SHAFT GEAR	2.75
48	10R3Z	WASHER	1.10
50	1006R	WORM SHAFT	9.35
51	10GFJ	WORM SHAFT GEAR	1.10
52	1005Z	LEVEL WINDING PIPE	1.65
53	1006J	LEVEL-WIND GUIDE	3.85
55	104BU	CLUTCH YOKE SPRING	1.10
57	10LVJ	FIXING BOLT	1.10
58	10F42	CLUTCH CAM PUSH PLATE	3.85
59	10G8C	WASHER	1.10
64	103C0	FIXING BOLT	1.10
66	10FJB	LEVEL WINDING RECEIVER	1.65
67	10CFW	ADJUSTMENT WASHER SET	1.10
69	108WQ	O-RING	1.65
70	100QL	LEVEL WINDING ASSEMBLY	34.10
71	10LZD	FIXING BOLT	1.65
74	101GQ	FIXING BOLT	1.65
75	10EZE	BB PUSH SPRING	1.65
76	103LN	FIXING BOLT	1.65
78	10TNF	O RING	1.65
79	10MD0	SPOOL CLUTCH PIN *Cannot be ordered	1.65
80	1005D	BALL BEARING (5 X 11 X 4) *Cannot be ordered	13.75
81	10GN1	WASHER	1.10
82	10EZ7	O-RING	1.10
83	10TB0	SPOOL ASSEMBLY (WITH BEARING)	112.20
84	10GEW	BEARING PULL-OUT STOPPER	1.10
85	10S37	BALL BEARING (3 X 10 X 4)	13.75
86	1057S	SPOOL SHAFT CONTACT (B)	1.10
87	1026U	FIXING BOLT	1.65
88	10TUC	CAM LEVER RETAINING RING	1.65
89	10TUB	BR DIAL FIXING PLATE	3.85
90	10TB6	BRAKE PIPE GEAR ASSEMBLY	17.05
91	10LA8	O-RING	1.65
93	1006Q	WASHER	1.65
95	108WZ	O-RING	3.85
97	10073	WASHER	1.65
98	10078	WASHER	1.65
99	1006P	O-RING	1.65
102	10211	WORM SHAFT PIN	2.75
104	10CG0	O-RING 19.5	1.65
151	100G5	HANDLE FIXING NUT	6.05
152	1032A	HANDLE KNOB	11.55
153	10TTP	HANDLE ASSEMBLY	84.15
154	1006K	STAR DRAG	11.55
155	10A0C	STAR DRAG FIXING NUT	2.75
156	1005Y	BODY A NAMEPLATE	13.75
157	1006D	BODY A	73.15
158	1021R	DRIVE GEAR	24.75
159	1007B	DRIVE GEAR SHAFT	22.55
160	10PVU	FIXING BOLT	1.65
161	1005X	PINION GEAR	17.05
162	10471	CLUTCH YOKE	1.65
163	105ZV	CLUTCH CLAW	3.85
164	10N1V	CLUTCH CLAW SPRING	1.65
166	1005B	CLUTCH PLATE	4.95
167	10062	BODY A SEAT	3.85
168	1007C	CLUTCH LEVER RECEIVER (B)	1.65
169	10TT3	CLUTCH BAR ASSEMBLY	9.35
170	100KC	FRAME ASSEMBLY	123.75
171	10055	BR KNOB	6.05
172	100QM	FRAME B RECEIVER ASSEMBLY	34.10
173	1005T	BODY B CAM LEVER	6.05
174	100QH	BODY B ASSEMBLY	78.65
175	10SKS	CLUTCH CAM	2.75
194	10D3J	STAR DRAG PLATE	2.75
BNKI	13WUA	EXPLODED VIEW (ACCESSORIES)	1.65
BSM1	1019F	BRAKE SHOES *Cannot be ordered	1.10
BST1	13SFU	BRAKE SHAFT *Cannot be ordered	1.10
OIL1	10LQ0	B-100 OIL (4.5G)	3.85
TRST	13VTF	INSTRUCTION MANUAL (ACCESSORY)	1.65
