[SHIMANO] Genuine Spare Parts for 12 ANTARES L Product code: 028365 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

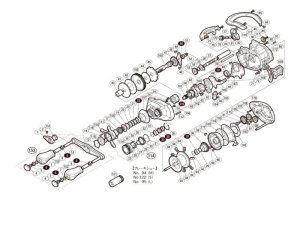

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "118 / ROLLER CLUTCH", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
*F01	13WHX	REEL BAG (ACCESSORY)	9.35
1	10Q5W	HANDLE RETAINER	6.05
2	103N8	FIXING BOLT	1.10
4	10AVV	HANDLE CAP	1.65
5	103E9	FIXING BOLT	1.10
6	104VX	BALL BEARING (4 X 7 X 2.5)	13.75
7	104FH	WASHER	2.20
9	109VL	KNOB FIXING SHAFT PIPE	3.85
10	109VE	HANDLE	34.10
12	10KXV	STAR DRAG CLICK PLATE RETAINER	1.65
14	10BT0	CLICK PIN	1.65
17	10A71	STAR DRAG SPRING	2.75
19	10J1N	STAR DRAG SPACER	1.65
20	10D60	MAIN GEAR WASHER (C)	1.65
21	105PW	STAR DRAG BEARING WASHER	1.10
22	10EX8	BALL BEARING (8 X 12 X 3.5)	13.75
24	103N4	FIXING BOLT	1.10
25	10KFU	MECHANICAL BRAKE KNOB	22.55
26	10CCX	SD KNOB NAMEPLATE	1.65
27	10C5Z	NAMEPLATE SHEET	2.75
28	10896	MECHANICAL BRAKE WASHER	1.10
29	1057S	SPOOL SHAFT CONTACT (B)	1.10
30	10L2F	MECHANICAL BRAKE KNOB CLICK PLATE	2.75
31	10L6Y	MECHANICAL BRAKE KNOB CLICK HOLDER	2.75
32	10GEW	BEARING RETAINING CLAMP	1.10
33	105C0	BALL BEARING (3 X 10 X 4)	13.75
34	10EYU	BEARING SPACER	2.75
35	105BP	BALL BEARING (5 X 9 X 3)	13.75
36	108W8	O-RING S-16	1.65
40	10BN1	ROLLER CLUTCH INNER TUBE	6.05
41	10D3M	STAR DRAG PLATE	2.75
42	10LN7	STAR DRAG WASHER	3.85
44	10CHZ	STAR DRAG WASHER	2.75
45	10D77	STOPPER GEAR	3.85
47	10J77	CROSS GEAR (A)	3.85
48	10MT2	FIXING BOLT	1.10
49	109T5	MAIN GEAR SHAFT FIXING PLATE	1.65
50	104JZ	BALL BEARING (5 X 8 X 2.5)	13.75
51	10C47	MAIN GEAR SHAFT WASHER	1.10
52	105NK	TYPE E RETAINING RING 2.5	1.10
53	10FP4	CROSS GEAR (C)	2.75
54	10G84	CROSS GEAR (C)	1.10
55	10NCZ	WORM SHAFT RECEIVER (A)	1.65
56	104ZN	WORM SHAFT	17.05
57	10NJH	LEVEL-WIND PIPE	6.05
58	10QSL	LEVEL-WIND ROD	2.75
60	104BU	CLUTCH YOKE SPRING	1.10
62	10LVH	CLUTCH CAM FIXING BOLT	1.10
63	10F43	CLUTCH CAM PUSH PLATE	9.35
66	1048C	CLUTCH CLAW BUSH	1.65
69	103C0	FIXING BOLT	1.10
71	103CG	FIXING BOLT	1.10
72	105NB	E TYPE CLAMPING RING 1.5	1.10
75	10MT8	FIXING BOLT	1.10
77	10MPR	MAIN UNIT A SEAT B FIXING BOLT	1.10
78	10FJD	LEVEL WINDING RECEIVER	3.85
79	10CFW	ADJUSTMENT WASHER SET	1.10
80	10FFW	WORM SHAFT PIN	2.75
81	108WQ	O RING	1.65
82	10NYQ	LEVEL WINDING ASSEMBLY	22.55
84	10LVD	FIXING BOLT	1.10
85	10LVL	FIXING BOLT	1.10
86	104SR	WORM SHAFT RECEIVING RING (B)	1.65
88	105NC	E TYPE RETAINING RING 2	1.10
89	10LUY	FIXING BOLT	1.10
90	108SK	WASHER	1.10
91	108Q2	BODY FRAME ATTACHMENT WASHER	1.10
93	10L7Q	SPOOL ASSEMBLY	101.20
94	1046M	BRAKE SHOE (M) RED	1.10
95	13RRU	BRAKE SHOE (L) BLACK	1.10
96	10EXU	BRAKE PIPE GEAR	9.35
98	10LVA	FIXING BOLT	1.10
100	104N6	BODY B CAM LEVER ADJUSTMENT WASHER	1.65
102	108F1	B RECEIVING KE ADJUSTMENT WASHER	1.10
103	10A6M	FIXING BOLT	3.85
105	10BGN	BR KNOB GEAR	1.65
106	10CLG	INTERMEDIATE GEAR	1.65
107	10B4Z	CLICK PIN	1.65
108	10B51	CLICK SPRING	1.10
110	10CFV	WASHER	1.10
111	10HHN	SLIDER WASHER (9 X 13 X 0.3)	1.65
112	10KNE	DAMPER SPRING	1.65
114	10HWE	MECHANICAL BRAKE KNOB ASSEMBLY	34.65
116	10988	CLICK SPRING	1.65
117	105EK	CLICK BUTTON WASHER	1.10
118	10F33	ROLLER CLUTCH *Cannot be ordered	22.55
119	10J26	STAR DRAG CLICK PLATE	1.65
121	10MDK	REEL WRENCH (ACCESSORY)	3.85
122	1046N	BRAKE SHOE (S) (ACCESSORY) WHITE	1.10
151	10FFJ	HANDLE FIXING NUT	6.05
152	1032A	HANDLE KNOB	11.55
153	10CFH	HANDLE ASSEMBLY	90.20
154	10AXA	STAR DRAG	28.05
156	10A0C	STAR DRAG FIXING NUT	2.75
157	10K0B	BODY A NAMEPLATE	2.75
158	10J38	BODY A ASSEMBLY	123.75
159	10CR9	DRIVE GEAR	28.05
160	105CY	DRIVE GEAR SHAFT	22.55
161	10CU6	PINION GEAR	22.55
162	10471	CLUTCH YOKE	1.65
163	10KSC	CLUTCH CAM	2.75
164	105ZV	CLUTCH CLAW	3.85
165	10N1V	CLUTCH CLAW SPRING	1.65
166	10QLQ	CLUTCH PLATE	4.95
167	10BVY	BODY A SEAT	3.85
168	1099C	CLUTCH LEVER RECEIVER (B)	1.65
169	10MXX	CLUTCH LEVER	9.35
170	10QH2	LEVEL WIND GUARD	9.35
171	104N8	THUMB REST	50.60
172	10JNS	FRAME	123.75
174	10BBX	BODY B CAM LEVER	1.65
175	10B22	BR KNOB	14.85
176	10HU5	BODY B ASSEMBLY	62.15
177	10FXY	FRAME B RECEIVER ASSEMBLY	11.55
BNKI	13WL3	EXPLODED VIEW (ACCESSORIES)	1.65
OIL1	10LQ0	B-100 OIL (4.5G)	3.85
TRST	13VJJ	INSTRUCTION MANUAL (ACCESSORY)	1.65
