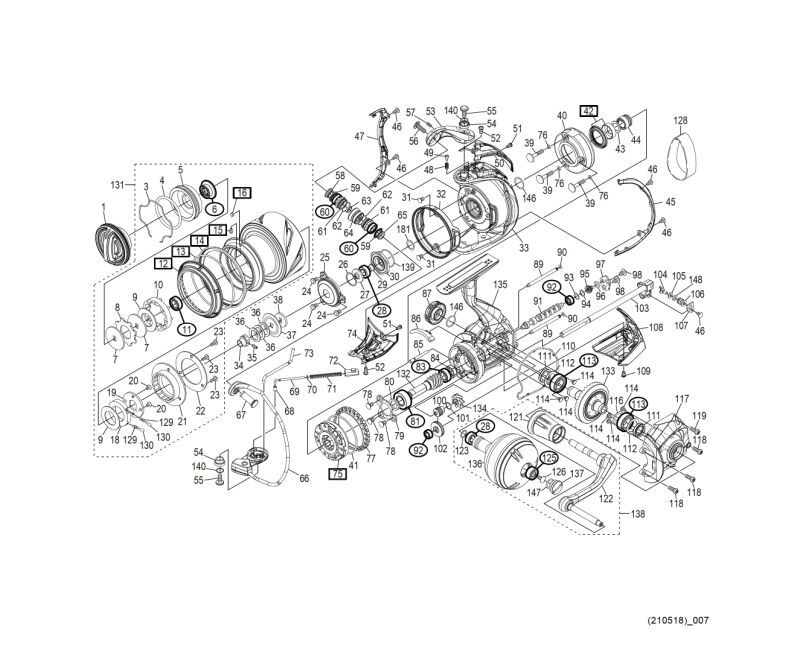

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
*Parts with square numbers are for repair only.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
*F01	13QRF	REEL BAG (ACCESSORY)	28.05
1	101WN	DRAG KNOB SET	45.10
3	10B88	STOPPER SPRING	1.65
4	108WC	O-RING SM26	1.65
5	10LWR	SPOOL BEARING SPACER	9.35
6	10NFD	SPOOL BEARING RECEIVER ASSEMBLY	22.55
7	10B9Z	OVAL WASHER	2.75
8	10BE8	EAR WASHERS	22.55
9	1031R	DRAG WASHERS	4.95
10	10AHH	SPOOL INSERT	3.85
11	104JT	BALL BEARING (6 X 10 X 3)	13.75
12	100L4	COLLAR *Cannot be ordered	11.55
13	1028L	O-RING *Cannot be ordered	1.65
14	101NE	RING *Cannot be ordered	22.55
15	10PVL	SET SCREW *Cannot be ordered	1.65
16	10EAG	PIN *Cannot be ordered	1.10
18	10JJU	OTOIDE KOBAN GUIDE	9.35
19	109HE	OTOE OVAL WASHER	3.85
20	10MGD	FIXING BOLT	1.10
21	10C1J	DRAG COVER	2.75
22	101N7	DRAG COVER NAMEPLATE	3.85
23	10MPR	BODY A SHEET B FIXING BOLT	1.10
24	10LZ2	FIXING BOLT	2.75
25	101P2	RETAINER	1.65
26	10G8C	WASHER	1.10
27	107F2	ROTATING FRAME BEARING SEAL	2.75
28	105BN	BALL BEARING (5 X 9 X 3)	13.75
29	100S6	ROTOR BEARING COLLAR	1.65
30	1080Y	ROTOR NUT	9.35
31	103LB	FIXING BOLT	1.10
32	10E3F	ROTOR FLANGE	9.35
33	10E30	ROTOR	67.65
34	10LTL	SPOOL SHAFT BEARING GUIDE	9.35
35	10PRL	SET SCREW (M2 X 5)	1.65
36	101DN	SPOOL WASHER	2.20
37	10RBU	MAIN SHAFT BEARING SEAL	3.85
38	1018N	SPOOL RECEIVER (A)	2.75
39	1015M	FIXING BOLT	1.65
40	10MHC	ROLLER CLUTCH SEAL COVER	2.75
41	108WZ	O-RING	3.85
42	10RR7	ROLLER CLUTCH SEAL ASSEMBLY *Cannot be ordered	17.05
43	10J2G	ROTOR WASHER	1.65
44	10667	ROLLER CLUTCH INNER	3.85
45	10E39	ROTOR GUARD (A)	2.75
46	10MT4	FIXING BOLT	1.10
47	10E3G	ROTOR GUARD (B)	2.75
48	1077Q	BAIL TRIP LEVER SOUNDING PIN	1.65
49	106ZD	SOUNDING PIN	1.65
50	10E3D	ARM CAM SPRING COVER	9.35
51	106ZG	FIXING BOLT	1.65
52	10CYU	FIXING BOLT	2.75
53	10E3A	ARM CAM	45.10
54	101NS	COLLAR	3.85
55	101NF	FIXING BOLT	1.65
56	10K46	FIXING BOLT	6.05
57	10PN1	SET SCREW (M2 X 3)	1.65
58	1016P	LINE ROLLER RECEIVER	6.05
59	1016K	LINE ROLLER SEAL	1.65
60	104W1	BALL BEARING (5 X 8 X 2)	9.35
61	1015Z	BUSH	1.65
62	1015L	O-RING	1.65
63	1014P	COLLAR	1.65
64	10DUT	LINE ROLLER	17.05
65	1014N	COLLAR	3.85
66	10RP0	BAIL ASSEMBLY	56.10
67	10Q3F	ARM FIXING SHAFT	9.35
68	10R2F	ARM SPRING GUIDE (A) COLLAR BUSH	1.65
69	101N5	ARM SPRING GUIDE (A)	3.85
70	101D9	ARM SPRING GUIDE (A) COLLAR	1.65
71	1028M	ARM CAM SPRING	1.65
72	10R2E	ARM CAM SPRING GUIDE (B)	2.75
73	101NG	INNER GERI LEVER	1.65
74	10E31	BAIL MOUNTING COVER	9.35
75	10QPK	ROLLER CLUTCH ASSEMBLY *Cannot be ordered	11.55
76	10LAD	O-RING	1.10
77	104FW	FRICTION RING	3.85
78	10ML2	FIXING BOLT	2.75
79	101NN	PUSH PLATE	3.85
80	1028S	WASHER	1.10
81	104Q6	BALL BEARING (7 X 14 X 5)	13.75
83	104JS	BALL BEARING (6 X 10 X 3)	13.75
84	101P0	BUSH	1.65
85	101MT	INTERMEDIATE GEAR SHAFT	2.75
86	101NL	INTERNAL GERI HIT	1.65
87	10DVQ	HANDLE SCREW CAP	22.55
89	101N9	SLIDER GUIDE	2.75
90	10JAB	O-RING	1.65
91	101NZ	WORM SHAFT	11.55
92	10PDA	BALL BEARING (3 X 6 X 2.5)	13.75
93	100CW	WASHER	2.20
94	10TK0	WASHER	1.65
95	1015D	BUSH	3.85
96	10TNF	O-RING	1.65
97	101NK	WORM SHAFT COVER	2.75
98	10E8M	FIXING BOLT	1.65
100	1028T	INTERMEDIATE GEAR (SMALL)	9.35
101	10160	BENDING WASHER	1.10
102	101N2	WORM SHAFT GEAR	9.35
103	10RQL	MAIN SHAFT ASSEMBLY	28.05
104	106VM	WORM SHAFT PIN	4.95
105	100XZ	WASHER	2.20
106	101NW	COLLAR	3.85
107	10HAF	WORM SHAFT PIN PUSH PLATE	1.65
108	10E3E	BODY GUARD	11.55
109	10RZ1	FIXING BOLT	3.85
110	101NX	BODY SEAL	3.85
111	101NM	BEARING SEAL	4.95
112	10BGE	WASHER	1.65
113	104PT	BALL BEARING (8 X 14 X 4)	13.75
114	1055G	FIXING BOLT	1.65
116	10DKJ	WASHER	2.20
117	10RTD	LID	45.10
118	10A6P	FIXING BOLT	1.65
119	10A6N	FIXING BOLT	1.65
121	10RTA	HANDLE SHAFT FLANGE	45.10
122	101HY	HANDLE	67.65
123	104FH	WASHER	2.20
125	10KX1	BALL BEARING (4 X 9 X 4)	13.75
126	103E9	FIXING BOLT	1.10
128	109UV	THREAD STOPPER BELT (S) (ACCESSORY)	6.05
129	10JMD	DRAG CLICK SPRING	1.65
130	1035W	SPOOL PIN	1.65
131	101MW	SPOOL ASSEMBLY	212.30
132	101MP	PINION GEAR	34.10
133	101NH	DRIVE GEAR ASSEMBLY	45.10
134	101MZ	INTERMEDIATE GEAR (LARGE)	9.35
135	101PC	BODY	157.30
136	101PQ	HANDLE KNOB	67.65
137	101NU	HANDLE CAP	6.05
138	10277	HANDLE ASSEMBLY	190.30
139	108WF	O-RING	1.10
140	10HV3	WASHER	1.10
146	108WA	O-RING	1.65
147	10LAB	O-RING	1.10
148	108W9	O-RING (3 X 5)	1.65
181	10S32	WASHER	2.20
BNKI	13R4Y	EXPLODED VIEW (ACCESSORIES)	1.65
ITOS	13QPZ	STOPPER SEAL	1.65
MH01	13NNN	NAMEPLATE ON THE BACK OF THE LEG	3.85
OIL2	10LQ1	SSRO-01 OIL (4.5G)	3.85
TRST	13PMG	INSTRUCTION MANUAL (ACCESSORY)	1.65
