[SHIMANO] Genuine Spare Parts for 18-19 STELLA 1000SSPG Product Code: 037961 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.77 - US$117.81 [Regular Price: US$1.10 - US$168.30]
Prices vary according to options.
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.
- Genuine Spool Purchase
* If you just want the genuine spool (No.9 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/3916

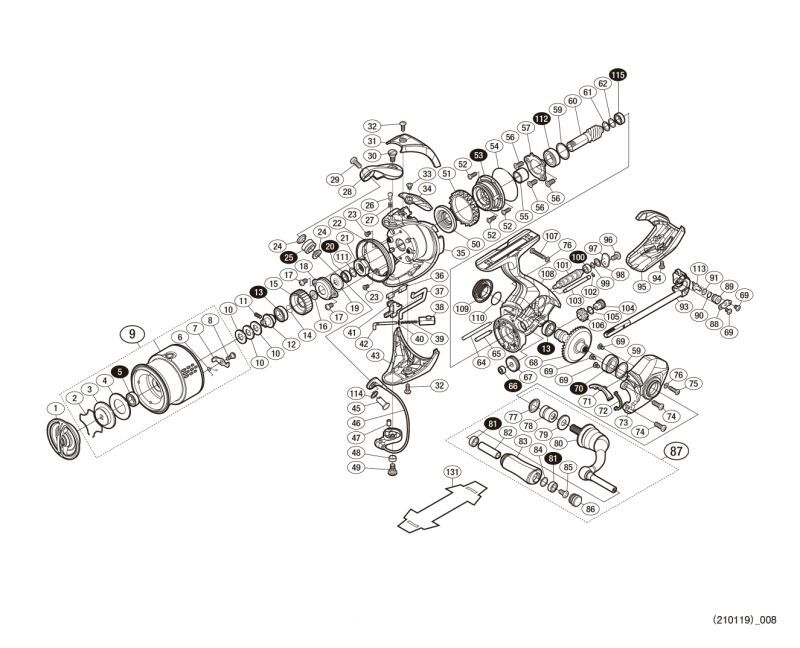

Reel Part's Schematic Diagram |
* Circled figures indicate bearings.
* As for the "53 / ROLLER CLUTCH ASSEMBLY", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.
No. | S Part No. | Description | Price (USD) |
*F01 | 10S19 | REEL BAG (ACCESSORY) | 12.65 |
1 | 1002K | DRAG KNOB SET | 101.20 |
2 | 10B6M | STOPPER SPRING | 1.65 |
3 | 10B9X | OVAL WASHER | 3.85 |
4 | 102ZF | DRAG WASHER | 1.65 |
5 | 104JT | BALL BEARING (6 X 10 X 3) | 13.75 |
6 | 10TNX | SPOOL PIN SPRING | 1.65 |
7 | 101Y3 | SPOOL PIN | 1.65 |
8 | 10A6F | FIXING BOLT | 1.65 |
9 | 13CFN | SPOOL ASSEMBLY | 134.75 |
10 | 10BU8 | SPOOL WASHER SET | 1.10 |
11 | 10PN2 | SET SCREW | 1.65 |
12 | 10DKF | MAIN SHAFT BEARING GUIDE | 6.05 |
13 | 104PP | BALL BEARING (7 X 11 X 3) | 13.75 |
14 | 107V2 | RATCHET SPRING | 1.65 |
15 | 10SYS | DRAG SOUNDING RATCHET | 2.75 |
16 | 103PE | SPOOL HOLDER | 1.65 |
17 | 103LB | FIXING BOLT | 1.10 |
18 | 1076P | RETAINER | 2.75 |
19 | 107L2 | ROTOR BEARING SEAL | 3.85 |
20 | 10TD2 | ROTOR BEARING COLLAR ASSEMBLY (WITH BEARING) | 17.05 |
21 | 101CY | ROTOR NUT | 9.35 |
22 | 10S28 | ROTOR FLANGE | 9.35 |
23 | 10DND | FIXING BOLT | 1.65 |
24 | 1020L | LINE ROLLER BEARING COLLAR | 2.75 |
25 | 101BJ | LINE ROLLER (WITH BEARING) | 39.60 |
26 | 106UX | CLICK PIN | 1.65 |
27 | 10024 | CLICK SPRING | 1.65 |
28 | 10S25 | ARM CAM | 7.15 |
29 | 10K40 | FIXING BOLT | 2.75 |
30 | 10027 | FIXING BOLT | 6.05 |
31 | 10S27 | ARM CAM SPRING COVER | 11.55 |
32 | 10CYU | FIXING BOLT | 2.75 |
33 | 10MPF | FIXING BOLT | 1.10 |
34 | 1001R | BALANCER GUARD | 11.55 |
35 | 10S22 | ROTOR | 101.20 |
36 | 10TDX | BAIL SPRING SEAT | 1.65 |
37 | 1002L | BAIL TRIP LEVER | 2.75 |
38 | 10R2E | ARM CAM SPRING GUIDE (B) | 2.75 |
39 | 105R7 | ARM CAM SPRING | 1.65 |
40 | 101D9 | ARM SPRING GUIDE (A) COLLAR | 1.65 |
41 | 10S24 | BAIL TRIP LEVER COVER | 1.65 |
42 | 10DJN | ARM SPRING GUIDE (A) | 3.85 |
43 | 10S29 | BAIL TRIP LEVER COVER | 17.05 |
45 | 10L02 | ARM FIXING SHAFT | 3.85 |
46 | 10T9Q | BAIL ASSEMBLY | 45.10 |
47 | 10DKC | ARM SPRING GUIDE (A) COLLAR BUSH | 1.65 |
48 | 101D0 | BAIL MOUNTING CAM COLLAR | 1.65 |
49 | 10S2M | FIXING BOLT | 6.05 |
50 | 101D5 | ROTOR COLLAR | 9.35 |
51 | 10DK7 | FRICTION RING | 3.85 |
52 | 101D7 | FIXING BOLT | 1.65 |
53 | 10S2L | ROLLER CLUTCH ASSEMBLY *Cannot be ordered | 12.65 |
54 | 10DKD | ROLLER CLUTCH GUIDE SEAL | 1.65 |
55 | 10DJY | ROLLER CLUTCH INNER | 3.85 |
56 | 10ML6 | FIXING BOLT | 1.65 |
57 | 10DJZ | BEARING PUSH PLATE | 2.75 |
59 | 101AY | WASHER | 2.20 |
60 | 13LAB | PINION GEAR | 20.35 |
61 | 10DJ1 | BEARING WASHER | 1.65 |
62 | 10HV4 | ADJUSTMENT WASHER | 1.10 |
64 | 10S2E | SLIDER GUIDE (A) | 3.85 |
65 | 10023 | INTERMEDIATE GEAR SHAFT | 3.85 |
66 | 10PC0 | BALL BEARING (2 X 5 X 2.5) | 13.75 |
67 | 10DK0 | WORM SHAFT GEAR | 9.35 |
68 | 13LGA | DRIVE GEAR | 39.60 |
69 | 1055G | FIXING BOLT | 1.65 |
70 | 104JD | BALL BEARING (7 X 13 X 4) | 13.75 |
71 | 10DJK | BAIL TRIP STRIKE | 1.65 |
72 | 10DKA | COVER FLANGE SEAL | 2.75 |
73 | 100P6 | FOOT ASSEMBLY | 56.10 |
74 | 10M2C | FIXING BOLT | 1.10 |
75 | 10LUY | FIXING BOLT | 1.10 |
76 | 10GD4 | WASHER | 1.10 |
77 | 10PXU | HANDLE SHAFT SEAL | 2.75 |
78 | 10022 | HANDLE SHAFT FLANGE (B) | 9.35 |
79 | 10FMF | HANDLE WASHER | 1.65 |
80 | 13E21 | HANDLE SHAFT ASSEMBLY | 78.65 |
81 | 104VX | BALL BEARING (4 X 7 X 2.5) | 13.75 |
82 | 1022F | KNOB FIXED SHAFT PIPE | 3.85 |
83 | 13MB2 | HANDLE KNOB | 28.05 |
84 | 104FH | WASHER | 2.20 |
85 | 103E9 | FIXING BOLT | 1.10 |
86 | 13MHA | HANDLE CAP | 6.05 |
87 | 13ER1 | HANDLE ASSEMBLY | 101.20 |
88 | 10HAG | WORM SHAFT PIN PUSH PLATE | 1.65 |
89 | 101BY | WORM SHAFT PIN COLLAR | 2.75 |
90 | 108W9 | O-RING (3 X 5) | 1.65 |
91 | 1059T | WASHER | 1.10 |
93 | 100P5 | MAIN SHAFT ASSEMBLY | 30.80 |
94 | 106ZG | FIXING BOLT | 1.65 |
95 | 10S1Z | BODY GUARD | 11.55 |
96 | 103LH | FIXING BOLT | 2.75 |
97 | 10ATB | WORM SHAFT COVER | 1.65 |
98 | 10TK0 | WASHER | 1.65 |
99 | 10HZ1 | WASHER | 1.10 |
100 | 10PDA | BALL BEARING (3 X 6 X 2.5) | 13.75 |
101 | 10S2A | WORM SHAFT | 11.55 |
102 | 10908 | O-RING | 1.65 |
103 | 10029 | SLIDER GUIDE (B) | 3.85 |
104 | 10021 | INTERMEDIATE GEAR (S) | 8.25 |
105 | 10TJT | WASHER | 1.65 |
106 | 13MPC | INTERMEDIATE GEAR (L) | 9.35 |
107 | 10RZ3 | FIXING BOLT | 1.65 |
108 | 13DC6 | BODY ASSEMBLY | 168.30 |
109 | 10S2S | HANDLE SCREW CAP | 17.05 |
110 | 108WA | O-RING | 1.65 |
111 | 1026J | WASHER | 1.10 |
112 | 1022A | BALL BEARING (7 X 13 X 4) | 13.75 |
113 | 106VK | WORM SHAFT PIN | 4.95 |
114 | 1002S | ARM FIXED SHAFT WASHER | 1.10 |
115 | 10RKR | BALL BEARING (5 X 8 X 2.5) | 7.15 |
131 | 10PBS | LEG PROTECTION SHEET (ACCESSORY) | 2.75 |
BNKI | 13R4M | EXPLODED VIEW (ACCESSORY) | 1.65 |
ITOS | 13QPZ | THREAD STOPPER SEAL | 1.65 |
LRKM | 13D1P | LINE ROLLER ASSEMBLY | 19.25 |
MH01 | 13NJ2 | NAMEPLATE ON THE BACK OF THE LEG | 2.75 |
TRST | 13PMG | INSTRUCTION MANUAL (ACCESSORY) | 1.65 |
W001 | 13LN9 | ROLLER CLUTCH INNER WASHER | 1.10 |
