[SHIMANO] Genuine Spare Parts for 23 ANTARES DC MD HG R Product code: 046000 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.97 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/5767

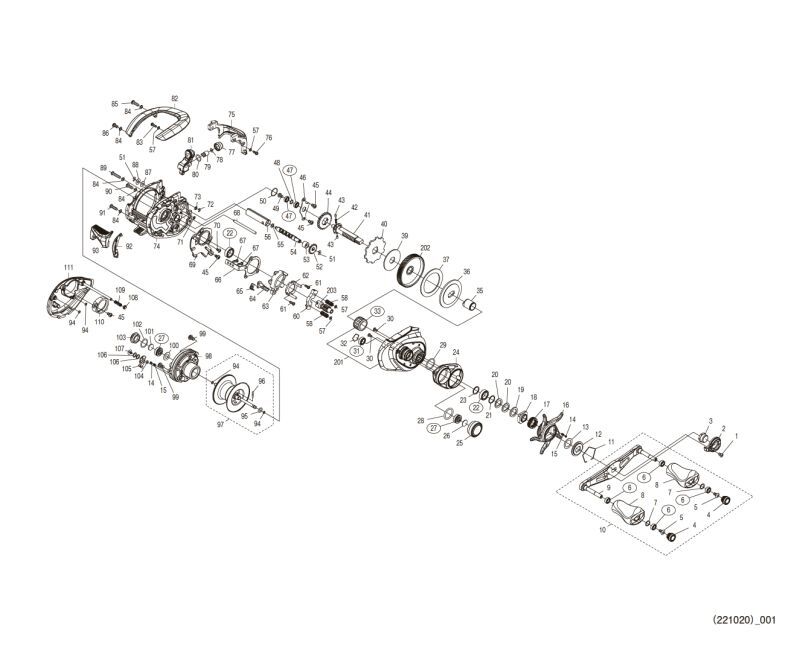

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "33 / ROLLER CLUTCH" and "96 / SPOOL CLUTCH PIN", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
*F01	13WNG	REEL BAG (ACCESSORY)	9.35
1	10R1Q	FIXING BOLT	1.65
2	1017T	RETAINER	3.85
3	13V4J	HANDLE FIXING NUT	8.25
4	13MBX	HANDLE CAP	8.80
5	103E9	FIXING BOLT	1.10
6	104VX	BALL BEARING (4 X 7 X 2.5)	13.75
7	104FH	WASHER	2.20
8	10SCX	HANDLE KNOB	11.00
9	13ZTD	HANDLE SHAFT ASSEMBLY	22.55
10	13ZTE	HANDLE ASSEMBLY	82.50
11	10KXV	STAR DRAG CLICK PLATE RETAINER	1.65
12	10J1Y	STAR DRAG CLICK PLATE	1.65
13	10HHM	SLIDER WASHER (9 X 13 X 0.2)	1.10
14	10B27	CLICK PIN	1.65
15	10988	CLICK SPRING	1.65
16	13V45	STAR DRAG	28.05
17	10A71	STAR DRAG SPRING	2.75
18	10A0B	STAR DRAG FIXING NUT	2.75
19	10J1N	STAR DRAG SPACER	1.65
20	10D60	MAIN GEAR WASHER (C)	1.65
21	105PW	STAR DRAG BEARING WASHER	1.10
22	10EX8	BALL BEARING (8 X 12 X 3.5)	13.75
23	13ZXU	STAR DRAG BEARING WASHER	1.10
24	13ZTP	MAIN UNIT A NAMEPLATE	12.65
25	13U93	MECHANICAL BRAKE KNOB	33.00
26	1057Q	SPOOL SHAFT CONTACT TALLY (B)	1.10
27	10S37	BALL BEARING (3 X 10 X 4)	13.75
28	10LA9	O-RING	1.65
29	1027V	O-RING	1.65
30	1055J	FIXING BOLT	1.65
31	105BP	BALL BEARING (5 X 9 X 3)	13.75
32	10R0Q	STOPPER	1.65
33	1005E	ROLLER CLUTCH *Cannot be ordered	17.05
35	10BN3	ROLLER CLUTCH INNER TUBE	6.05
36	10D3L	STAR DRAG PLATE	2.75
37	1071T	STAR DRAG WASHER	4.95
39	10CHZ	STAR DRAG WASHER	2.75
40	109BB	STOPPER GEAR	6.05
41	10T7U	DRIVE GEAR SHAFT	13.20
42	10JDX	SPRING FOR WORM SHAFT GEAR	1.65
43	10HJF	WORM SHAFT GEAR PINS	1.65
44	10057	WORM SHAFT GEAR	2.75
45	10DSZ	FIXING BOLT	1.10
46	13VAC	DRIVE GEAR SHAFT FIXING PLATE	1.65
47	10SAM	BALL BEARING (4 X 7 X 2)	13.75
48	13PKS	WASHER	1.10
49	10DR4	FIXING BOLT	1.10
50	10SZ4	O-RING	1.65
51	105NC	E TYPE STOP RING 2	1.10
52	10FNX	WORM SHAFT GEAR	2.75
53	13ZTS	WORM SHAFT BUSHING	1.65
54	13ZTK	WORM SHAFT	2.75
55	10GHF	WASHER	1.10
56	10NFW	LEVEL WINDING PIPE	1.65
57	13PKU	WASHER	1.10
58	13T1T	CLUTCH YOKE SPRING	1.10
60	13T1S	CLUTCH YOKE	1.65
61	10LVH	CLUTCH CAM FIXING BOLT	1.10
62	13UEP	CLUTCH CAM PUSH PLATE	3.85
63	10SX6	CLUTCH CAM	2.75
64	105ZU	CLUTCH CLAW	3.85
65	10N1Z	CLUTCH CLAW SPRING	1.10
66	13TD4	CLUTCH PLATE	2.20
67	101LH	FIXING BOLT	1.10
68	13ZTL	LEVEL WINDING GUIDE	2.75
69	13UF1	BODY A SEAT	1.65
70	100BD	FIXING BOLT	1.65
71	13PFS	WASHER	1.10
72	105NB	E TYPE STOP RING 1.5	1.10
73	10GA7	WASHER	1.10
74	13ZT3	FRAME ASSEMBLY	123.75
75	13ZTM	LEVEL WIND GUARD	6.05
76	101CN	FIXING BOLT	1.65
77	10FJB	LEVEL WIND GUARD	1.65
78	10T9Y	WASHER	2.20
79	10211	WORM SHAFT PIN	2.75
80	108WQ	O-RING	1.65
81	13ZT5	LEVEL WINDING ASSEMBLY	29.15
82	13ZTH	THUMB REST	57.20
83	10LVL	FIXING BOLT	1.10
84	13PKW	WASHER	1.10
85	13JXC	FIXING BOLT	1.10
86	13JRF	FIXING BOLT	1.10
87	10E7G	WASHER	1.10
88	10QW8	SEAT METAL	1.10
89	10RL4	FIXING BOLT	1.65
90	10LZD	FIXING BOLT	1.65
91	101GQ	FIXING BOLT	1.65
92	13TD5	CLUTCH BAR GUIDE	1.10
93	13ZT7	CLUTCH BAR ASSEMBLY	15.40
94	10E7H	O-RING	1.10
95	10TNF	O-RING	1.65
96	10MD0	SPOOL CLUTCH PIN *Cannot be ordered	1.65
97	13ZT6	SPOOL ASSEMBLY	112.20
98	13ZT1	B RECEIVING BASE ASSEMBLY	173.80
99	13JXD	FIXING BOLT	1.10
100	10B94	BEARING SEAL	1.65
101	1057S	SPOOL SHAFT CONTACT TALLY (B)	1.10
102	108WA	O RING	1.65
103	13LGC	LUBRICATION HOLE CAP B	5.50
104	10CFZ	O RING	1.65
105	13RNG	BODY B CAM LEVER	1.10
106	10210	WASHER	1.10
107	13AXA	FIXING BOLT	1.65
108	10RLZ	BODY B SHAFT GUIDE	1.65
109	10REG	DAMPER SPRING	1.65
110	13RNH	BRAKE DIAL NAMEPLATE	2.75
111	13ZSZ	BODY B ASSEMBLY	95.70
201	13ZT9	BODY A ASSEMBLY	112.20
202	10CRA	DRIVE GEAR	28.05
203	13SPK	PINION GEAR	22.55
BNKI	13ZTT	EXPLODED VIEW (ACCESSORIES)	1.65
SEAL	13X15	KC SEAL	1.10
TRST	13ZTG	INSTRUCTION MANUAL (ACCESSORY)	1.65
