[STUDIO Ocean Mark] DAIWA NO LIMITS Spool 4000 for 22-18 EXIST, 19 CERTATE, 21 LUVIAS AIRITY

NO LIMITS 22EX4000





22EX spool wearing NEW colors that correspond to 22 EXIST.
After the release of the 18EX, which corresponds to the 18 EXIST, several years ago, it received high praise for its drag and waterproof performance, especially for sea bass fishing.
This time, the 22EX4000 is introduced, matching the high quality coloring of the 22 EXIST without changing its high performance.


｜NO LIMITS 22EX4000S/T, 4000SS/S

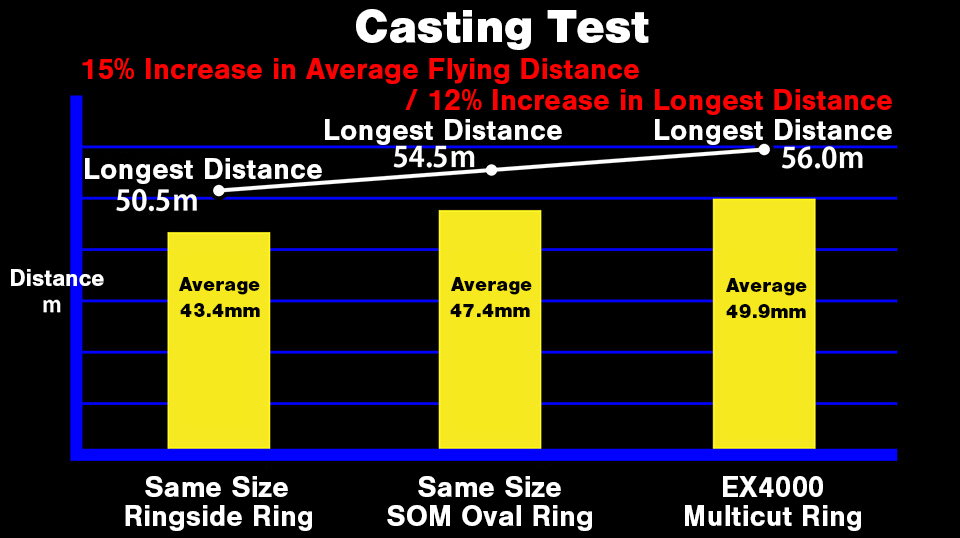

Multi-cut spool rings with a different flying dimension



A large variable cut surface has been introduced at the bottom of the spool ring while the taper angle of the spool ring is closer to that of distance-first throw reels.
The multi-cut surface slightly resists the ejected line immediately after casting, rectifying the ejected line and preventing casting problems.
In the mid to late stages of casting, the lure's casting speed slows down due to aerodynamic drag, and the line released from the spool has less momentum, and its loop expands to reduce contact with the variable cut surface.
Since the released line only touches the upper end of the spool ring, the tapered angle of low resistance results in minimal release resistance.


Absolutely Waterproof "Cassette Drag"



Flooding due to water landing on the reel is inevitable in sea bass fishing, especially while wading, and there is a risk of flooding even after washing the reel with water after use.
When flooded, the grease and water mix, causing emulsification, which results in drag operation problems.
With this EX spool, we have developed a structure that is more waterproof and also prevents flooding when wading.

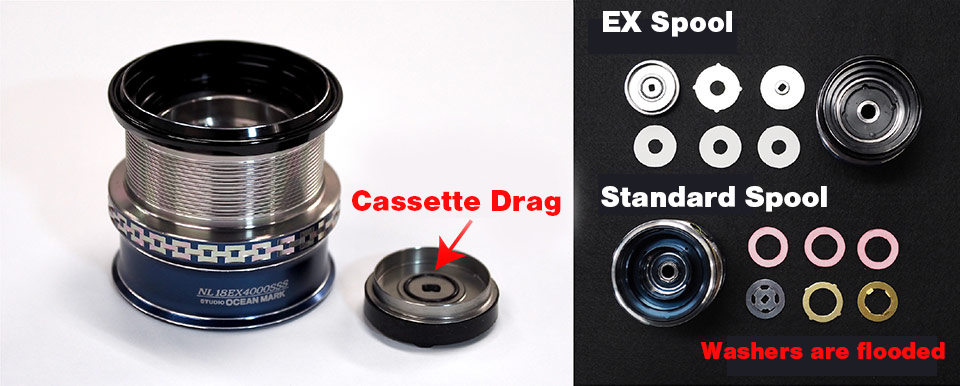

The photo shows the reel submerged in red colored liquid and the spool disassembled. Because the drag washers are sealed in grease by the cassette drag, there was no flooding of the washers even when the reel was submerged.


Two Drag Tuning [T/Tough] [S/Soft]

Tough tuning for thicker lines with a sticky element in the sliding characteristics for powerful hooking and fighting.
Soft tuning for quick initial action on thin lines and flat drag slip for delicate fighting.
T and S are characterized by different felt materials and grease viscosities, with the 4000S model set for T tuning and the 4000SS model for S tuning.


Traditional and Innovative Design「KIRIKO-CHIDORI」



Thin-wall processing is now possible, making the spool skirt section lighter.
STUDIO Ocean Mark is even more concerned with design, and has focused on faceted work, which uses a rotating whetstone on crystal glass to create various fascinating patterns.
KIRIKO-CHIDORI expresses the beauty of this traditional technique with an innovative processing approach.
KIRIKO is truly faceted and CHIDORI represents a staggered pattern.

The reel in the photo is 18 EXIST.


Spec

* Strength design is in accordance with the notation PE line.
Please note that the use of nylon line, PE line with a large elongation ratio, or ultrafine PE line may deform the spool body.

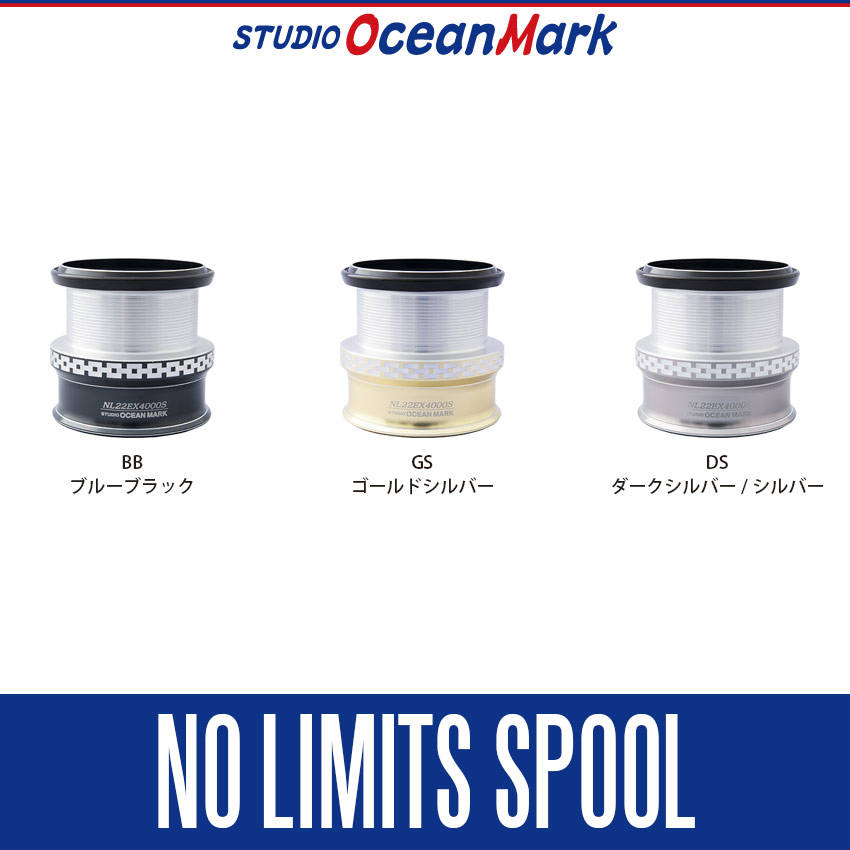

Lineup / Color




Installation Example



Model: 22 EXIST 4000XH
Spool: NO LIMITS 4000S/T Color DS
Handle Knob: HN AC33/S Color DS
