[STUDIO Ocean Mark] Baitreel Custom Handle AE series
Our Selling Price: US$80.85 - US$88.55 [Regular Price: US$115.50 - US$126.50]
Prices vary according to options.
AE100/A11098, AE85/A9885
Large bait handles also powered up with BHL series update
AE Handle
AE stands for AirEgg, and the concept is a hollow Air structure and plain egg shape.
Although the design/materials have been revised with each model, the design has remained constant and has gained tremendous support from anglers.
Aluminum Cap Aluminum cap with excellent vibration transmission combined with high-hardness EVA material, and a handle stand that stands at an exquisite angle.
The combination of these components has achieved a high level of ease of grip, ease of application of force, and resistance to fatigue and slippage.
Aluminum Arm
This New arm was developed at the same time as the high-power BHL80.
The A11098 is 5 mm longer than the BHL120 to further increase reeling power, with mid- to deep-sea conditions in mind.
The A9885 is also 3 mm larger than the BHL50 and is compatible with the latest techniques.
To accommodate the longer arm, the material is extruded and forged from 6063N aluminum alloy for increased strength.
Three additional long grooves are machined on the front of the arm to add structural strength.
OL80 Oilless Plastic Bushing
One answer in pursuit of maintenance-free performance is to choose not to use ball bearings.
OL80 is the first material used in the fishing tackle industry to withstand high loads and maintain basic performance for a long period of time even when exposed to seawater, rather than ultra-fine rotational performance.
Polyacetal, a reinforced plastic, contains filling oil dispersed in the resin and is processed into bearing size after being formed into bars.
The image of oil components seeping out of the material allows for no-lubrication, no-maintenance operation.
Arm Base
The handle shaft hole is made of high-strength stainless steel and fitted to reels of various manufacturers.
The arm base on which it is mounted is a L size that can be attached to an osier jigger.
Marfix arm bases are also available separately.

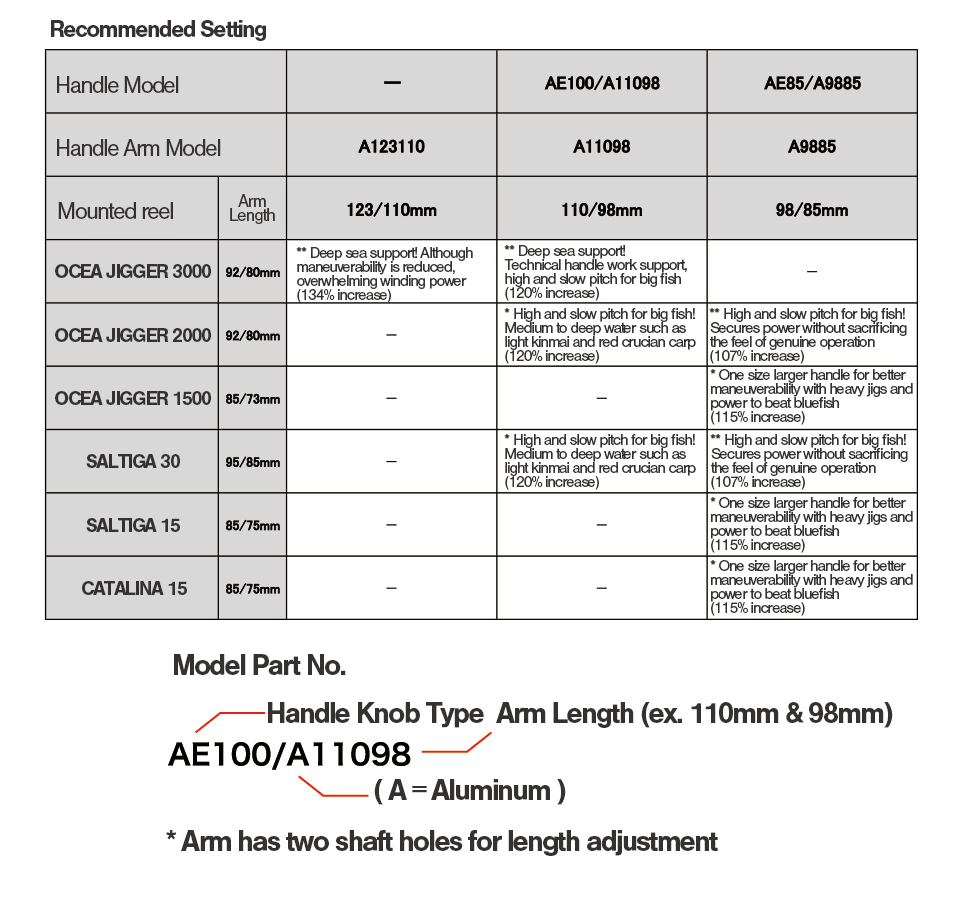

A123110, A11098, A9885
Utilizing the genuine knob, the arm length has been increased for easier use.
Three Sizes Available
123mm long arm to challenge deep sea, 110mm long arm to best match for big fish and mid-depth sea, and 98mm arm to further power up mid-sized baits. 98mm arm to further power up medium-sized baits.
High Strength Rivet
The rivets installed are SHIMANO B type.
DAIWA L type knobs can also be installed with the attached parts.
Spec
Item | Knob Color | Arm Color | Weight | Knob Design | Arm Length | ||
Knob and Handle Arm set |
AE100/A11098[L] | RB (ROYAL BLUE) WR (WINE RED) S (SILVER) BB (BLUE BLACK) |
Knob Color RB/WR/S are Silver |
108g | EVA AE100 |
110mm | 98mm |
\16,000 |
AE85/A9885[L] | Knob Color BB is Shot Titanium |
95g | EVA AE85 |
98mm | 85mm |
\15,000 | ||
Handle Arm Only | HANDLE ARM A123110[L] |
S(SILVER) | 59g | 123mm | 110mm |
\11,500 | ||
HANDLE ARM A11098[L] |
55g | 110mm | 98mm |
\11,000 | ||||
HANDLE ARM A9885[L] |
51g | 98mm | 85mm |
\10,500 |

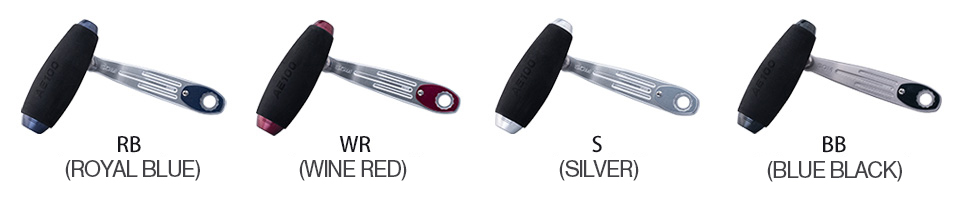

Color
Accessories
M8 Nuts (for right and left handle), Adjusting Washers
* Accessories may vary depending on the type.
Compatibility
* SHIMANO and DAIWA M8 groups can be installed.
SHIMANO
OCEA CALCUTTA [13] 300HG/301HG
OCEA CONQUEST LIMITED [19] 300HG/301HG, 300PG/301PG, 400HG
OCEA CONQUEST CT [18] 300HG/301HG, 300PG/301PG
OCEA CONQUEST [16] 300PG/301PG
OCEA CONQUEST [15] 300HG/301HG
OCEA JIGGER [20] 4000, 4000HG
OCEA JIGGER [17] 1000HG/1001, 1500HG/1501, 1500PG/1501, 2000NRHG/2001, 2000NRPG/2001
OCEA JIGGER [16] 3000HG
OCEA JIGGER [11] 1000HG/1001, 1500HG/1501, 1500PG/1501, 2000NR-HG/2001, 2000NR-PG/2001
OCEA JIGGER [03] 2000NR
OCEA JIGGER FC [19] 1000HG/1001, 1500HG/1501, 2000NRHG/2001, 3000HG
OCEA JIGGER LIMITED [14] 1500HG/1501, 3000HG, 3000PG
CALCUTTA CONQUEST [15] 300/301, 400/401
CALCUTTA CONQUEST [18] 300/301, 400/401
CALCUTTA CONQUEST [10] 200TypeJ-HG/201, 200TypeJ-PG, 300TypeJ-HG
CALCUTTA CONQUEST [06] 300TypeJ, 300TypeJ-M
GRAPPLER [17] 300HG/301HG
BeastMaster EJ [20] 1000EJ, 2000EJ
BeastMaster [18] 2000
BeastMaster [16] 3000XP, 3000XS
BeastMaster [14] 6000, 9000
BeastMaster [13] 3000
ForceMaster [21] 1000
ForceMaster [18] 600, 600DH
ForceMaster [16] 1000, 2000, 800
ForceMaster [15-17] 3000, 3000XP
ForceMaster [15] 300DH/301DH, 9000
ForceMaster [14] 4000, 6000
ForceMaster [13] 400/401, 400DH/401
ForceMaster [12] 2000MK, 3000MK, 9000
ForceMaster [11] 1000MK, 800MK
PLAYS [17] 1000, 4000, 800
PLAYS [16] 3000, 400
PLAYS [13] 3000
PLAYS [12] 1000, 800
PLEMIO [12] 3000
電動丸-DENDOMARU [11] 3000 完全フカセ SP-KANZEN FUKASE SPECIAL, イカ SP-IKA SPECIAL
電動丸-DENDOMARU [10] 3000 BeastMaster MUTEKI, 3000 完全フカセ SP-KANZEN FUKASE SPECIAL, 400CPLAYS, 9000 BM ZB
電動丸-DENDOMARU [09] 400C, PLAYS4000
電動丸-DENDOMARU [08] 3000XH, PLAYS3000
DAIWA
It's ICV 150R/L, 150WR/L, 200R/L
CATALINA [19] 15H
CATALINA BJ [16] 100H/L, 100P-RM/L, 100SH/L, 200SH/L
SEABORG [21] 300J/L
SEABORG LTD 200J/L, 300J/L, 500J
SEABORG [15] 200J/L
SEABORG 1000MT, 1200MJ, 150J/L, 150J-DH/L, 200J/L, 200J-DH/L, 200J-SJ/L, 270MM, 300J/L, 300MJ/L, 400MM, 500AT, 500FT, 500J, 800J, 800MJ, Z500MM
SPARTAN MX IC [18] 150H/L, 200H/L
SALTIGA IC[21] 100/L, 100P-DH/L, 300/L, 300H-SJ/L
TATULA HLC [15] 7.3R-TW/L, 8.1R-TW/L
TIERRA A IC[21] 150-DH/L, 150H/L, 150H-DH/L
HYPER TANASENSOR 250F, 300F, 400F, 500F
BLAST BJ TW [18] 150SH/L
Blue Backer BAY AREA 200BB
MILLIONAIRE BAY CASTING SP 103/L
MILLIONAIRE BAY AREA SP 100/L
MILLIONAIRE BASARA [15] 100H/L, 100SH/L, 200H/L
MILLIONAIRE SW 103/L
MILLIONAIRE CV-Z 103/L, 105/L
LEOBRITZ [14] 400
LEOBRITZ 150, 150J/150J-L, 300J, 300MT, 400, 500MT, 750MT, S400, S500
紅牙-KOHGA IC [21] 150/L, 150H/L, 150P/L
紅牙-KOHGA [14] 100/L
紅牙-KOHGA ICS [13] 103/L
鏡牙-KYOHGA 100SH/L
* 15 SALTIGA and other bolt types require special bolts separately.
