[Avail] SHIMANO Star Drag SD-22ALD for 22 ALDEBARAN

Model

SD-22ALD


Description


(Left: SD-22ALD, Right: Genuine Drag)

Avail original star drag for 22 ALDEBARAN.
The shape is compatible not only with the genuine handle but also with offset handle LT, STi2, and STi2.5.
The genuine star drag is made of resin, but the use of aluminum alloy improves the texture.



See the figure above.
The arm is designed to be longer than that of the genuine part. It is easier to wind up dandruff with the middle finger or the like while palming.
Although the weight will increase, the functionality has been improved.






The appearance is sharper than that of genuine parts.

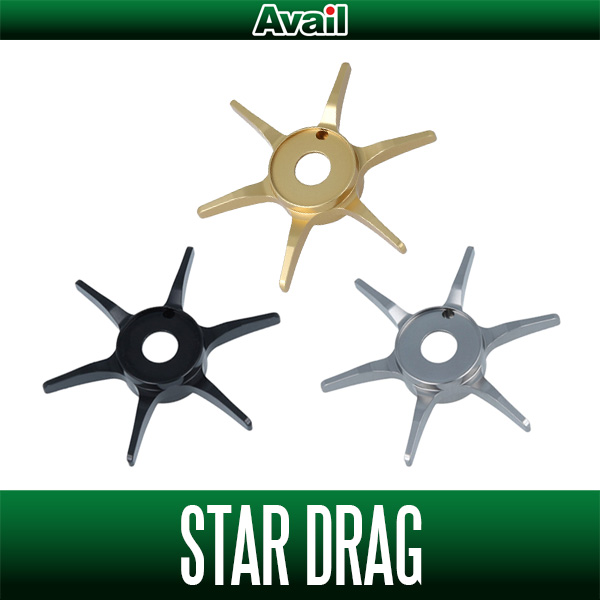

Color


SD-22ALD-BLK Black


SD-22ALD-GMT Gunmetal


SD-22ALD-CGLD Champagne Gold


Spec

Basic Specifications

Material
Aluminum alloy (super duralumin)

Weight
SD-22ALD: 6.7g
Genuine Drag: 3.8g

Arm Length
SD-22ALD: 28.5mm
Genuine Drag: Approx. 27mm

Compatibility
22 ALDEBARAN BFS
(HG RIGHT, HG LEFT, XG RIGHT, XG LEFT)


How to use



Remove the retainer and handle nut, and remove the handle.
The genuine parts are then removed and transplanted as shown above.
* Please be careful not to lose each component.




It would be better to port the star-drag sounding board after the star-drag is installed.




When installing the drag, adjust the star drag fixing nut so that it is parallel to the end face of the handle shaft as shown above.




Adjust and install the star drag so that the end faces of the square holes on the back side of the star drag are parallel to the end faces of the star drag fixing nut.




The end faces of the square holes on the back of the star drag and the end face of the star drag fixing nut are overlapped and installed as shown in the figure above.
*Please be careful not to forget to install the star drag spring between the star drag fixing nut and the star drag.




After installing the handle and other parts, the replacement with Avail star drags is complete.
