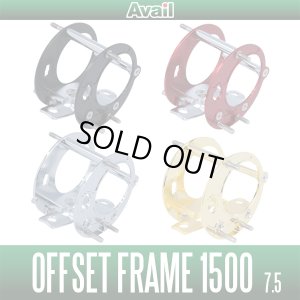

[Avail] Abu Offset Frame 7.5 for Ambassadeur 1500C series

Description



Aluminum offset frame 7.5 for Abu Ambassadeur 1500C

Offset frame for Abu Ambassadeur 1500C.
By offsetting the reel foot upward, excellent palming performance has been achieved when attached to the rod.
It will change to a position that is easy for those who have been difficult to get around and those who have small hands.

In addition, it is possible to significantly reduce the weight compared to genuine products.



Reel:Ambassadeur 1500C(811000)
Avail products mounted on reels
Aluminum offset frame 7.5 for Abu Ambassadeur 1500C BLACK
Pure handle S 70mm BLACK
Retainer 9-10mm BLACK
Handle Lock Nut M8 for ABU RIGHT BLACK
S size POM Knob BLACK
GM Handle Knob Cap Unflanged type BLACK
ULTRA LIGHT LEVEL WINDER 25C 11 line type BLACK
Microcast Spool AMB1520R BLACK
Mechanical Brake Knob 2500C SILVER
#5152 COGWHEEL Bearing Model BLACK
Hi Speed Gear Set 1500C
#13462 PINION BUSHING BB KIT
Aluminum Worm Shaft 2BB model CHROMIUM
CARBON CLOTH DRAG WASHER F type


Image when rod is attached
(The reel in the picture is 2500C.)

Before

2500C Silver: Genuine Frame installed

After

2500C Green: Aluminum Offset Frame 7.5 installed


Color
Aluminum offset frame 7.5 for Abu Ambassadeur 1500C

BLACK


RED


CHROME


GOLD-PLATED



Spec

Basic Specifications

Material
Side plate,Foot,Bar:Side plate,Foot,Bar:Aluminum alloy
Post:Titanium 64 alloy
Fixing screws:Stainless

Weight
Aluminum offset frame 7.5 for 1500C:27.5g
Genuine frame 1500C:52.0g (Foot number:811000)
Might be different depending on the model.

Offset Amount
7.5mm

Compatibility
Abu Ambassadeur
for 1500C:1500C,1500CDL,150PLUS
* Both IAR and non-IAR are compatible.
* Not compatible with thumb bar models such as 1600C and 2600C.


About The Product



Aluminum offset frame 7.5

The screws on the fixed part of the reel foot and the fixed part of the thumb bar may come loose due to use.
Check regularly to see if it is loose, and if it is loose, retighten it.
The size of the tool is No. 2 of a Phillips screwdriver for the foot part and M2 size of a hexagon wrench for the thumb bar part.

Depending on the shape of the reel seat, it may interfere with the reel seat if it cannot be installed or if it is loosely installed.
(Because the width is narrower than 2500C, we think that there are many reel seats that cannot be attached.)
If the installation is loose, use a thick vinyl tape on the back of the foot.
Since there are innumerable reel seats, many unconfirmed ones may not fit.
